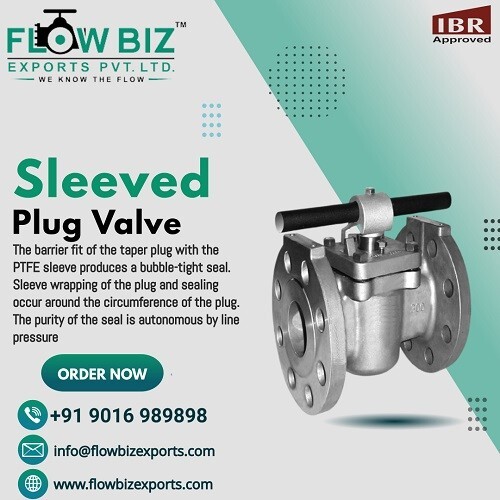

Sleeved Plug Valve Manufacturer in Vadodara, India

FlowBiz High-Performance Sleeved Plug Valves: Advanced Cavity-Free Isolation

In challenging process environments, the accumulation of media residue inside valve body cavities can lead to premature seal failure, product contamination, and mechanical binding. FlowBiz Exports Pvt. Ltd. addresses these operational hazards directly with our premium line of Sleeved Plug Valves. Engineered for absolute bubble-tight shutoff and maintenance-free longevity, these valves position FlowBiz as a leading engineering choice across India.

Unlike conventional valves, a sleeved plug valve features a high-performance PTFE sleeve that completely surrounds the internal cylindrical plug. This unique configuration creates a continuous, cavity-free internal envelope, leaving no dead space where particulate matter or process fluids can settle. Operating with a straightforward manual quarter-turn 90-degree angle action, these non-lubricated valves are the industry standard for clean, uncompromised line isolation.

Technical Specifications & Parameters

Key Features & Structural Advantages

1. Robust, Bi-Directional In-Line Sealing

FlowBiz sleeved plug valves provide high-integrity, independent sealing both upstream and downstream simultaneously. The massive surface area of the PTFE sleeve ensures a uniform distribution of sealing pressure, providing reliable bi-directional flow isolation regardless of process line orientation.

2. Cavity-Free & Maintenance-Free Design

Traditional ball valves feature internal cavities that trap media when the valve is cycled. Our sleeved plug design is entirely cavity-free, making it impossible for trapping or scaling to occur. Because the sleeve is self-lubricating, the valve remains completely non-lubricated and maintenance-free, eliminating the risk of process contamination from greases or sealants.

3. Fugitive Emission Protection

Outfitted with a specialized, low-emission stem seal array, the valve provides fully adjustable external sealing. This redundant seal stack retains volatile vapors inside the pipeline, preventing hazardous environmental emissions.

Optional Firesafe Engineering: For high-risk industrial facilities, our sleeved plug valves can be built and certified Firesafe per API 607 standards, ensuring full sealing integrity even after exposure to extreme thermal events.

Strategic Supply Network: Quick Quotes for Pune and Vadodara

Whether you are upgrading an existing municipal water infrastructure or configuring a complex chemical blending line, FlowBiz Exports Pvt. Ltd. provides rapid processing and optimized logistical turnarounds. We cater extensively to the industrial sectors of Pune, Vadodara, and major manufacturing hubs nationwide. Contact our sales and engineering desk today to receive a technical evaluation and a competitive, fast quotation for your exact project bill of materials.

Frequently Asked Questions (FAQs)

Q: How do sleeved plug valves prevent internal fluid stagnation in industrial systems?

A: Standard valves contain internal pockets or cavities where fluid can pool and stagnate when the valve is closed. A sleeved plug valve uses a solid PTFE sleeve that completely fills the empty space between the valve body and the rotating plug. Because there are no dead zones or cavities, media passes smoothly through the port without leaving behind residue, preventing localized corrosion and product degradation.

Q: What explicit benefits does a carbon steel body provide for water utility control?

A: Carbon steel provides exceptional mechanical durability and high impact resistance, allowing the valve body to absorb sudden hydraulic shock loads and thermal expansions without cracking or leaking. When paired with our high-grade internal PTFE sleeve and protective external silver finish, the valve remains completely shielded against both internal erosion and external atmospheric rust.

Q: When should an engineer choose a sleeved plug valve over a conventional ball valve?

A: A sleeved plug valve is the ideal choice when your system handles media that crystallizes, carries fine particulates, or demands frequent on-off cycling with a zero-leakage requirement. Ball valves will trap particulates within their seat cavitiesleading to torn seals and seized stemswhereas the wiping action of a plug valve across a continuous sleeve cleans the sealing surface during every cycle.

Q: How does the standard flange-type connection support overall facility performance?

A: A flange-type connection uses a multi-bolt layout that mechanically clamps the valve to adjacent piping. This distributes operational stresses uniformly across the joint, preventing pipeline deflection. Furthermore, it allows maintenance technicians to safely unbolt, inspect, or swap out the valve without cutting or altering the surrounding pipe framework, keeping facility downtime to an absolute minimum.

Q: What does the quality control and manufacturing process look like at FlowBiz?

A: The process begins with strictly verified carbon steel castings that undergo ultrasonic testing for internal flaws. Each component is precision machined using automated CNC equipment to ensure exact dimensional tolerances. Following the assembly of the self-lubricating sleeve and plug, every finished valve is subjected to high-pressure pneumatic and hydrostatic shell and seat tests to confirm zero-leakage compliance before receiving its final protective silver finish.
