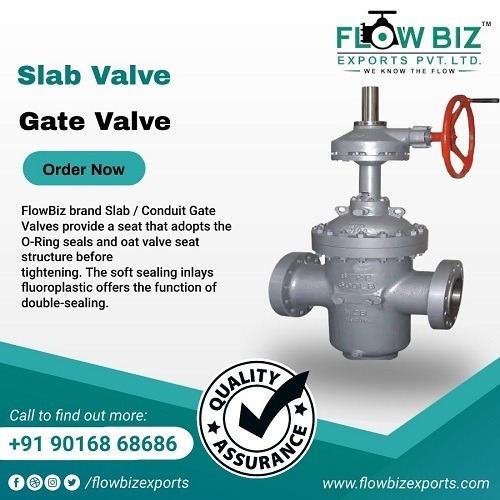

API 6D Through Conduit Slab Gate Valve Manufacturer in India

FlowBiz API 6D Through Conduit Slab Gate Valves: High-Pressure Pipeline Isolation

Managing primary water headers, main distribution lines, and industrial process pipelines requires heavy-duty valves that offer absolute zero-leakage isolation and negligible fluid resistance. FlowBiz Exports Pvt. Ltd. fulfills this high-pressure requirement with our premium API 6D Through Conduit Slab Gate Valves (commonly classified as 6D Gate Valves). Engineered for large-scale utility manifolds and transmission grids, these full-port valves leverage pipeline dynamics to establish an unyielding, bubble-tight mechanical barrier.

The defining characteristic of our through-conduit slab gate valve is its single, solid parallel gate with a circular port window. When fully opened, the port aligns perfectly with the valve bore, creating a continuous, smooth, and uninterrupted flow path. Because the internal diameter matches the pipe system exactly, the passing water encounters virtually zero boundary friction. This full-bore geometry keeps pressure drop P near zero, prevents fluid turbulence, and allows for seamless pipeline pigging operations.

Technical Specifications & Engineering Standards

FlowBiz through-conduit valves are designed, manufactured, and validated to meet the worlds most stringent oil, gas, and high-pressure water pipeline criteria.

The Pressure-Assisted Sealing Principle

Unlike standard wedge gate valves that rely entirely on brute manual torque to force a disc into a tapered pocket, the FlowBiz API 6D Slab Gate Valve utilizes a smart floating seat mechanism driven by line pressure.

1. Low-Pressure Spring-Assisted Sealing

Inside the valve body, heavy-duty internal springs are positioned behind the upstream and downstream seat rings. In low-pressure conditionsor when the pipeline is completely depressurizedthese springs exert continuous, gentle mechanical force, pushing the floating seats firmly against the flat parallel gate to establish an immediate, low-pressure barrier.

2. High-Pressure Line-Assisted Sealing

When a high differential pressure P  occurs across the closed valve, the oncoming fluid pressure pushes the solid slab gate downstream. This force presses the gate face tightly against the downstream seat ring. The greater the line pressure, the tighter the mechanical seal becomes, achieving an absolute, bubble-tight barrier that prevents drop-by-drop bypass.

3. Continuous Self-Cleaning Action

Because the floating seats maintain continuous contact with the flat slab gate throughout its entire open-to-close travel path, they function as mechanical scrapers. Every time the valve cycles, the seats wipe away lime scale, sediments, and organic particulates from the gate surface, preventing debris from collecting in the bonnet and ensuring long-term seat health.

Strategic Manufacturing and Stringent Quality Assurance

Operating as a premier Indian manufacturer, trader, and exporter, FlowBiz Exports Pvt. Ltd. never compromises on material density or dimensional accuracy. Our integrated production matrix includes:

• Precision Engineering: High-grade iron and steel are poured in certified foundries, followed by computerized CNC machining to eliminate micro-tolerances.

• Flange Type Integration: Standard ANSI/ASME flanged connections ensure independent, secure multi-bolt mounting that distributes pipeline bending stresses evenly.

• Rigorous Validation: Every single 24-inch valve undergoes non-destructive examination (NDE), mandatory hydrostatic shell testing, and dual-direction pneumatic seat checks to verify true zero-leakage performance before site dispatch.

Frequently Asked Questions (FAQs)

Q: Why is an API 6D through-conduit gate valve preferred over a standard cast iron wedge gate valve for main pipelines?

A: Standard wedge gate valves have an open cavity at the bottom where the wedge sits. In large-scale water systems, suspended sand, scale, and debris drop into this bottom pocket, packing tightly over time and preventing the valve from closing completely. A through-conduit slab gate valve has a continuous, smooth pipe-like channel with no open pocket at the base. Debris cannot become trapped inside the body housing, ensuring a reliable, bubble-tight shut-off every time.

Q: What is the benefit of specifying NACE MR0175 compliant nuts and studs for water distribution networks?

A: Industrial water systems, brackish water lines, and chemical processing facilities often carry dissolved hydrogen sulfide HS or operate in high-humidity environments that trigger localized stress corrosion. Fasteners meeting NACE MR0175 (2015) standards undergo specialized thermal treatment to maximize ductile strength, ensuring the valve bolts will not suffer sudden, brittle cracking under high pressure or environmental stress.

Q: What is the step-by-step process for installing a 24 -inch flanged slab gate valve?

A: 1. Confirm the valves face-to-face dimension matches the pipeline gap precisely and ensure adjacent piping is perfectly aligned.

2. Clean both the valve and pipeline flange faces to remove rust, scale, or grease.

3. Insert an ASME-compliant industrial flange gasket between the sealing faces.

4. Pass high-tensile NACE-compliant fasteners through the bolt holes and tighten the nuts progressively in a multi-stage, star-pattern sequence using a calibrated torque wrench to ensure uniform gasket compression.

Q: Why is API 6FA fire testing a vital qualification for these heavy-duty valves?

A: API 6FA compliance proves that the valve can withstand a high-temperature external fire for a specified duration without suffering catastrophic structural failure or massive internal seat leakage. Even if the soft secondary sealing elements are completely destroyed by extreme heat, the valve's primary metal-to-metal seating interface remains intact, containing the high-pressure fluid safely and preventing the line from feeding the fire.

Q: How does manual gear operation benefit large-bore 24 -inch valves?

A: Manually operating a massive 24-inch valve against high-velocity water streams requires immense force. FlowBiz outhits these large-bore assets with high-ratio mechanical gearboxes. This setup multiplies the operator's input torque, allowing a single technician to cycle the valve smoothly and slowly. This gradual movement is an essential safety feature that prevents dangerous pipeline water hammer.

Secure Your High-Pressure Water Grid with FlowBiz Expertise

Are you designing a municipal water transmission line, upgrading a high-volume cooling header, or replacing an unreliable isolation valve? Contact the engineering and global sales desk at FlowBiz Exports Pvt. Ltd. today. Share your fluid velocity profiles, pressure variations, and dimensional constraints to receive a comprehensive technical evaluation and a competitive, fast quotation.
