Severe-Service Industrial Piston Valves | FlowBiz Exports

FlowBiz Exports is a premier, engineering-driven manufacturer, supplier, and global exporter of high-integrity Industrial Piston Valves. Operating through a well-defined manufacturing process and robust quality management systems, our production begins by acquiring certified raw materials that reflect the true mark of quality.

Our industrial piston valves are engineered with an advanced seatless and glandless design, making them a true epitome of quality for isolating steam, thermal fluids, volatile gases, and hazardous liquids. By utilizing a polished metallic piston that travels between two resilient, elastic sealing rings, these valves provide a zero-leakage guarantee and a long operational lifespan in severe-service industrial piping networks.

We maintain a highly responsive distribution matrix supplying critical process industries across India and global export markets, including:

• Gujarat: Junagadh, Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Pan-India Logistics Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all over India.

Technical Specifications & Compliance Matrix

Our precision-engineered piston production series is machined and verified to satisfy strict international pressure vessel and fluid-containment codes:

The Mechanical Logic of a Seatless Piston Valve


                   FlowBiz Seatless Double-Seal Mechanism


                    [Handwheel Rotated to Isolate Pipeline]



           Polished SS304 Piston Descends into Sealing Ring Zone




  [Upper Sealing Ring Layer]                            [Lower Sealing Ring Layer]
  Compresses around piston upper diameter               Compresses around piston bottom face
  to prevent fluid escaping to atmosphere.              to block forward fluid movement entirely.


                  Dual-ring mechanical compression ensures absolute
                  tightness = 100% Zero-Leakage Guarantee.

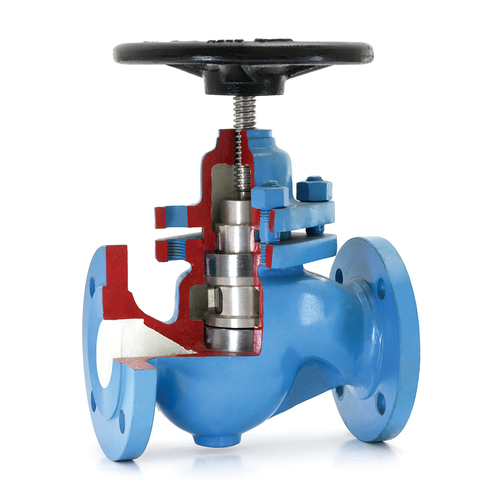

Unlike traditional globe or gate valves that rely on a metal disc slamming down onto a metal seat, the FlowBiz piston valve operates through a seatless linear displacement. The valve internals consist of a polished SS304 stainless steel piston and two flexible, non-metallic sealing rings separated by a metallic lantern bushing.

When the operator turns the manual handwheel, the piston moves downward, sliding cleanly through the upper sealing ring and into the lower ring. As the bonnet bolts are tightened, compressive energy forces the elastic rings tightly against the polished cylinder face and the internal valve casing. This dual compression provides a highly efficient double-seal design that blocks the flow path and prevents fluid from escaping up the stem, ensuring leak-tight performance.

Strategic Design & Core Operational Advantages

Specifying a FlowBiz piston valve provides high-pressure boiler lines and hazardous chemical skids with clear mechanical and safety advantages:

• Robust Safety for Flammable & Hazardous Fluids: Because our valves eliminate traditional stem packings and loose seats, they are highly resistant to thermal shocks and pressure spikes. This robust build provides absolute safety in transport networks carrying flammable solvents, explosive gases, or toxic liquids.

• OS & Y (Outside Screw & Yoke) Architecture: Built according to OS & Y construction standards, the stem threads are located completely outside the valve body casing. This configuration isolates the critical drive threads from aggressive chemicals, superheated steam, and scale build-up, preventing thread galling and making manual handwheel operation smooth and easy over years of continuous service.

• Broad Material Selection Flexibility: We understand that different industries face different chemical exposures. To match your exact process requirements, we leave the choice of raw material selection up to you, allowing you to choose the perfect carbon steel or stainless steel substrate for your system.

• Customized Port Sizing: Standard factory dimensions do not always match old or specialized piping configurations. FlowBiz offers customized port sizes and trim configurations, collaborating with your technical team to ensure a precise mechanical fit that optimizes operational efficiency and system lifespan.

Versatile Performance Across Industrial Sectors

Our high-integrity piston valves provide a durable, efficient isolation solution across demanding heavy industry verticals:

• Chemical Plants & Petrochemical Refineries: Safely isolates hot acid lines, volatile organic chemical compounds, and reactive blending utilities up to 200C.

• Power Stations & Boiler Houses: Provides bubble-tight shut-off for superheated steam distribution, condensate return lines, and high-pressure boiler blowdowns.

• Nuclear Facilities & Water Treatment Plants: Offers dependable, low-maintenance fluid handling where equipment failure could risk plant safety or cause costly downtime.

Frequently Asked Questions (FAQs)

Q: How do piston valves manufactured in Junagadh handle high-temperature steam applications?

A: Our piston valves are engineered to operate efficiently at continuous temperatures up to 200C. By utilizing high-grade SS304 stainless steel for the polished piston disc combined with thermal-shock-resistant sealing rings, the valve accommodates rapid thermal expansion and contraction without warping, scoring, or leaking, ensuring reliable performance in harsh steam environments.

Q: When should a process industry select a manual piston valve over an automated option?

A: A manual handwheel piston valve is highly advantageous in scenarios that require direct, hands-on operator control, simple system layouts, and excellent cost-effectiveness. They are the ideal choice for pipeline segments where flow adjustments are infrequent, inside compact process skids, or in safety-critical areas where independent manual override capability is required without relying on electrical or pneumatic power lines.

Q: What specific mechanical benefits do customized port sizes provide to a piping network?

A: Customizable port sizes ensure that your piston valves precisely match your existing pipe dimensions and flow velocities. This custom tailoring simplifies field installation, reduces the need for expensive pipe reducers or adapters, and minimizes system downtime during retrofits, while maintaining optimized fluid dynamics across your workflow.

Q: Why partner with FlowBiz Exports as your long-term piston valve manufacturing partner?

A: FlowBiz Exports balances advanced severe-service engineering with strict compliance to international safety, design, and testing benchmarks. By combining high-grade metallurgies (such as SS304 pistons) with a seatless double-seal design, flexible connection styles (screwed, socket weld, or butt weld), and comprehensive logistics support across India and international export markets, we eliminate operational risks in the field. Our capacity to deliver durable, low-maintenance piston valves makes us a trusted supply chain partner for your critical infrastructure needs.

• What is the primary chemical composition of your fluid media, and will this valve be installed on a high-temperature steam utility line or a chemical process header?
