Industrial Non-Slam Disc Check Valves: Advanced Surge Mitigation and Technical Standards

In high-velocity fluid transmission networks, sudden pump de-energization or power failures can trigger rapid flow reversals. Standard check valves often rely solely on the backflowing medium to close, resulting in a violent mechanical slam against the seat. This creates massive acoustic noise and severe kinetic pressure spikes known as water hammer, which can fracture cast iron fittings, rupture pipe walls, and destroy upstream pumping machinery.

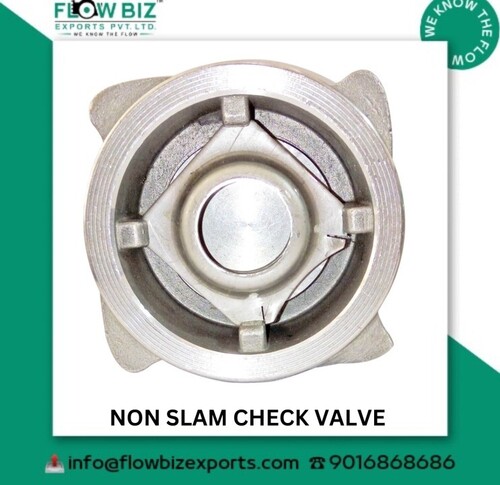

A Non-Slam Disc Check Valve provides an engineered solution to this issue. By utilizing a compact, internal axial disc design coupled with a balanced spring-assisted mechanism, the valve actively forces the disc back into its seat the exact millisecond forward fluid velocity drops to zero. Closing the fluid orifice before the reverse water column can gather linear acceleration ensures silent, slam-free operation and complete protection against pipeline surges.

Technical Specifications & Manufacturing Framework

FlowBiz Non-Slam Disc Check Valves are designed and tested in strict accordance with international pressure containment and dimensional codes, allowing for precise integration into global piping networks.

Core Engineering Matrix

Critical Engineering Features & Process Benefits

1. Spring-Assisted Pre-Closure Dynamics

The key to non-slam performance is the short linear travel distance of the disc combined with spring tension. As forward process velocity decelerates, the internal spring instantly expands to push the SS 304 disc back onto its seat. Because the valve path is completely closed ahead of reverse fluid acceleration, fluid shockwaves are eliminated, preserving system integrity.

2. High-Strength SS 304 Metallurgy & Thermal Resilience

Process utility headers routinely subject internal valve components to severe thermal cycles and corrosive compounds. Fabricating our discs from premium SS 304 stainless steel provides exceptional resistance to surface pitting, erosion, and cavitation damage. The structural assembly maintains absolute dimensional stability at operating temperatures up to 200C, preventing internal warping or sticking.

3. Serviceable Inline Design & Operational Versatility

To minimize plant downtime and reduce operational overhead, these valves are fully serviceable inline. Maintenance teams can access internal seals, springs, and discs without unbolting the entire valve body from the header. Additionally, select custom models can be configured with external spring adjustments or manual overrides to simplify inline inspections and physical system tuning.

Strategic System & Industrial Applications

Our heavy-duty non-slam disc check valves are meticulously manufactured to handle a wide spectrum of routine and severe-service media:

• Refineries & Petrochemical Plants: Safeguarding high-volume transfer pumps, blending manifolds, and hydrocarbon headers from back-pressure surges.

• Chemical & Water Processing Sectors: Preventing hazardous fluid back-migration or raw chemical cross-contamination.

• Power Stations & Nuclear Facilities: Regulating auxiliary water loops, steam utility headers, and condensate lines under intense pressure dynamics.

• Marine & Defense Infrastructure: Specialized configurations engineered to manage seawater loops, blackwater systems, fuel lines, high-pressure air lines, and weapons discharge manifolds.

Frequently Asked Questions (FAQ)

Q: What is the main structural advantage of a non-slam disc check valve over a traditional swing check valve?

A: A traditional swing check valve features a swinging arm that must travel through a wide 90-degree arc to close, creating a significant time lag that allows reverse fluid momentum to build up and slam the disc shut. A Non-Slam Disc Check Valve uses a short-stroke, spring-loaded center-guided disc that travels parallel to the flow path. This minimal travel distance, combined with proactive spring closure, seals the valve instantly when forward flow drops to zero, entirely preventing water hammer.

Q: When should an engineer choose a renewable nickel alloy seat instead of an elastomeric seat?

A: The selection depends on your system's operating temperature, media abrasiveness, and required sealing class:

• Renewable Nickel Alloy Seats: Ideal for high-temperature applications (up to 200C), steam service, thermal oils, and fluids containing entrained pipeline scale. The nickel alloy trim offers excellent resistance to wire-drawing and erosive surface wear.

• Integral Elastomeric Seats: Best suited for low-temperature water lines, clean air, and gas systems where achieving a bubble-tight, zero-leak micro-seal is mandatory.

Q: What is the exact workflow for ordering a customized port size from your Gandhidham facility?

A: Our local manufacturing facility in Gandhidham coordinates closely with your project requirements:

1. Technical Submission: Sourcing teams provide their precise pipeline dimensions, flow velocity constraints, fluid chemistry, and target flange standards.

2. Precision Engineering: Our technical division custom-configures the internal bore diameter, disc weight, and spring cracking pressure to prevent localized turbulence.

3. Quality Verification: The tailored check valves undergo rigorous hydrostatic and pneumatic testing before being dispatched at factory-direct prices.

Q: Does a manual configuration affect the automatic performance of the check valve?

A: No. The core check valve function remains completely self-acting and driven entirely by fluid dynamics. The manual configuration optionssuch as manual override handles or external tracking leversare designed to assist maintenance teams by allowing them to securely lock the disc closed during system servicing or visually confirm internal disc positioning from outside the pipeline without using special tools.
