Welcome to FlowBiz Export Private Limited, a trusted benchmark for engineering excellence in heavy-duty fluid handling technology. Headquartered with advanced production capabilities in Kheda, Gujarat, we are a premier manufacturer, supplier, and global exporter of high-performance Non-Lubricated Sleeved Plug Valves.

Our specialized distribution network seamlessly services major industrial corridors, including Gandhinagar, Ahmedabad, Vapi, Surat, Mumbai, Pune, Chennai, and international export markets.

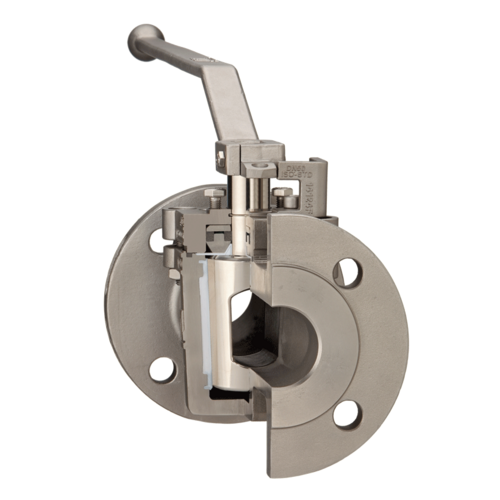

FlowBiz Sleeved Plug Valves utilize a precision-machined tapered plug that rotates within a fully encapsulated polymeric sleeve. This cavity-free, low-friction design completely isolates the valve body from the process media, making it the definitive choice for handling hazardous, corrosive, and volatile fluid streams.

Technical Specifications & Structural Parameters

Our non-lubricated sleeved plug valves are engineered to eliminate the internal cavities found in standard ball valves, preventing media accumulation, product degradation, and pipeline clogging.

Key Performance Features & "Fit-and-Forget" Benefits

1. Cavity-Free, Zero-Leakage Sealing

Unlike ball valves, which feature dead spaces where media can collect and solidify, the PTFE sleeve completely surrounds the plug. This creates a continuous, high-surface-area radial seal that ensures a 100% tight shut-off in both high-vacuum and low-pressure services, completely eliminating fugitive emissions.

2. Smooth Handling of Corrosive Mediums

By pairing a heavy-duty carbon steel housing with an inert, non-stick polymer sleeve, our valves remain entirely unaffected by aggressive chemicals, corrosive media, and light slurries. The sleeve acts as a self-lubricating barrier, preventing metal-to-metal galling and significantly reducing operational torque.

3. "Fit-and-Forget" Durability

Engineered for maximum operational lifecycle with minimal maintenance intervention, our sleeved plug valves are truly "fit-and-forget" assets. The internal sleeve configuration compensates for wear automatically over thousands of rapid cycles, drastically lowering your plant's operational overhead.

4. Custom Throttling Configurations

While primarily engineered for positive on/off isolation, FlowBiz offers specialized internal design variations. By configuring the tapered plug with customized V-ports or characterizing slots, these valves can be safely adapted for precise flow throttling applications without risking seat erosion.

Targeted Cross-Industry Applications

FlowBiz non-lubricated sleeved plug valves are specified by project managers and maintenance specialists across highly demanding process environments:

• Chemical & Petrochemical Processing: Handling aggressive acids, alkalis, chlorine, and reactive polymers.

• Oil & Gas Transport Lines: Reliable, low-maintenance isolation of volatile hydrocarbons and fuel lines.

• Pulp & Paper Mills: Managing caustic liquors, bleaching agents, and fibrous stocks.

• Industrial Water & Effluent Utilities: High-frequency cycling in water purification, desalination loops, and wastewater treatment complexes.

Frequently Asked Questions (FAQ)

Q: What is the primary structural advantage of a Sleeved Plug Valve over a Standard Ball Valve?

A: A standard ball valve features an internal cavity surrounding the ball. When the valve cycles, process fluid gets trapped inside this dead space, which can cause chemical crystallization, bacterial growth, or clogging. A sleeved plug valve is entirely cavity-free; the polymer sleeve fully encapsulates the plug mechanism, meaning there is no place for stagnant media to accumulate.

Q: Why is a sleeved plug valve described as a "fit-and-forget" valve?

A: Lubricated plug valves require plant operators to regularly inject sealing grease to maintain an effective seal and prevent the plug from seizing. Our sleeved plug valves utilize a self-lubricating virgin PTFE sleeve. The continuous compression between the plug and the sleeve automatically adjusts for minor wear over time, providing a completely maintenance-free, grease-free sealing system.

Q: Can these carbon steel valves handle highly aggressive chemical media?

A: Yes. While cast carbon steel (WCB) provides the heavy-duty physical pressure containment externally, the internal fluid path is shielded by the inert polymer sleeve. For exceptionally severe services involving wet chlorine or concentrated hot acids, our Kheda manufacturing plant can construct the internal plug out of premium SS316, Monel, or Hastelloy to guarantee absolute corrosion resistance.

Q: What connection options and installation configurations are available?

A: We manufacture our sleeved plug valves with standard raised-face flanged connections (conforming to ASME B16.5) to ensure easy, drop-in integration into your existing pipeline networks. They can be operated via standard manual wrenches, enclosed worm gearboxes, or fitted with automated pneumatic/electrical actuators for automated control loops.

Q: How can suppliers, traders, and end-users secure bulk pricing from FlowBiz?

A: Procurement teams can contact our Kheda sales headquarters directly through our official corporate website or phone lines. Our engineering division provides full application consulting, valve sizing validation, and certified material test reports (MTRs) to match your exact process conditions, backed by highly competitive factory-direct B2B pricing.

Are you designing a critical chemical process line or upgrading a high-frequency utility manifold? Contact our Kheda sales office today to receive comprehensive technical layouts and a personalized project quotation.
