Cast Steel Swing Check Valves: Bolted Cover Architecture and Pressure-Volume Standards

In heavy utility networks, power generation headers, and continuous petroleum refining loops, preventing fluid backflow is a primary safety requirement. Sudden pressure loss or an abrupt upstream pump trip can cause process media to reverse direction at high velocities. This backflow can spin centrifugal pumps backward, strip compressor impellers, smash sensitive filter plates, and cause hydraulic shockwaves (water hammer) that can crack structural piping welds.

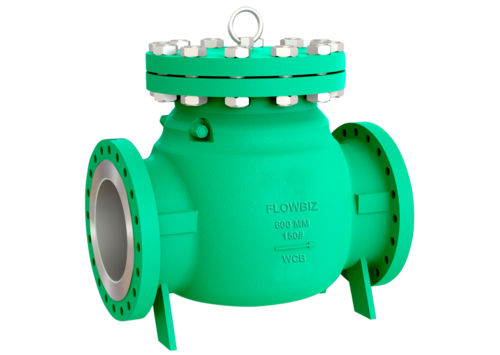

An industrial Cast Steel Swing Check Valve provides a heavy-duty, self-actuated non-return safety solution. Built with a bolted cover pressure vessel architecture, this valve operates automatically using the kinetic energy of the process stream. When forward fluid pressure overcomes the valve's cracking pressure, the internal disc swings upward on a hinge pin, clearing the flow path. When the flow stops or pressure drops to zero, gravity and the weight of the reversing fluid column swing the disc back against the seat ring, blocking reverse flow.

                    Bolted Cover Swing Check Internals



                          Bolted Cover Plate         [ Top-Entry Access ]
                            (In-Line Servicing)
                                     (Graphite/SS Spiral Gasket Seal)


                         Internally Mounted Hinge      [ No Shell Penetration ]
                              (Zero Fugitive Leaks)
                                       (Swings on Pin Axis)
 [ Forward Fluid Flow ]    / Balanced Disc Trim \  [ Safe Forward Flow ]
 (Lifts Disc Off Seat)         \    Open Position   /      (Low Turbulence / Low P)

                                       (Flow Stops / Pressure Reaches Zero)

                                Closed Disc   [ Backflow Blocked ]
                                Secure Seat       (Absolute Non-Return Sealing)


FlowBiz Exports is an elite global fluid-handling brand and a leading Swing Check Valve Manufacturer in Rajkot, Gujarat, India. We focus on precision engineering cast steel, bolted-cover swing check valves designed to comply with strict international standards, ensuring safe pressure containment and reliable backflow prevention across global processing grids.

Technical Specifications & Compliance Parameters

FlowBiz cast steel swing check valves are manufactured, machined, and verified to satisfy strict global engineering codes, ensuring seamless integration into severe-service piping systems.

Core Product Configuration Matrix

Critical Engineering Features & Safety Benefits

1. Robust Bolted Cover & Top-Removal Sealing

The valve body features a heavy bolted cover design equipped with premium stainless steel and graphite gaskets. This combination maintains structural integrity under rapid thermal shifts and high pressure cycles up to 1500 psi. This design provides top-removal access, allowing maintenance teams to inspect internal components, clean out debris, and lap seats in-line, without cutting the valve housing out of the pipeline.

2. Internally Mounted Hinge & Fugitive Emissions Control

For the 2-inch to 12-inch size range, FlowBiz utilizes an internally mounted hinge assembly. Unlike traditional designs that mount the hinge pin through the outer pressure wall using exterior plugswhich can loosen over time and cause fugitive packing leaksthe internally mounted hinge pin is anchored entirely within the valve body casting. This completely eliminates a potential external leak path, helping facilities meet strict environmental and fugitive emissions standards.

3. Streamlined Low-Turbulence Flow Path

The single-disc configuration allows the internal disc to swing completely out of the fluid track during forward flow. By allowing fluids to pass through with minimal restriction, this full-ported geometry creates low pressure drops and minimal fluid turbulence. This reduces energy consumption across upstream pumping systems compared to lift or piston check valves.

                       Strategic Asset Insulation



                  Severe Industrial Processing Environments




 [ Hydrocarbon Transfer ]   [ High-Pressure Steam ]    [ Aggressive Water Media ]
 (Refinery Line Isolation)  (Power Generation Safety)  (Chemical & Nuclear Loops)

Strategic System & Industrial Applications

Our high-temperature, standard-compliant swing check valves provide automatic backflow prevention across critical continuous-process sectors:

• Petroleum Refineries & Oil Headers: Positioned along main hydrocarbon pipelines, fuel blending lines, and high-pressure oil transfer manifolds.

• Power Generation & Boiler Utilities: Protecting high-volume boiler feed pumps, steam headers, and superheated utility lines up to 816C.

• Chemical & Petrochemical Processing: Preventing backflow inside aggressive chemical feeds, process water loops, and solvent transfer headers.

• Nuclear Power Plant Skids: Meeting strict material safety guidelines to provide clean, dependable fluid isolation in auxiliary loops.

• Water Treatment & Desalination Facilities: Catching coarse debris and preventing backflow in large-bore intake pipes and high-pressure pumping loops.

Frequently Asked Questions (FAQ)

Q: Why is a swing check valve preferred over a lift check valve for lines carrying slurries or large particles?

A: The choice depends on the valve's internal design and flow path:

• Swing Check Valve: Features a clear, full-ported flow path where the disc swings completely out of the way. This design handles liquids containing suspended solids, light slurries, or debris without clogging or fouling the hinge mechanism.

• Lift Check Valve: Utilizes a piston disc that moves vertically inside a tortuous internal fluid guide. This configuration is better suited for clean, high-pressure gas or steam lines, as suspended solids can easily jam the piston guide.

Q: How does using an SS 304 disc improve valve longevity in water and chemical lines?

A: High-velocity utility fluids and chemical reagents can cause rapid erosion, surface pitting, and oxidation in standard cast carbon steel discs. FlowBiz addresses this by fabricating its moving discs from high-grade SS 304 stainless steel. This alloy features a dense chromium-nickel matrix that naturally forms a passive, self-healing oxide layer, preventing chemical attack and maintaining smooth operation up to 200C.

Q: When and how should an engineering team specify a customized port size?

A: Customized port sizes are highly recommended when upgrading older processing skids with non-standard pipe connections or unique space constraints. Sourcing teams provide their nominal line diameters and flange ratings (such as ANSI or DIN) during the ordering process, and our Rajkot engineering division custom-machines the housing to ensure a secure, clean fit. This customization helps maintain efficient system flow dynamics and prevents line restriction.

Q: What exact quality validation steps are performed before the check valves are dispatched from Rajkot?

A: Every valve batch undergoes rigorous quality testing to ensure total reliability before shipment. Our testing division performs comprehensive hydrostatic and pneumatic inspections that comply fully with API 598 standards. These procedures verify structural casting density, validate the integrity of the bolted cover gasket seal, and ensure bubble-tight seat containment, providing reliable, leak-proof performance under pressure.
