Industrial Swing Check Valves Unidirectional Backflow Prevention Units

Welcome to the premier engineering authority for automatic reverse-flow mitigation, fluid dynamic containment, and downstream pump asset protection. Operating high-precision metallurgical foundries, advanced multi-axis CNC machining complexes, and certified hydro-pneumatic pressure validation cells, we manufacture, supply, and export industry-grade Swing Check Valves.

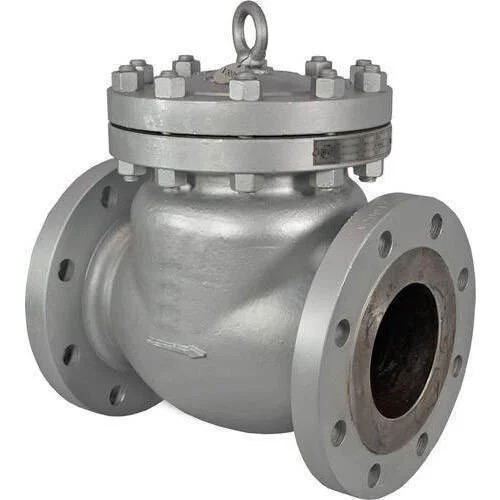

FlowBiz swing check valve is a simple device designed for the one-way flow of a liquid or gas. It has a disc that swings on a hinge, opening to allow fluid to flow in, then closing to prevent backflow. Featuring a robust, non-slam structural body treated with a corrosion-resistant Silver Finish, these self-acting valves safeguard your critical systems, minimizing maintenance and optimizing process flow across local and global pipeline grids.

Technical Specifications & Compliance Parameters

Every production block undergoes 100% rigorous pressure testing in full accordance with strict global safety codes to ensure absolute seat integrity and low forward-flow cracking pressure.

Kinematics & Gravity-Assisted One-Way Mechanics

The internal configuration of a swing check valve relies entirely on the kinetic energy of the process stream to actuate, eliminating the need for external electrical or pneumatic power loops:

 FORWARD FLOW STATE (OPEN PORT) REVERSE FLOW STATE (POSITIVE SHUT-OFF) [ REMOVABLE BONNET COVER ] [ REMOVABLE BONNET COVER ] \/ \/ +------------------------+ +------------------------+ | Hinge Pin / Hanger | | Hinge Pin / Hanger | +--+------------------------+--+ +--+------------------------+--+ | Disc Swings Upward | | | | | | /---\ | | | Disc Swings | | ============> ===>| | | Unobstructed |==============>| | Downward |<====|<==== Backflow Forward Fluid | \---/ Flow Pathway | Low Pressure | | Tightly Onto | | Pressure Stream Pressure +--------------------------+ Drop | | Body Seat Ring | | Trapped | Bi-Directional Seats | +--------------------------------+ +--------------------------+ | Bi-Directional Seats | +----------------------------+

• Fluid-Driven Disc Rotation: When forward fluid pressure enters the inlet side, it exerts a force that overcomes the weight of the closure element. The disc swings upward on a hinge pin, moving completely out of the core stream path to facilitate high-velocity, low-turbulence fluid passage.

• Automatic Backflow Interception: The moment the upstream pump stops or forward stream velocity drops to zero, gravity draws the disc downward. The reverse flow of fluid immediately pushes against the back of the disc, seating it tightly against the body seat ring. This immediate action effectively prevents reverse fluid movement and eliminates lines slam.

• Straight-Through, Full-Bore Geometry: Because the internal geometry aligns closely with a standard pipe bore when the disc is fully raised, it provides an unrestricted flow pathway. This keeps fluid friction head losses to an absolute minimum and achieves excellent pressure recovery across the node.

Core Engineering Features & Plant Benefits

• Superior Stainless Steel Construction: Manufactured using superior stainless steel, our valves deliver durable corrosion resistance, excellent material strength, and reliable high-temperature adaptation.

• Critical Asset Protection: By providing consistent one-way flow control, these check valves effectively shield sensitive industrial equipmentincluding multi-stage centrifugal pumps, flow meters, and strainersfrom the destructive back-pressures or hydraulic shock waves caused by sudden line shutdowns.

• Corrosion-Resistant Silver Finish: The heavy-duty industrial silver finish provides an extra layer of defense against harsh external environments, chemical washdowns, and atmospheric oxidation.

• Simplified Inline Maintenance: Designed with a bolted top bonnet cover, plant technicians can safely inspect the internal hanger arm, disc assembly, and seating surfaces or replace wearing components without removing the valve body from the pipeline.

Strategic Industrial Application Sectors

Our premium check valves are ideal for pipelines, processing plants, and critical industrial processes that require robust, long-term flow control:

• Pumping Stations & Water Utilities: Installed on pump discharge headers to prevent reverse gravity flow from tall storage tanks when power is cut.

• Chemical Processing & Petrochemical Lines: Preventing cross-contamination of raw chemical reagents or process batches inside aggressive fluid streams.

• Oil & Gas Transmission Infrastructure: Protecting long-distance pipeline manifolds, compressor stations, and bulk terminal transport links.

• HVAC Loops & Power Generation Facilities: Managing unidirectional fluid transfer within boiler feed lines, cooling towers, and high-pressure condensed steam utility grids.

Frequently Asked Questions (FAQ)

Q: How are your swing check valves used in industrial settings?

A: Our swing check valves are utilized to ensure unidirectional flow within a pipeline, operating automatically to allow forward fluid passage and instantly close when flow reverses. They act as a critical mechanical shield that prevents hazardous backflow and protects sensitive machinery from the physical impact of reverse fluid movement.

Q: What concrete benefits do I receive from choosing your stainless steel swing check valves?

A: By selecting our high-grade stainless steel (SS) swing check valves, you gain exceptional resistance to rust, chemical abrasion, and pitting. This durable design maintains consistent seating tolerances, requires minimal maintenance, and provides an extended operational lifespan in demanding industrial environments.

Q: When should I consider installing a swing check valve in my piping system?

A: Swing check valves should be specified whenever you need to prevent reverse flow or backpressure from traveling backward through your system. They are highly recommended for installation directly after a pump discharge line, ahead of critical dosing meters, or along fluid transfer manifolds where fluid must travel in only one direction.

Q: Where are your swing check valves manufactured and exported from India?

A: Our complete portfolio of API 6D and ASME B16.34 compliant check valves is manufactured at our advanced engineering facility in Ahmedabad, India. From this location, we supply domestic markets and export directly to international industrial clients, ensuring global access to certified quality products.

Q: What is the exact manufacturing process for your swing check valves?

A: Each valve is produced using high-grade stainless steel castings. The manufacturing process involves precision CNC machining of the seat face tolerances, balancing the hanger arm and disc weight distribution, multi-stage assembly, and applying a corrosion-resistant protective silver finish. Every single unit undergoes comprehensive hydrostatic and pneumatic testing to guarantee leak-proof performance before dispatch.

Q: How can I be sure of the quality of your swing check valves?

A: We maintain rigorous quality assurance standards throughout production. Our inspection process includes ultrasonic material verification, dimensional compliance mapping, and strict shell and seat pressure containment testing that meets or exceeds API 598 industrial benchmarks for operational strength.

Q: What standard sizes do you offer for these valves?

A: Our swing check valves are available in an extensive range of standard sizes that match international nominal pipe guidelines (including ASME B16.5 and larger B16.47 Series A & B profiles), ensuring straightforward, seamless integration into your existing systems.

Are you updating a high-capacity water transport header that requires an API 6D flanged check valve, or reinforcing a chemical process line with a butt-weld stainless steel swing check unit? Contact our sales and engineering division in Ahmedabad today to secure a factory-direct quote on our High-Performance Swing Check Valves, or ask a single relevant question regarding your specific fluid velocity or pressure class requirements below to guide the conversation forward.
