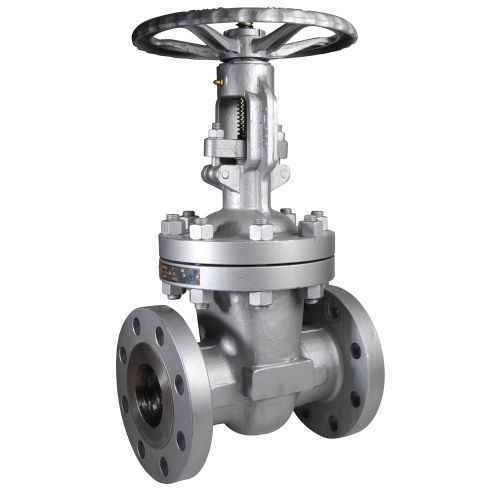

Heavy-Duty Carbon Steel Gate Valves FlowBiz Exports

Welcome to FlowBiz Exports, a premier manufacturing authority for high-pressure pipeline isolation technology. Operating from our advanced production facilities in Kheda, Gujarat, we are a leading manufacturer, supplier, and global exporter of high-performance Carbon Steel Gate Valves.

FlowBiz Gate Valves are engineered specifically for bi-directional on/off isolation service. When fully open, the wedge disc is drawn completely out of the fluid path, providing a full-bore, straight-through flow stream that minimizes friction loss and reduces system pressure drop to near zero.

Technical Specifications & Compliance Architecture

Our carbon steel gate valves are designed and tested to meet the absolute most rigorous international design criteria, facilitating drop-in compatibility across global industrial piping frameworks.

Core Engineering Features & Design Advantages

1. Robust Wedge & Stem Assembly

The FlowBiz design features an innovative stem-to-nut architecture that allows the manual handwheel to be completely removed while keeping the stem and wedge gate securely locked in position. For larger sizes and higher pressure classes, our valves are integrated with anti-frictional ball bearings inside the yoke bonnet to drastically reduce the manual torque required to cycle the valve under maximum line pressure.

2. High-Strength Carbon Steel Housing

Cast from premium ASTM A216 WCB steel, our housings possess the high tensile strength and impact resistance required to survive severe industrial hydraulic shocks (water hammer) and pipeline thermal cycling. The exterior is treated with an advanced, protective metallic silver industrial coating that defends the underlying metallurgy against external rust, atmospheric salinity, and ambient plant moisture.

3. Absolute Sealing Isolation (On/Off Service Only)

It is a critical engineering rule that gate valves must be operated strictly in a fully open or fully closed position. Leaving a gate valve partially open exposes the bottom edge of the wedge to high-velocity fluid dynamics, causing rapid seat erosion (wire-drawing) and structural vibration. Once eroded, the valve loses its ability to achieve a tight seal. For throttling or control applications, globe or diaphragm valves must be specified instead.

Targeted Industrial Infrastructure

FlowBiz carbon steel gate valves are specified globally by procurement managers and project engineers across high-demand water and utility grids:

• High-Pressure Utility Networks: Main line sectionalization, bypass isolation, and header isolation loops.

• Water Treatment Infrastructures: Industrial wastewater treatment complexes, municipal filtration networks, and pump stations.

• Manufacturing Facilities: Main feedlines for cooling tower water, raw water storage grids, and high-volume compressed gas pipelines.

• Infrastructure & Fire Networks: High-velocity, full-flow fire suppression mains and centralized distribution manifolds.

Frequently Asked Questions (FAQ)

Q: What internal components comprise the structural anatomy of a standard gate valve?

A: A FlowBiz gate valve is constructed from several precisely machined components working in unison: the valve body (outer pressure shell), the seat rings and wedge disc (the primary sealing interfaces), the threaded spindle/stem (which drives the wedge vertically), the gland packing (which seals fugitive emissions around the stem), and the multi-turn operating handwheel.

Q: Why is a carbon steel gate valve preferred over cast iron for high-pressure water systems?

A: Cast iron is brittle and prone to structural cracking when subjected to high-pressure surges, thermal shock, or pipeline mechanical bending stresses. Cast Carbon Steel (WCB) is highly ductile and possesses immensely superior yield and tensile strength boundaries, ensuring absolute structural safety and compliance with international high-pressure safety standards.

Q: What is the process for installing a flanged gate valve into an existing pipeline?

A: Installation requires aligning the valve body coaxially between two matching pipeline flanges. A standard high-integrity gasket must be inserted between the raised faces to ensure a reliable static seal. Heavy-duty bolts are then inserted through the flange holes and tightened in a progressive, cross-diagonal star pattern using calibrated torque specifications to prevent localized stress concentration.

Q: What is the benefit of a butt-weld end connection over a standard flanged connection?

A: While flanged connections allow for easy unbolting and drop-out maintenance, butt-weld end connections (conforming to ASME B16.25) permanently fuse the valve body directly to the pipeline steel. This completely eliminates mechanical flanged joints, bolts, and gaskets, providing an absolutely seamless, 100% leak-proof connection that is ideal for high-pressure, high-temperature, or high-vibration systems where zero fugitive emissions are tolerated.

Q: How should these manual gate valves be maintained to optimize their service lifespan?

A: Maintenance is remarkably straightforward thanks to our precision manufacturing tolerances. We recommend executing a routine preventive maintenance schedule that includes verifying gland tightness, lubricating the exposed yoke and stem threads, and periodically cycling the valve full-stroke if it is left in a fixed open or closed position for months to prevent mineral scale build-up along the internal seat track.

Q: How can international suppliers and procurement managers coordinate shipping from your Kheda facility?

A: As a fully unified manufacturer, supplier, and exporter, FlowBiz has an experienced international logistics division that manages export custom clearances, sea/air freight documentation, and rigorous packaging protocols. Sourcing can be initiated by contacting our Kheda sales office via phone or email to receive itemized commercial quotes and complete material test reports (MTRs).

Are you designing a high-capacity water distribution network or updating a high-pressure utility main? Contact our Kheda sales and engineering division today to receive comprehensive technical data sheets, certified dimensional layouts, and direct-factory B2B pricing.
