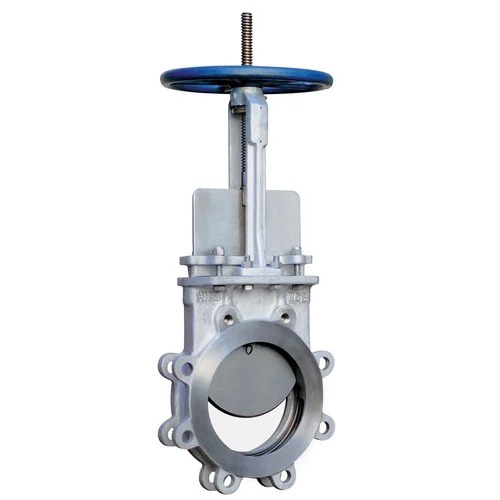

High-Performance Knife Gate Valves FlowBiz Mumbai

Welcome to FlowBiz Export Private Limited, a globally recognized engineering standard for severe-duty slurry handling, high-density solids isolation, and abrasive fluid management. Operating an advanced metallurgical foundry and precision-machining facility in Mumbai, Maharashtra, we are a leading manufacturer, supplier, and global exporter of heavy-duty Cast Iron Knife Gate Valves.

Our specialized solids-handling lines are engineered to cleanly slice through thick sludge, abrasive mine tailings, and fibrous pulp. We seamlessly serve critical industrial corridors across the entire domestic marketincluding Mumbai, Thane, Pune, Nashik, Nagpur, Ahmedabad, Vapi, Surat, and Chennaialongside fast-tracked maritime freight lines operating out of the Jawaharlal Nehru Port Trust (JNPT) for global export.

Technical Specifications & Application Boundaries

FlowBiz Knife Gate Valves are engineered strictly in accordance with MSS SP-81 and ASME B16.34 design codes. Featuring a precision-ground, sharpened stainless steel gate edge, these valves mechanically shear through packed solids and viscous materials that would instantly clog or jam a standard gate valve.

Core Engineering Features & Design Advantages

1. Sharpened Knife Edge Blade Engineering

Unlike standard gate valves that utilize a thick wedge that can trap bulk solids in the bottom of the valve cavity, our valves incorporate a slim, high-tensile stainless steel gate (SS304/SS316). The bottom edge of the gate is precision-beveled to a razor-sharp knife edge. As the handwheel turns, the blade mechanically slices through thick slurries, paper pulp, or wastewater sludge, forcing a secure closure without material entrapment.

2. Compact, Short Face-to-Face Casing Geometry

Our knife gate valves are engineered in ultra-slim wafer and lug body profiles. This short face-to-face dimension drastically minimizes the valve's footprint and total weight compared to bulky traditional gate valves. This layout reduces physical pipeline stress on pipe-hanging infrastructure and provides a highly cost-effective solution for large-diameter lines.

3. Cavity-Free Self-Cleaning Body Casing

The internal bore of the FlowBiz knife gate valve is designed with a smooth, straight-through configuration. The bottom of the body shell features specialized flushing corners rather than a deep recess pocket. When the gate descends, it pushes compressed particles sideways into the fluid stream, preventing media compaction and ensuring easy, low-torque operation.

4. Rigid Flanged Connection and Protective Epoxy Coating

Outfitted with heavy-duty flanged ends matching ASME B16.5 parameters, these valves integrate cleanly into medium-pressure industrial networks. To safeguard the cast iron casing from aggressive atmospheric humidity, chemical vapors, and industrial washdowns, each valve receives a high-build protective epoxy coating to ensure long-term exterior durability.

Strategic Slurry & Process Applications

FlowBiz industrial knife gate valves are specified across heavy-duty, solids-rich processing networks:

• Wastewater & Sewage Treatment Plants: Primary grit channels, raw sludge transmission pipelines, digester intake headers, and thick effluent loops.

• Pulp and Paper Mill Processing: Handling high-density cellulose stock lines, bleached wood pulp fibers, and raw recycling slurry loops.

• Mining & Mineral Processing Operations: Transporting abrasive coal slurries, copper/iron ore tailings, hydrocyclone feeds, and wash-water lines.

• Bulk Material Conveying Utilities: Managing dry fly ash headers, cement dust transport lines, and dry powder silo discharge chutes.

Secure Industrial Logistics & Compliance Assurances

• Export-Grade Freight Protection: All valves are enclosed in secure structural crates. This protects the precision-machined flange faces and the exposed stainless steel blade from transit vibrations and ocean air oxidation, ensuring the valve arrives at your facility in pristine condition.

• Turnkey Engineering Compliance: Operating as a certified B2B manufacturer and trader, every supply batch is dispatched with comprehensive Material Test Reports (MTRs), hydrostatic test certifications, and strict quality verification documents matching international safety standards.

Frequently Asked Questions (FAQ)

Q: Why are knife gate valves explicitly restricted from handling pressurized gas or air pipelines?

A: Knife gate valves are specialized assets engineered exclusively for solids, viscous fluids, and slurries. Because they utilize a thin, flat sliding blade rather than a uniform plug or round ball, they lack the multi-axis mechanical compression needed to hold micro-molecular gases. Attempting to use a knife gate valve on a compressed air or gas line will result in immediate, severe atmospheric leakage around the packing gland. For gas loops, FlowBiz Flanged Ball Valves must be specified.

Q: Why do industrial knife gate valves standardly start at a 2-inch nominal size?

A: Small-bore pipelines (below 2 inches) are utilized for clean utility fluids, gases, or chemical reagents that do not contain large, suspended solids or thick sludge. Because micro-bore lines are not at risk of clogging or trapping fibers, they can easily be managed by standard, low-cost ball or globe valves. Knife gate engineering becomes hydraulically necessary only at 2 inches and above, where large volumetric solids require a sharpened blade to achieve inline isolation.

Q: What is the main operational difference between a Resilient Seat and a Metal Seat knife gate valve?

A: A Resilient Seat model incorporates an elastomeric liner (like EPDM or Viton) that seals tightly against the face of the blade, providing an absolute, zero-leakage bubble-tight shut-off for liquid-heavy slurries. A Metal Seat model features a direct metal-to-metal interface between the stainless steel blade and the cast body ring. Metal seats are preferred for extreme abrasive tailings or high-temperature ash lines where soft elastomers would be instantly torn or melted, though they allow a minor, permissible drop-counter bypass according to MSS SP-81 codes.

Q: How can field technicians adjust the packing gland if weeping occurs along the top works?

A: Over thousands of abrasive cycles, high-viscosity media can place stress on the valve packing seals. FlowBiz valves feature an easily accessible, top-mounted external packing gland. If minor fluid weeping is observed near the top of the valve during a line stroke, technicians can simply use a standard wrench to tighten the gland bolts uniformly. This compresses the internal PTFE packing rings against the sliding gate plate, instantly restoring a leak-proof external seal without shutting down the pipeline.

Q: How can project procurement managers and traders coordinate direct factory quotes from Mumbai?

A: Sourcing can be initiated by contacting our corporate sales division in Mumbai, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline nominal sizes (2 to 24), exact media characteristics (pulp density, slurry abrasion, chemical traits), and pressure limitsto deliver a certified technical submittal package and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a wastewater sludge manifold or upgrading a high-density pulp processing header? Contact our Mumbai sales and engineering office today to receive comprehensive technical sheets, dimensional blueprints, and an itemized commercial proposal.
