About Actuated Forged Steel Ball Valve Manufacturer in Ahmedabad

Heavy-Duty Forged Steel Ball Valves (Class 800 to Class 2500) | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of severe-service Forged Steel Ball Valves in India. Operating from our state-of-the-art production facilities in Ahmedabad, Gujarat, we specialize in designing and manufacturing these heavy-duty fluid isolation systems. They are specifically built to withstand the punishing physical stresses found in ultra-high-pressure and high-temperature industrial pipelines.

Unlike traditional cast valveswhich can contain hidden internal micro-porosities or sand holes that risk structural failure under intense stressthe FlowBiz high-pressure series is manufactured strictly from solid forged blocks and rolled bar stock. This structural density ensures uncompromising pressure boundary safety, making these valves an essential component for high-pressure hydraulic loops, superheated steam distribution, refining operations, and critical chemical processing lines.

Technical Specifications & Engineering Standards

Our forged steel series is precision-machined and rigorously tested to satisfy the highest global pipeline criteria:

Parameter	Engineering Specification & Compliance Details
Product Layout	Heavy-Duty Modular 3-Piece Split Body Design
Pressure Class Spectrum	Fully certified across Class 800, Class 1500, and Class 2500 lines
Size Matrix Range	Focused compact sizes from 1/2" inch to 2" inches
Design Compliance	Engineered in strict accordance with BS 5351 and API 6D codes
Quality & Pressure Testing	100% hydrostatically and pneumatically verified per API 598 norms
Isolation Integrity	ANSI/FCI 70-2 Leakage Class VI (Absolute bubble-tight containment)
Thermal Operating Envelope	Continuous reliable execution at extreme temperatures up to 300C
Internal Sealing Trims	Premium Virgin PTFE, Carbon-Filled Teflon (CFT), or hard-faced Metal seats
Pipeline Connectivity	Socket Weld (SW), Screwed/Threaded (NPT/BSP), Butt Weld (BW), or Flanged

High-Grade Forged Metallurgy & Material Matrix

To match specific chemical compatibilities and environmental demands, FlowBiz offers an expansive range of certified forged metallurgies, paired with high-performance internal trims:

1. Core Body Material Options

• Forged Carbon Steel (ASTM A105): The industry standard for heavy-duty, high-pressure utility services, steam distribution, and oil & gas lines.

• Forged Stainless Steel (ASTM F304 / F316): Engineered for aggressive process fluids, corrosive chemicals, and environments requiring high material purity.

• Low-Carbon Variants (ASTM F304L / F316L): Specially selected for welded applications to prevent carbide precipitation and ensure maximum structural grain integrity at the weld seams.

2. Premium Stainless Steel Internal Trims

To prevent internal erosion and chemical attack, all internal valve trims (including the ball and stem) are machined from premium SS304 or SS316 grade stainless steel as standard. The external casing is also treated with an advanced corrosion-resistant protective coating to shield the raw metallurgy from atmospheric oxidation, rust, and industrial chemical vapors.

Strategic Design & Safety Engineering Features

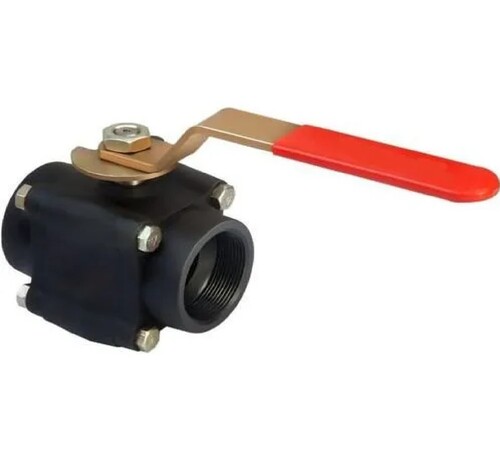

1. Modular 3-Piece High-Pressure Layout

Our high-pressure forged valves utilize a robust 3-piece design consisting of a central body capsule sandwiched between two independent end caps. This modular layout is highly advantageous for tight industrial setups. By simply removing the casing fasteners, the center section can be swung out for rapid seal inspection or packing replacement without cutting or disrupting the primary pipeline connections.

2. Multi-Position Mounting & Ergonomic Lever Actuation

Engineered for ultimate field flexibility, these valves perform flawlessly in both horizontal and vertical mounting configurations. Actuation is manual and highly reliable, driven by an ergonomic lever handle that provides a firm, comfortable grip. This manual power source ensures full operational control and positive flow isolation, even during plant power outages or in remote installation sites where automation is not feasible.

3. Comprehensive Operator Security Elements

• Blowout-Proof Stem: Designed with an internal, bottom-entry mechanical shoulder that prevents the stem from ejecting under sudden high-pressure surges or hydraulic water hammers.

• Anti-Static Devices: Grounding springs maintain continuous electrical continuity between the ball, stem, and valve body, safely dissipating static charge build-up to eliminate spark risks in explosive zones.

• Certified Fire-Safe Construction: In the event of an accidental plant fire that destroys the soft internal seals, secondary metal-to-metal seating boundaries seal the flow path to prevent hazardous fluid leakage.

Seat Selection Framework: Resilient vs. Metal Seated

Achieving long-term valve durability requires matching the seat material to the specific characteristics of your process fluid:

• PTFE & Carbon-Filled Teflon (CFT) Seats: These options deliver outstanding chemical resistance, zero moisture absorption, and an incredibly low coefficient of friction. CFT is fortified with carbon fibers to provide enhanced resistance against cold-flowing under intense Class 800 or 1500 pressure vectors. They are ideal for clean fluids, utility water, gases, and light chemicals up to 300C.

• Severe-Service Metal Seats: Recommended for applications involving abrasive suspended particles, catalysts, slurries, or extreme thermal spikes. Hard-faced metallic boundaries provide the necessary wear and score resistance to ensure reliable operation over years of continuous service.

Frequently Asked Questions (FAQs)

Q: Why is a forged steel body critical for pressure classes like 800, 1500, and 2500?

A: High-pressure systems create massive mechanical forces that exert intense stress on a valve's pressure boundary. While cast steel can contain microscopic sand holes or cooling cracks, forging compresses the metal's grain structure under extreme mechanical force. This eliminates internal voids and creates a highly uniform, dense metallurgy that safely contains continuous working pressures up to Class 2500 without risking structural distortion or cracking.

Q: What is the best connection type for a forged valve in high-pressure steam service?

A: For high-pressure steam or hazardous chemical lines, Socket Weld (SW) or Butt Weld (BW) ends are highly recommended. Welded connections permanently fuse the valve body to the pipeline, creating a seamless joint that completely eliminates the risk of thread leaks or gasket failure caused by pipeline vibration and thermal cycling. For systems requiring periodic maintenance or quick component replacement, precision-cut screwed threads or integrated flanged ends are available.

Q: How does the API 598 testing norm protect my facility from downtime?

A: API 598 is a rigorous international standard governing valve inspection and pressure testing. At FlowBiz, we subject 100% of our forged steel production line to these strict hydrostatic and pneumatic testing procedures. We verify both the high-pressure shell density and the internal seat seal integrity to ensure that every individual valve achieves Class VI bubble-tight shut-off before it leaves our factory.

Q: Why choose FlowBiz as your long-term forged steel ball valve partner in Ahmedabad?

A: Operating from Ahmedabad, FlowBiz Valves combines world-class industrial manufacturing precision with strict compliance to global engineering codes like BS 5351 and API 6D. By utilizing certified raw forgings (A105, F304, F316), providing specialized high-temperature seals rated up to 300C, and backing our products with complete technical support, we eliminate operational risks in the field. Our ability to supply robust, high-pressure fluid control equipment tailored to your exact specifications makes us a trusted supply chain partner for critical process installations across India and worldwide.
