FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of industrial Wafer Type Ball Valves in India. Operating from our advanced production facilitieswith key manufacturing hubs in Ahmedabad and Mumbaiwe are recognized as a market leader, producing the most significant volume of wafer-type series in India.

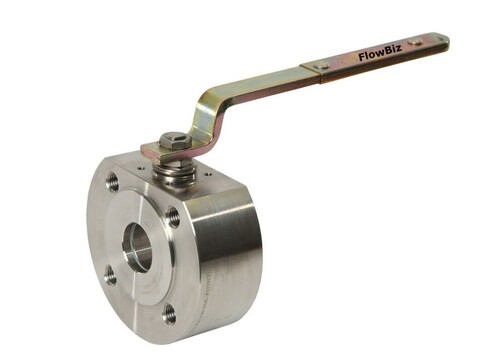

Our wafer type ball valves are precision-crafted to meet demanding industrial needs, offering an exceptionally compact, short face-to-face profile. Designed to slide directly between standard pipeline flanges, these valves provide a highly economical, space-saving, and lightweight alternative to traditional flanged ball valves, making them ideal for light-to-medium-duty utilities and high-efficiency space-constrained piping layouts.

Technical Specifications & Compliance Matrix

Our wafer-type production series is precision-machined from traceable raw stock to satisfy strict international pressure vessel and pipeline criteria:

Strategic Design & Mechanical Safety Features


                   Flange-to-Flange Wafer Assembly Matrix



 Upstream Flange         FlowBiz Valve         Downstream Flange
 (ANSI/DIN/JIS)             (ISO 5752 Wafer)            (ANSI/DIN/JIS)



                      Through-Bolts Compress the Entire Assembly
                      Firmly Across the Pipeline Joint Axis

1. Ultra-Compact Zero-Holdup Area & Low Torque

Because the wafer design eliminates bulky bolted end caps, the internal body volume is compressed down to the absolute minimum. This creates a Zero-Holdup Area inside the valve casing, preventing fluid stagnation, material build-up, or cross-contamination when changing process batches. Paired with a high-strength floating ball concept resting on pre-compressed seats, the internal mechanics ensure an excellent seal with low friction and smooth operational torque.

2. Immediate Visual Verification of Valve Status

Manual operation features an intuitive, fast-acting quarter-turn (90 degree) mechanism. The manual handle or lever lies in perfect alignment with the pipeline flow axis once open. When turned to the fully closed position, the handle sits perfectly vertical to the line, creating a simple, unambiguous visual verification of the valve's status that allows floor operators to check line conditions from a distance.

3. Anti-Blowout Stem & Push-Type Gland

Managing active industrial fluid lines requires uncompromised personal safety boundaries:

• Anti-Blowout Stem: Engineered with an internal, bottom-entry mechanical shoulder that prevents the stem from being ejected or blown out of the stuffing box under unexpected pressure spikes.

• Push-Type Gland Packing: Utilizes a heavy-duty compression gland mechanism that applies uniform downward pressure onto the packing rings, preventing external emissions and extending the valve's service life.

4. Direct Automation Integration (ISO 5211 Pad)

Every valve body incorporates an Integral ISO 5211 Mounting Pad cast directly into the top works as standard. This standardized interface features precise bolt patterns, permitting bracketless, direct-mount installation of pneumatic cylinders or electric motorized actuators. This setup eliminates the cost of custom brackets and simplifies automated system integration.

Metallurgy & Protective Coating Finishes

Achieving a long service life exceeding 100,000 continuous cycles requires matching the valve metallurgy and external protective layers to your specific plant environment:

1. High-Grade Material Configurations

• Body Casing Options: Available in premium Stainless Steel (SS304 / SS316) for superior chemical resistance or Carbon Steel for heavy mechanical strength in water, oil, and gas utilities.

• Internal Ball Trim: Features an ultra-smooth, mirror-finished ball machined from solid SS304 or SS316. This fine surface finish minimizes friction against the seats, reducing operational torque and protecting the seals from premature wear.

2. External Surface Protection Options

To prevent atmospheric corrosion, oxidation, and rust in damp industrial environments, our valves can be finished with specialized exterior coatings:

• High-Build Epoxy Coated Finishes: Provides high resistance to chemical splashes, aggressive process vapors, and washdowns.

• Industrial Painted or Mirror Polished Finishes: Adds a durable, professional finish tailored to meet aesthetic or color-coded plant mapping protocols.

Manual Operation & Automation Vector Options

FlowBiz wafer type ball valves adapt quickly to your exact operational requirements and port constraints:

• Full Bore Flow Profile: The internal path matches the pipeline diameter exactly, ensuring optimal throughput with minimal flow resistance, which reduces pressure loss and increases general pump efficiency.

• Lever Operation Handles: Designed for smaller sizes (1/2" to 4" inches), providing rapid, comfortable manual actuation and swift shut-off capabilities.

• Mechanical Gear Operators: Recommended for larger sizes or high-pressure loops, utilizing gear reduction to provide superior torque mechanical advantage and easier manual handling for precise throttling control.

Frequently Asked Questions (FAQs)

Q: How exactly is a wafer type ball valve installed between standard pipeline flanges?

A: Wafer ball valves are designed with a short, compact face-to-face profile that does not include independent end flanges. To install the unit, simply center and align the valve body between your two existing pipeline flanges. Long through-bolts or studs are then passed completely through both pipe flanges, sandwiching the valve body securely between them. Tightening these bolts to the specified torque compresses the pipeline gaskets against the valve face, creating a strong, leak-proof seal. This streamlined design makes initial installation, tool-free alignment, and routine maintenance quick and simple.

Q: What distinct advantage do PTFE and RPTFE seats provide in utility lines?

A: Premium PTFE (Polytetrafluoroethylene) seats provide near-total chemical inertness, a very low coefficient of friction, and excellent resistance to material pitting. Choosing RPTFE (Reinforced PTFE) incorporates specialized glass fiber or carbon additives into the polymer matrix. This reinforcement enhances mechanical wear resistance, prevents material cold-flow deformation under intensive cycle loads, and ensures a tight, Class VI bubble-tight shut-off across a wide temperature spectrum from -20C to 180C.

Q: Why is a wafer type ball valve considered more economical for light-to-medium industrial plants?

A: Standard flanged valves require significantly more raw metal to cast the two large, independent end flanges, which increases weight and component cost. A wafer type ball valve eliminates this extra bulk entirely, utilizing a short face-to-face body that requires far less raw material to manufacture. This significantly lowers production costs and reduces total shipping weight, passing substantial savings down to the end user while maintaining strict compliance with API 6D and API 598 testing standards.

Q: Why choose FlowBiz as your long-term wafer type ball valve manufacturer?

A: FlowBiz Valves balances precision industrial engineering with efficient, volume-driven manufacturing capabilities. By ensuring every individual valve is rigorously tested to API 598 protocols, utilizing interchangeable spares for low-cost field maintenance, and providing versatile compatibility across ANSI, DIN, and JIS standards, we eliminate operational risks in the field. Our capacity to deliver high-yield, low-maintenance wafer type ball valves makes us a highly dependable supply chain partner across India, Vadodara, and global export markets.

A single relevant question to help guide your system layout selection:

• What is the size of your pipeline, and will your system layout require manual lever handles or automated pneumatic/electric actuators?
