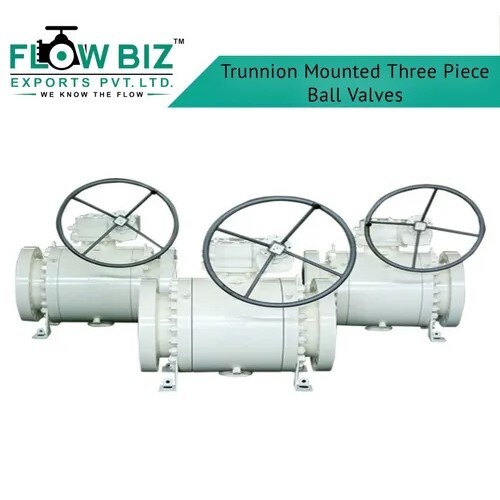

FlowBiz High-Performance Trunnion-Mounted Ball Valves Heavy-Duty Pipeline Isolation

Welcome to the engineering authority for high-pressure pipeline transmission, severe-service hydrocarbon isolation, and large-diameter critical fluid management. Operating advanced multi-axis CNC horizontal boring mills, heavy-duty spherical lapping systems, and certified hydro-pneumatic pressure validation corridors, FlowBiz specializes in manufacturing premium-grade Trunnion-Mounted Ball Valves.

Engineered specifically for high-pressure systems where standard floating ball valves would require excessive operating torque, our trunnion-mounted design incorporates a fixed mechanical anchoring system at both the top and bottom of the spherical core. By transferring the immense fluid pressure load directly into the heavy-duty valve body casing rather than down onto the polymer seats, these units maintain exceptionally low operating torque, deliver absolute bubble-tight shut-off, and extend the working life of critical infrastructure piping lines.

Technical Specifications & Compliance Parameters

Every FlowBiz production lot is precision-machined and subjected to 100% rigorous high-pressure hydrostatic shell testing, double block-and-bleed (DBB) seat validation, and micro-dimensional tolerance audits under global verification benchmarks.

Advanced Structural Metallurgy & Material Matrix

To withstand harsh environments, volatile hydrocarbons, sub-zero temperatures, and aggressive chemicals, FlowBiz offers a comprehensive range of premium casting and forging materials meeting strict ASTM technical specifications:

• Carbon & Alloy Steels: ASTM A216 WCB/A105 (Standard Carbon Steel), ASTM A352 LCB/LCC (Low-Temperature Carbon Steel), and high-tensile Alloy Steels.

• Stainless Steel Alloys: Austenitic Stainless Steels (ASTM A351 CF8 / CF8M / CF3 / CF3M).

• Severe-Service Exotic Metallurgy: Duplex Stainless Steels (such as F51), Super Duplex Stainless Steels (such as F53/F55), Monel, Inconel, and Hastelloy.

Kinematics & High-Pressure Fixed-Trunnion Mechanics

The primary advantage of the FlowBiz trunnion-mounted layout is its fixed-axis mechanical stabilization, which changes how fluid forces are distributed inside the valve cavity:

 OPEN FLOW STATE (QUARTER-TURN CLEARWAY) CLOSED SHUT-OFF STATE (FIXED TRUNNION ANCHOR) [ HIGH-STRENGTH DRIVE STEM ] [ COMPRESSED INJECTION SEAT ] \/ \/ +------------------------+ +------------------------+ | Heavy Packing Gland | | Heavy Packing Gland | +--+------------------------+--+ +--+------------------------+--+ | [ SPRING-LOADED SEATS ] | | [ PRESSURE TRANSFERRED ] | | /---| |---\ | | /================\ | ===================>| | Fixed | |================>|====>| Fixed Ball |<====| High Backpressure High-Pressure Fluid | | Spherical | | Unrestricted Out| | Absorbs Load | | Held Bubble-Tight Media Inflow Stream | | Core | | Full Bore Flow | | Lower Trunnion | | (Low Seat Friction) | \---| |---/ | | \================/ | +----------------------------+ +-----+----------------+-----+ | Lower Anchor Trunnion | | Lower Anchor Trunnion | +------------------------+ +------------------------+

• Fixed-Axis Ball Stabilization: In standard floating ball valves, the ball is suspended by the stem and pushes directly into the downstream seat ring as line pressure rises, which can cause seat deformation and high breakout torque at higher pressures. Our trunnion ball is anchored firmly between top and bottom bearings. When pressure spikes, the ball remains perfectly centered, transferring the mechanical load directly into the heavy casing walls.

• Spring-Loaded, Floating Seat Ring Assembly: Instead of relying on the ball moving to create a seal, our trunnion design uses spring-loaded, floating seat assemblies. These individual seats are continuously pushed against the ball surface by small, heavy-duty springs, ensuring a tight seal even at very low line pressures.

• Double Block and Bleed (DBB) Performance: When the valve is closed, both the upstream and downstream seats seal tightly against the ball simultaneously. This traps pressure inside the central body cavity, allowing operators to bleed off the trapped fluid using a body drain valve to safely confirm seat sealing integrity without taking the pipeline offline.

Core Engineering Features & Plant Benefits

• Smooth, Low-Torque Cycling: Because the ball is anchored firmly on bearings, friction across the sealing rings is minimal. This keeps operating torque low, allowing the use of smaller, more cost-effective automated actuators.

• Secure Leak-Proof Connections: Available with rugged flanged or beveled butt-weld ends to match your standard piping infrastructure, facilitating straightforward installation, mechanical safety, and easy inline maintenance.

• Wide Thermal Tolerance Window: Retains exceptional structural strength and tight sealing capabilities across a broad operating envelope from -40F to 392F, handling freezing gases and high-heat lines reliably.

• Durable Plain Surface Finish: The clean external finish eliminates deep grooves where contaminants could pool, making it easier to clean, maintain, and protect against atmospheric corrosion.

Strategic Industrial Application Sectors

• Oil, Gas, & Petrochemical Transmission: Managing long-distance crude oil transmission headers, natural gas pipelines, and refining tank manifolds.

• Chemical Processing Utilities: Controlling volatile hydrocarbon fractions, organic chemical transfers, and secondary utility networks.

• Water Treatment & High-Capacity Facilities: Regulating main high-pressure raw water intake pipelines, pumping loops, and desalination grids.

• Power Stations & Boiler Management Systems: Handling high-pressure cooling circuits, utility gas distribution headers, and secondary water networks.

Frequently Asked Questions (FAQ)

Q: How does the trunnion mounted ball valve function in different media types?

A: These valves are engineered with a fixed-axis ball core that delivers reliable, low-torque flow control across different media, including air, liquid, gas, and water. The spring-loaded seats maintain continuous contact with the ball, providing a dependable, clean seal regardless of whether the line is carrying a low-density gas or a high-velocity liquid.

Q: What are the benefits of choosing a flanged end ball valve for my application?

A: Flanged end connections provide a robust, leak-proof mechanical joint that can handle intense pipeline tension, pressure surges, and structural vibration well. They bolt directly onto matching standard piping flanges, making installation straightforward and allowing for easy removal when the valve needs routine servicing or inspection.

Q: When should I use a stainless steel trunnion mounted ball valve?

A: You should specify a stainless steel trunnion valve when your pipeline involves high operating pressures, wide temperature variations, and aggressive or corrosive environments. Their design is ideal for chemical plants, offshore oil platforms, and high-purity utility grids where material durability and corrosion resistance are critical to preventing system failures.

Q: Where are these trunnion mounted ball valves manufactured and exported from?

A: All FlowBiz trunnion-mounted valves are manufactured, precision-machined, and rigorously quality-tested at our engineering facilities in Ahmedabad, Gujarat, India. From this central hub, our team manages logistics to deliver certified valves to industrial facilities both domestically and globally.

Q: What is the process of ordering a trunnion mounted ball valve from your company?

A: Placing an order is straightforward. You can contact our technical sales team directly through our website or via email with your project specificationsincluding nominal size, required body and trim metallurgy (such as carbon steel or stainless steel), pressure class, and process fluid. Our engineers will verify your parameters, provide a competitive quote, and coordinate secure delivery.

Q: How does the temperature range of -40F to 392F benefit my operation?

A: This wide thermal operational range allows a single valve design to be used across diverse industrial processes without compromising safety or performance. It enables the valve to operate reliably in sub-zero gas processes as well as high-heat liquid and water utility lines without seat distortion or binding.

Q: What is the primary usage of your trunnion mounted ball valves in industrial applications?

A: Their primary function is to provide dependable, rapid shut-off and separation of high-pressure fluid streams. They are widely used as main isolation valves on long-distance transmission headers, refinery blending manifolds, chemical storage installations, and municipal pumping networks.

Are you updating a high-pressure natural gas manifold that requires an API 6D cast carbon steel trunnion-mounted ball valve, or retrofitting a chemical process header that demands a Class 300 stainless steel configuration with double block-and-bleed capabilities? Contact our technical sales division in Ahmedabad today to secure a factory-direct quote on our High-Performance Trunnion Valves, or ask a single relevant question regarding your specific pipeline velocity or seat material preferences below to guide the conversation forward.
