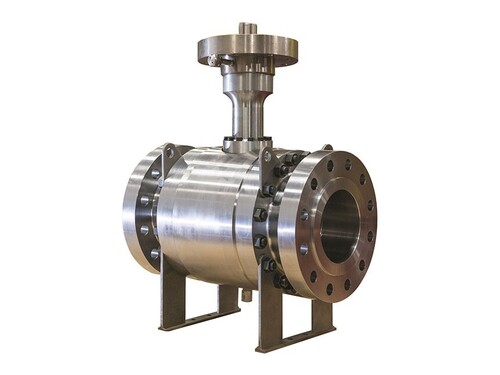

FlowBiz Severe-Service Metal-Seated Ball Valves Extreme Thermal Resilience & Slurry Containment

Welcome to the engineering authority for severe-service process routing, high-temperature fluid isolation, and abrasive slurry containment. Operating advanced automated thermal-spraying cells, precision robotic spherical-lapping complexes, and certified high-temperature validation bays, FlowBiz specializes in manufacturing premium Metal-Seated Ball Valves.

Standard soft-seated valves (utilizing PTFE, RPTFE, or Peek) quickly fail, deform, or char when exposed to extreme thermal spikes, abrasive mining slurries, or sharp catalyst fines. In these demanding conditions, soft seat deformation can cause severe structural locking, dangerous pipeline leaks, and unplanned plant shutdowns that threaten overall profitability. FlowBiz addresses these critical operational vulnerabilities by precision-engineering Metal-to-Metal Seated Ball Valves. By mating a micro-finished, hardened metallic ball directly against replaceable metal seat rings, our valves deliver an incredibly tough, long-lasting containment barrier designed to outshine standard valves in the most demanding industrial environments.

Technical Specifications & Compliance Parameters

Every FlowBiz severe-service metal-seated production block is subjected to rigorous pressure-boundary audits, high-temperature testing profiles, and strict leakage validation before dispatch.

Kinematics & Advanced Surface Hardening Dynamics

Achieving a dependable, tight shut-off while under a continuous onslaught of abrasive particles and high temperatures relies on precision surface engineering and robust mechanical pre-loading:

 [ HIGH-CYCLE PNEUMATIC OR ELECTRIC ACTUATION ] \/ +-------------------|-------------------+ | Standard ISO Pad Direct Automation | +--+---------------------------------------+--+ | [ ANTI-BLOWOUT STEM & HARDENED TRIMS ] | | /---| |---\ | ============> |====> | Replaceable Metal | ====> | ================> High-Temperature| | Seating Rings | | Zero-Leakage Output Slurry Inflow | \---| Hardened Ball |---\ | Clean Downstream Loop +-------------| (Thermal Spray)|----------+ | [ CONTINUOUS PRE-LOADED METAL SPRINGS ] | +------------------------------------------+ (Hardened Metal-to-Metal Seal Contact = Resists Up to 425C)

• Advanced Surface Coating Technology: To prevent metal-to-metal galling and high mechanical friction, the spherical ball and replaceable metal seats are hardened using advanced thermal spray coatings, such as High-Velocity Oxygen Fuel (HVOF) Chrome Carbide or Tungsten Carbide overlays. The coated surfaces are then robotically lapped into matching pairs, ensuring an incredibly close physical fit.

• Continuous Spring-Loaded Pre-Loading: The replaceable metal seats are backed by continuous, high-temperature metal wave springs. These springs apply constant mechanical pressure that keeps the metal seats locked firmly against the polished ball, clearing away slurry deposits or scale buildup during operation while maintaining a tight seal at low pipeline pressures.

• Thermal Expansion Matching: The ball, seats, and outer shell are carefully engineered to match thermal expansion rates. This prevents internal binding or locking as temperatures climb toward 425C, ensuring smooth, predictable operating torque throughout the entire heating cycle.

Strategic Material Selection Matrix

To match your plant's specific chemical exposure, velocity profiles, and operating pressures, FlowBiz offers our metal-seated series in a wide array of premium alloys:

• High-Strength Carbon Steel (e.g., WCB, LCB): The standard selection for high-temperature non-corrosive utilities, high-pressure steam distribution, and general refinery utility piping.

• Premium Stainless Steel (SS304 / SS316): Ideal for aggressive chemicals, oxidizing process lines, and paper pulp processing where high corrosion resistance is required.

• Specialized Duplex & Alloy Steel: Engineered for extreme mining slurry runs, flash-tank separation headers, and abrasive chemical extraction lines experiencing severe wear.

Strategic Industrial Application Sectors

Our Metal-Seated Ball Valves provide critical containment across severe-service industries:

• Petrochemical & Oil Refineries: Regulating high-temperature catalyst cracked lines, vacuum distillation bottoms, and heavy crude manifolds.

• Power Generation Utilities: Controlling high-pressure superheated steam headers, boiler blowdown systems, and condensate return lines.

• Mining & Mineral Processing Skids: Isolating abrasive mineral slurry loops, tailings transport lines, and acidic ore extraction routing.

• Pulp, Paper, & Steel Plants: Managing high-consistency pulp stocks, chemical recovery lines, and steel mill cooling systems.

Frequently Asked Questions (FAQ)

Q: How does a metal seated ball valve benefit high-temperature and abrasive applications?

A: Our valves replace standard polymer seals with robust, hardened metal-to-metal seats capable of withstanding extreme temperatures up to 425C without degrading. The hard face coatings easily resist erosion from abrasive slurries, scale, and solid particulate matter, preventing seat wear and maintaining an absolute, dependable shut-off in severe conditions.

Q: What quality standards and testing protocols do you follow for manufacturing these valves?

A: Every single valve block is designed, manufactured, and inspected in strict accordance with API 6D, BS 5351, and ISO 17292 quality standards. To guarantee total reliability and seat tightness before shipment, every production run undergoes mandatory 100% pressure integrity and leakage validation testing under API 598 protocols.

Q: When should I choose a trunnion mounted versus a floating ball design?

A: A floating ball design is a cost-effective, dependable choice for small-to-medium pipe sizes operating under moderate line pressures. However, for larger port sizes or high-pressure pipelines, a trunnion mounted configuration should be specified. The trunnion support pivot anchors the ball firmly in place, lowering the operating torque and protecting the seats from high axial fluid forces.

Q: Where are your metal seated ball valves typically used?

A: These valves are widely specified across critical process industries where severe service conditions quickly destroy standard soft-seated valves. This includes chemical processing units, petrochemical refineries, power generation stations, mining slurry lines, pulp and paper facilities, and steel manufacturing plants.

Q: What is the process for actuator mounting, and what power operations do you support?

A: Every valve features a built-in ISO top-works mounting pad that standardizes the actuator interface. This allows plant technicians to bolt manual levers, mechanical gearboxes, high-cycle pneumatic cylinders, or smart electric actuators directly onto the valve body, streamlining automation upgrades to meet site-specific requirements.

Q: How can I select the right valve material for my application?

A: Your choice should be guided by your specific process fluid chemistry, peak operating temperature, and maximum system pressure. FlowBiz supplies these valves in carbon steel, stainless steel, duplex steel, and alloy steel. Our engineering team in Ahmedabad is always available to analyze your process criteria and help specify the ideal alloy and hardening overlay configuration.

Are you designing a high-temperature steam utility manifold that requires an API 6D metal-seated ball valve rated for 425C, or retrofitting an abrasive mining slurry skid in Ahmedabad that demands a full-bore duplex steel configuration with a pneumatic actuator? Contact our technical engineering and sales division in Ahmedabad today to secure a factory-direct quote and detailed performance data, or ask a single relevant question regarding your specific process particulate concentration or operating pressure boundaries below to guide the conversation forward.
