FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of heavy-duty Swing Check Valves. Operating through advanced precision-machining and casting infrastructure in Mumbai, Maharashtra, India, we engineer these critical unidirectional safety components to satisfy the rigorous demands of global heavy industry.

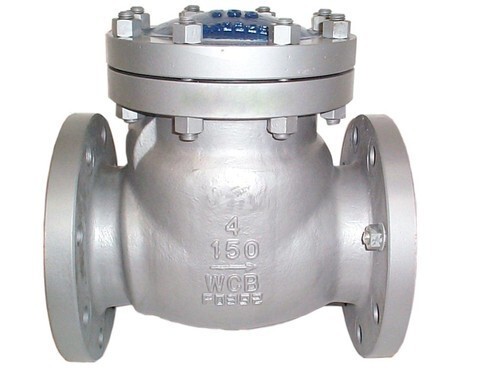

FlowBiz Brand Swing Check Valves are completely automatic, self-actuating safety barriers that open with forward fluid velocity and close instantly with reverse flow. These valves serve as a critical defense line across high-velocity networks, preventing reverse-flow migration that could cause water hammer, spin pumps backward, or cause catastrophic structural failure to upstream rotating equipment.

We maintain a highly responsive domestic and international logistics network, supplying high-performance non-return valves to critical infrastructure projects across Mumbai, pan-India industrial zones, and global export markets.

Technical Specifications & Compliance Matrix

Our industrial swing check production series is precision-machined and rigorously verified to meet or exceed international pipeline and pressure vessel codes:

Mechanical Engineering & Self-Actuated Fluid Dynamics


                   FlowBiz Swing Check Flow Dynamics


                [Forward Fluid Pressure / Velocity Applied]



           SS304 Disc swings upward off the seat on its hinge
            Provides a clear, full-bore, low-resistance path



                   [Upstream Pump Shuts Down / Flow Stops]



           Gravity & reverse fluid velocity swing disc back down
            Firmly seals onto seat face to block backflow


The FlowBiz swing check valve utilizes a simple, highly reliable mechanical design. The internal mechanism features a closure disc mounted to a top-mounted hinge pin. When the upstream pump starts, the forward fluid velocity pushes against the face of the SS304 stainless steel disc, swinging it upward and off the seat ring to provide a clear, full-bore flow path with minimal fluid turbulence and pressure drop.

The moment the pump shuts down or forward flow stops, gravity combined with the weight of the returning fluid forces the disc to swing back down onto the seat face. This rapid mechanical action blocks reverse flow instantly, keeping the pipeline secure.

Strategic Design & Material Quality Features

• Premium SS304 Stainless Steel Discs: The internal swing disc is crafted from high-grade SS304 stainless steel, providing exceptional resistance to chemical corrosion, high-velocity fluid erosion, and mechanical wear. This prevents pitting along the seating boundary, ensuring leak-tight performance.

• Internally Mounted Hinge (2" to 12"): For sizes up to 12 inches, the hinge and lever mechanism are mounted entirely within the valve body casing. This internal configuration eliminates the need for external body penetrations or dynamic seals, completely removing a potential path for fugitive emissions or external tracking leaks.

• High-Security Bolted Cover Architecture: The pressure-retaining body-to-cover joint is secured with high-tensile fasteners and sealed with durable Stainless Steel/Graphite composite gaskets. This heavy-duty design handles rapid pressure shifts and thermal expansion without backing off, while allowing straightforward manual access for cleaning and seat inspection during scheduled shutdowns.

• Tailored Port Customization: Standard factory valves do not always align with old or specialized piping configurations. FlowBiz offers fully customized port sizes and trim configurations, working closely with your engineering team to ensure a precise mechanical fit that optimizes system flow dynamics.

Versatile Performance Across Industrial Media

Our non-return valves are engineered to handle a broad range of process media, including Water, Steam, Gas, Oil, and heavy chemical streams. They perform consistently well in demanding industrial fields:

• Refineries & Petrochemical Complexes: Safely controls high-temperature oil stocks, volatile hydrocarbons, and processing chemicals.

• Power Stations & Utility Systems: Handles continuous thermal cycles up to 200C for high-pressure water circulation, steam headers, and cooling circuits.

• Nuclear Facilities & Water Treatment Plants: Offers dependable backflow prevention where maintaining clean lines and preventing reverse contamination are mandatory for facility safety.

Frequently Asked Questions (FAQs)

Q: Why is an internal hinge design preferred over an external hinge mechanism for intermediate sizes?

A: An external hinge design requires drilling through the valve body wall to mount the hinge pin externally, which introduces a requirement for dynamic packing seals. Over time, high system pressures and thermal shifts can degrade these packings, creating a risk for external tracking leaks. The FlowBiz Internally Mounted Hinge design (available from 2" to 12") seals the entire hinge mechanism completely within the robust forged or cast body walls. This eliminates external packing joints, reduces maintenance needs, and provides maximum safety against external leaks.

Q: What is the process for ordering a customized swing check valve from Mumbai?

A: Sourcing is designed to be highly consultative. Process engineers can contact our technical sales division directly with their application parametersincluding nominal pipeline size, media type, maximum operating pressure, and thermal profile. Our engineering experts will guide you through the material selection, calculate the correct flow area for your system, customize the port dimensions to match your piping specifications, and manage the delivery logistics for your facility.

Q: When should a process facility select a manual check valve configuration?

A: A manual configuration is preferred in systems that require direct, hands-on operator inspection and straightforward maintenance without the complexity of automated lines. It provides a simple, cost-effective solution for facilities where flow reversals are predictable and automation is unnecessary, simplifying your overall system layout.

Q: Why partner with FlowBiz as your long-term swing check valve manufacturer?

A: FlowBiz Valves balances precision severe-service engineering with strict compliance to global validation benchmarks like BS 1868, ASME B16.34, and API 598. By combining traceable, high-grade metallurgies (such as SS304 internal discs) with an extensive pressure spectrum, high thermal resistance, full port customization, and reliable nationwide and international logistics support, we eliminate operational risks in the field. Our focus on reducing system downtime and providing robust backflow prevention makes us a trusted supply chain partner for critical infrastructure projects.

• Will your swing check valve be installed in a horizontal or vertical pipeline run, and what is the maximum operating pressure of your system?
