High-Performance Double Offset Butterfly Valve Manufacturer & Exporter in India

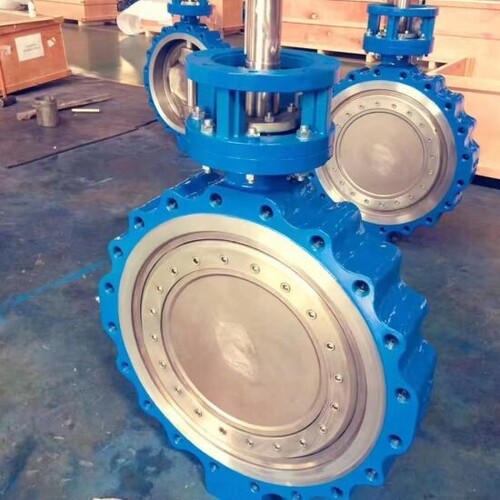

Welcome to FlowBiz, Indias premier manufacturing authority for high-performance fluid isolation technology. We are the definitive manufacturer, supplier, and global exporter of industrial-grade Double Offset (Double Eccentric) Fire-Safe Butterfly Valves (Model: BOD).

With a robust distribution network spanning Ahmedabad, Vapi, Surat, Mumbai, Pune, Chennai, and across India, we deliver engineered valve solutions designed to handle aggressive media, extreme thermal variations, and high-cycle industrial automation loops.

Technical Specifications & Component Matrix

The FlowBiz Model BOD utilizes a double eccentric design where both the shaft and the disc are offset from the valve center line. This geometry allows the disc to "lift" off the seat immediately upon opening, minimizing friction, preventing seat deformation, and dramatically extending the valve's service life.

Premium Metallurgy & Material Options:

• Body & Disc Options: Cast Iron, High-Strength Ductile Iron, Cast Carbon Steel (WCB), Stainless Steel (CF8 / CF8M)

• Shaft / Stem Material: Heavy-duty Stainless Steel SS304, SS316, or Hardened SS410

• Seat Liners: NBR, EPDM, VITON, PTFE, RPTFE (Reinforced Teflon), or TFM

Advanced Automation & Actuation Profiles

To satisfy modern Distributed Control Systems (DCS) and safety interlock requirements, our double offset butterfly valves are primarily paired with high-efficiency Pneumatic Actuators (Quarter-Turn Rotary Double-Acting or Spring-Return).

The Dual Control Configuration:

• Pneumatic Actuation: Delivers rapid, high-torque automated on/off or modulating control via plant compressed air signals.

• Manual Override System: Every automated unit can be configured with an enclosed declutchable worm gearbox manual override. This ensures that plant operators can safely cycle the valve by hand during commissioning, maintenance, or in the event of an external pneumatic power failure.

Key Performance Features & Material Benefits

1. Frictionless Sealing & Class VI Longevity

In standard concentric valves, the disc continuously rubs against the rubber liner, causing rapid wear. Our Double Offset Design ensures that the disc only makes contact with the seat during the final few degrees of closure. This action eliminates friction wear, reduces operational torque requirements, and secures a continuous Class VI bubble-tight seal.

2. Rugged Fire-Safe Structural Integrity

Constructed from high-tensile base metals like WCB or CF8M stainless steel and paired with resilient TFM/RPTFE seats backed by a secondary metal sealing ring, these valves maintain tight pressure containment even when exposed to intense fire conditions.

3. Streamlined Double-Flange Pipeline Integration

Our double-flange configuration conforms precisely to ASME B16.5 boundaries. This robust housing profile distributes pipeline mechanical stresses uniformly, minimizing installation time for maintenance teams and protecting against systemic pipeline sagging or thermal expansion shocks.

Frequently Asked Questions (FAQ)

Q: What is the mechanical advantage of a Double Offset Butterfly Valve over a standard concentric valve?

A: A standard concentric valve disc rubs against its seat through the entire $90^\circ$ travel, leading to seat wear, tearing, and torque increases over time. The Double Offset design features an eccentric shaft layout. When the valve begins to open, the disc immediately cams out of the seat ring without dragging. This design lowers operating torque, extends seat life, and permits usage in high-temperature (up to 220C) and high-cycle automated networks.

Q: How does manual override operation work on a pneumatic actuated valve?

A: For processes requiring fail-safe redundancies, we install a declutchable manual gearbox between the pneumatic actuator and the valve body. Under normal operations, the pneumatic actuator controls the valve via air pressure. If air pressure is lost, an operator simply engages the gearbox clutch lever, allowing manual control of the valve via a handwheel without removing the actuator.

Q: What applications are best suited for a Class VI, 220C rated butterfly valve?

A: These high-performance valves are ideal for critical processes requiring zero-leakage isolation. Typical fields include chemical processing, industrial steam distribution, oil and gas utilities, high-volume water filtration plants, desalination infrastructure, and automated pneumatic air lines where standard rubber-lined valves would rapidly melt or degrade.

Q: What is the significance of Leakage Class VI compliance?

A: Class VI (per ANSI/FCI 70-2) is the highest standard rating for valve seat tight closure. It signifies a "bubble-tight" shut-off, typically measured using nitrogen or air under pressure, ensuring absolutely zero traceable liquid or gaseous bypass downstream when the valve is fully closed.

Q: How can engineering teams in industrial hubs like Vapi source or customize bulk orders?

A: FlowBiz maintains automated production lines capable of executing highly tailored orders. Procurement managers can contact our Vapi sales and technical desks directly. We provide complete material test reports (MTRs), actuator dimension sheets, and specialized sizing services to match your exact pipeline flow velocity and medium parameters at factory-direct pricing.

Are you designing an automated utility line or looking for a dependable price quote for a large-diameter double eccentric valve? Contact our technical engineering division today for custom layout assistance, technical data sheets, and competitive pricing.
