High Performance Wafer Butterfly Valve Manufacturer Vapi Gujarat

FlowBiz Industrial Double Flange & Wafer Butterfly Valves: High-Capacity Flow Management

Large-scale fluid networks, water treatment grids, oil refineries, and gas distribution networks require lightweight, compact isolation valves that deliver zero-leakage performance across expansive pipelines. FlowBiz Exports Pvt. Ltd. fulfills this technical requirement with our advanced engineering line of Double Flange and Wafer Butterfly Valves.

A butterfly valve controls fluid flow via a circular disc mounted on a central rotating shaft. Turning the manual handle or heavy-duty gear operator 90 rotates the disc from a position parallel to the flow (fully open) to perpendicular (fully closed). When fully open, the thin profile of the disc sweeps cleanly into the flow path, allowing for maximum volumetric capacity, a minimal pressure drop P, and full downstream flow. Because of their incredibly narrow face-to-face dimensions, these valves weigh up to70% less than traditional gate or globe valves, drastically reducing piping structural costs and installation footprints.

Technical Specifications & Parameter Matrix

Our butterfly valves are designed, cast, and rigorously verified to meet international standards, ensuring complete dimensional stability.

Advanced Key Features & Engineering Design Dynamics

1. Integrally Molded Seat Liner & Gasketless Installation

The elastomer seat liner on the FlowBiz butterfly valve body is integrally vulcanized and molded directly onto the internal housing. This design stops the seat from shifting, stretching, or bunching up during high-velocity flow cycles. Furthermore, our engineers have extended the seat elastomer over the flange contact faces. This integrated profile completely eliminates the need for separate flange gaskets during field installation, ensuring a perfect, leak-proof mechanical joint.

2. Narrow Land Disc Profile for Low-Torque Operation

To minimize operational friction, the disc edge features a specialized narrow land geometry. This design maintains a tight, bubble-tight seal against the elastomer liner while drastically lowering the mechanical torque required to turn the valve stem. This low-torque capability allows field technicians to operate large-bore lines easily and enables the use of smaller, more cost-effective automated actuators.

3. Multi-Position Locking & Safety Integration

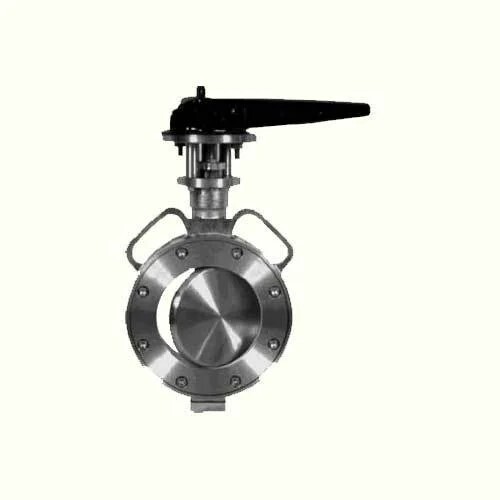

For manual lever-operated models, the valve is outfitted with a heavy notched throttle plate and an ergonomic band lever. This assembly allows operators to lock the disc securely into a fully open position, a fully closed position, or 8 intermediate throttling classes for fine flow modulation. To protect critical utility settings from unauthorized changes or accidental tampering, the hand lever can be securely locked in place using a standard padlock.

Strategic Connection Profiles: Wafer vs. Double Flange

To fit a wide variety of pipeline layouts and maintenance requirements, FlowBiz manufactures two primary body configurations:

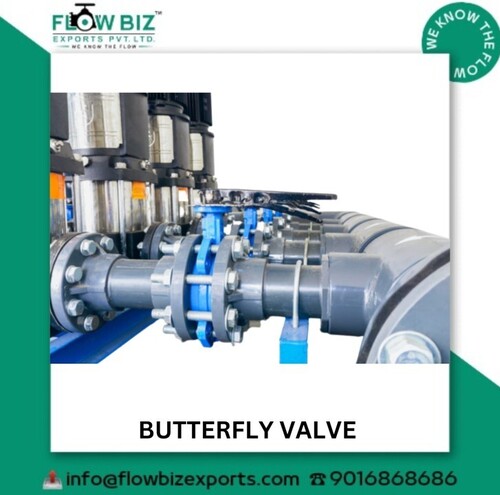

• Wafer Butterfly Valves: Designed for compact, space-restricted spaces. The wafer body is placed directly between two pipe flanges, and long studs pass through the entire pipeline perimeter to clamp the valve in place. This lightweight, cost-effective design is perfect for quick installation and minimal maintenance.

• Double Flange Butterfly Valves: Specified for large-bore pipelines 12 inches to 48 inches and heavy industrial applications. The valve features its own integrated sets of flanges on both sides of the body, allowing it to bolt independently to matching pipe spools. This heavy-duty design provides high joint stability and allows for downstream piping modifications while keeping the valve securely pressurized inline.

Comprehensive Quality Validation and Supply from Vapi

Operating as an integrated manufacturer, exporter, supplier, and trader out of our advanced production facility in Vapi, Gujarat, FlowBiz Exports Pvt. Ltd. delivers certified fluid control solutions worldwide. Every production lot undergoes strict quality monitoring, including material trace validation, mandatory high-pressure hydrostatic shell testing to confirm structural wall density, and dual-direction pneumatic seat-leakage diagnostic testing. This ensures that your equipment arrives on-site fully verified and ready for continuous, zero-leakage service.

Frequently Asked Questions (FAQs)

Q: Why is a stainless steel/ductile iron disc critical for preventing water hammer damages?

A: When a valve closes inside a high-velocity fluid pipeline, the sudden stoppage of mass creates intense kinetic energy feedback known as a pressure surge or water hammer. Brittle or low-grade metal discs can crack or deform under these extreme forces. By utilizing premium stainless steel or high-tensile ductile iron, our valve discs possess the elasticity and structural strength needed to absorb these hydraulic shocks safely, protecting your surrounding pipeline infrastructure.

Q: What is the step-by-step installation process for a wafer butterfly valve?

A: 1. Move the valve disc into a semi-open position before insertion to prevent the disc edge from scraping or catching against the pipe face.

2. Align the pipeline flanges parallel to each other and clear away any dirt, scale, or rust.

3. Center the wafer valve body concentrically between the companion flanges using the universal body alignment lugs. (Remember, do not use separate flange gaskets, as the extended seat liner provides a built-in seal).

4. Insert long flange bolts through the matching holes, threading them manually.

5. Tighten the fasteners progressively in an alternating star-pattern sequence using a torque wrench to ensure even compression across the elastomer face and create a tight mechanical joint.

Q: When is a gear operator recommended over a standard hand lever?

A: Hand levers are highly effective and provide fast, manual operation for small-to-medium sizes up to 6 inches or 8 inches. However, as pipeline diameters scale up to 48 inches , the surface area of the disc increases exponentially, causing the fluid dynamic forces to generate high operating torque. For sizes 8 inches and above, a heavy-duty rotary gear operator equipped with a manual handwheel should be specified. The gear reducer multiplies the manual input force, allowing a single operator to cycle large-bore valves smoothly and safely.

Q: What routine field inspections ensure the maximum service lifespan of an elastomer-seated valve?

A: Because our butterfly valve series features a rugged, self-cleaning internal profile, routine field upkeep is minimal. Plant technicians should periodically check the tightness of the surrounding flange fasteners, visually inspect the external stem packing region for any signs of product weeping, and check that the manual lever or gear wheel moves smoothly through its full 90 travel path.

Q: How can project procurement teams request custom batch allocations or technical submittals?

A: Simply contact our technical sales and project desk with your specific pipeline parametersincluding nominal size (3 to 48 inches), preferred connection profile (wafer or double flange), manual operator preference (lever or gear), media chemistry, and estimated quantities. Our engineering team will evaluate your bill of materials, compile a transparent price quotation, and coordinate production scheduling to ensure your assets are tested and dispatched to align perfectly with your facility's installation timeline.
