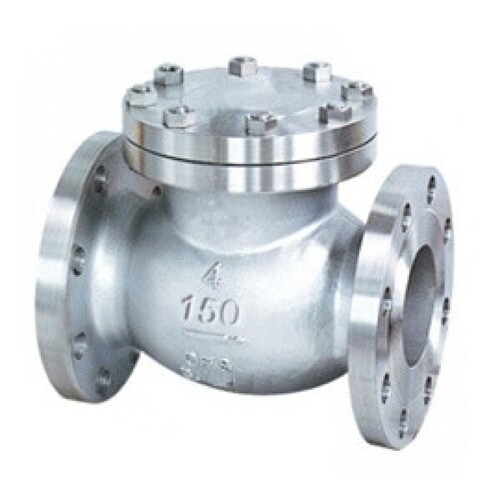

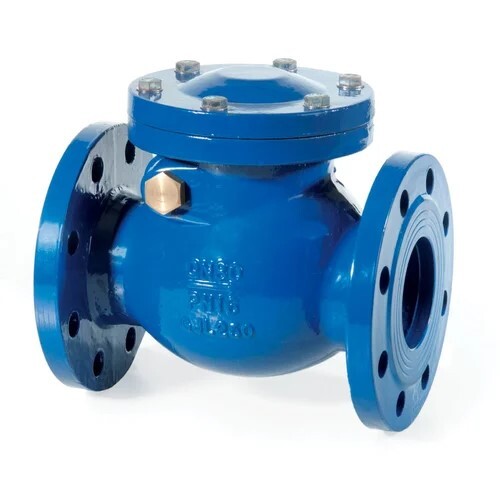

Industrial Cast Iron Non-Return Valves: High-Performance Unidirectional Fluid Control

In industrial fluid distribution networks and continuous process loops, preventing backflow is a primary engineering requirement. A Non-Return Valve (NRV), or check valve, serves as an automatic mechanical barrier that allows gases, oils, or process water to travel in a single direction. When forward flow stops or fluid velocity shifts backward, the valve instantly closes. This protects upstream equipment, such as centrifugal pumps, dosing infrastructure, and filters, from catastrophic pressure surges, line draining, and mechanical shock.

FlowBiz Exports Pvt. Ltd. is a premier global brand and a trusted Non-Return Valve Manufacturer in Pune, Maharashtra, India. We combine top-tier raw materials with advanced manufacturing standards to deliver Cast Iron Non-Return Valves that offer high structural integrity, tight sealing, and long service life.

Technical Specifications & Product Parameters

FlowBiz Cast Iron Non-Return Valves are built to accommodate standard utility layouts as well as heavy-duty transmission lines, offering an adaptable metallurgical and dimensional profile.

Standard Engineering Matrix

Critical Engineering Features & Advantages

1. Robust SS 304 Disc Architecture

Process lines routinely expose internal valve trims to severe erosive wear, oxidation, and pitting. By engineering our internal closure discs out of premium SS 304 stainless steel, FlowBiz ensures maximum protection against corrosion. The smooth, polished disc surface minimizes friction loss and holds a tight, reliable boundary seal over millions of operational cycles.

2. Precision-Engineered for Varied Pressure Loads

Our cast iron valves are manufactured to satisfy international quality norms, providing robust pressure boundaries for both gas fittings and oil fittings. Under varying pressure and thermal load conditions, the uniform thickness of the cast body prevents micro-cracking and structural warping, keeping your fluid dynamics stable.

3. Fully Customizable Port Dimensions

To eliminate the installation hassle of using pipe reducers or adapterswhich induce fluid turbulence and increase system footprintFlowBiz offers fully customizable port sizes. Our Pune-based engineering division designs and fabricates the valve body to match your exact piping specifications, ensuring seamless drop-in integration and optimized flow capacity (Cv).

Strategic Industrial Application Scope

Our heavy-duty cast iron NRVs provide vital protection across critical process and municipal sectors:

• Gas & Oil Fitting Infrastructure: Safely regulating gas mains, vapor paths, and fuel lines to prevent upstream vapor lock or hazardous back-migration.

• Chemical & Petrochemical Processing: Ensuring unidirectional flow across process pipelines handling non-aggressive chemical fluids or wash-water loops.

• Refineries & Power Generation Stations: Safeguarding high-volume boiler feed systems and auxiliary utility distribution networks.

• Water Supply & Wastewater Management Systems: Positioned immediately downstream of lift pumps to eliminate water hammer and pump back-spinning during shutdown phases.

Frequently Asked Questions (FAQ)

Q: What factors dictate choosing between socket weld, butt weld, or flanged end connections?

A: The connection style depends on your pipe diameter, pressure rating, and maintenance requirements. Flanged connections are ideal for larger bore lines (such as our 250-300mm valves) because they offer high structural stability and allow the valve to be quickly unbolted for servicing. Butt weld and socket weld ends are highly preferred for smaller pipelines (50-100mm) and critical gas or oil fitting applications where a permanent, absolutely leak-proof joint is necessary to eliminate fugitive emissions.

Q: How does the SS 304 disc enhance valve performance in aggressive water or petrochemical lines?

A: Untreated process water and petrochemical fluids often contain dissolved oxygen, trace sulfur, or chemicals that can cause rapid pitting and rust scale on standard metals. An SS 304 disc creates a natural chromium-oxide passive layer that halts chemical corrosion. This keeps the sealing faces smooth, ensures low-torque movement, and prevents the disc from seizing or binding inside the valve chamber.

Q: What is the step-by-step process for purchasing a customized non-return valve from your Pune facility?

A: The procurement process is highly streamlined for global buyers:

1. Technical Inquiry: Sourcing teams provide their exact system criteria, including media type (gas, oil, or water), size requirements (e.g., 50-100mm or 250-300mm), connection style, and pressure ratings.

2. Design Configuration: Our Pune-based engineering team configures the internal bore and port geometry to match your existing framework perfectly.

3. Quality & Compliance: The valves are precision-cast, CNC-machined, and subjected to hydrostatic pressure testing.

4. Global Distribution: As a certified manufacturer, exporter, and supplier, FlowBiz packs the certified units securely for prompt domestic delivery across India or international freight shipping.
