Industrial Cast Iron Non-Return Valves: Working Principles, Specifications, and Technical Standards

In modern fluid distribution networks and process pipelines, preventing reverse fluid flow is a critical engineering requirement. A Non-Return Valve (NRV), commonly referred to as a check valve, serves as an automatic mechanical barrier that allows gases, oils, or water to flow in a single direction while instantaneously halting backflow. This automatic protection shields upstream pumping machinery, filters, and sensitive instrumentation from back-pressure surges and mechanical shock.

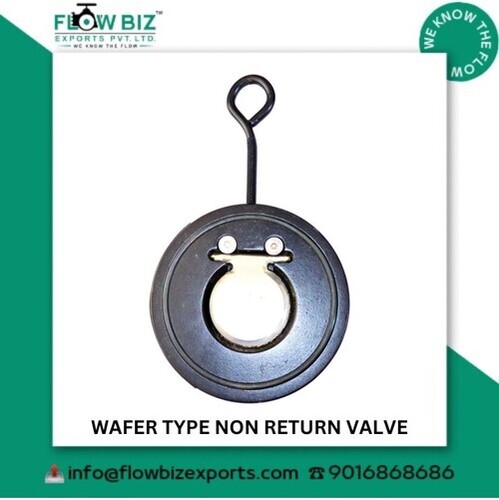

FlowBiz Exports Pvt. Ltd. is a leading Non-Return Valve Manufacturer in Vapi, Gujarat, India. We specialize in engineering heavy-duty Cast Iron Non-Return Valves built to satisfy rigorous industrial quality frameworks, providing reliable, leak-proof performance across domestic and international markets.

Technical Specifications & Product Parameters

FlowBiz Cast Iron Non-Return Valves are manufactured using high-grade raw materials and advanced casting techniques, ensuring excellent structural density and dimensional accuracy.

Key Engineering Matrix

Critical Features & Engineering Excellence

1. Compliance with Global Engineering Codes

To ensure absolute reliability and drop-in dimensional compatibility with international piping headers, our valves are designed and certified in strict compliance with BS (British Standards), ANSI (American National Standards Institute), DIN (Deutsches Institut fr Normung), and IS (Indian Standards).

2. High-Integrity Hydrostatic Testing

Before leaving our Vapi facility, every single valve casing and seating area undergoes rigorous hydrostatic pressure testing in line with the specified international standard. This destructive and non-destructive quality verification guarantees a leak-proof, zero-passing seal under varying system load conditions.

3. Advanced Protective Coatings and Finishes

Cast iron components operating in humid or chemically aggressive environments require heavy-duty surface shielding. FlowBiz offers specialized, high-durability external and internal finishes to maximize service life:

• Fusion-Bonded Epoxy (FBE): Provides an impervious barrier against localized chemical attacks and corrosion.

• Hot-Dipped Galvanized (HDG): Delivers outstanding atmospheric rust prevention, ideal for outdoor or marine installations.

• Industrial Painted/Natural Surface: Optimized for standard indoor gas and utility infrastructure.

4. Custom Gasket Seating Configurations

The internal sealing performance of an NRV relies heavily on its gasket profile. Depending on the chemical nature, maximum operating pressure, and temperature of your media, FlowBiz offers customizable gasket selections:

• PTFE (Teflon): The premier choice for total chemical inertness and low-friction operation.

• Spiral Wound Gaskets: Reinforced with metallic windings to excel in high-pressure steam and oil fittings.

• Asbestos-Free Gaskets: Specially selected to satisfy environmental safety mandates and standard water lines.

Strategic Industrial Application Scope

• Gas & Oil Fitting Infrastructure: Safely regulating gas mains and petroleum fuel transfer lines, preventing downstream vapor lock or reverse contamination.

• Water Supply & Treatment Facilities: Positioned immediately after high-volume water distribution pumps to eliminate pump back-spinning during shutdown cycles.

• Chemical Processing & Petrochemical Plants: Ensuring safe, unidirectional isolation of non-aggressive chemical streams.

• Steam and Utility Loops: Serving as reliable backflow prevention in utility networks to protect low-pressure boiler vessels.

Frequently Asked Questions (FAQ)

Q: What factors dictate whether I should select a flanged, threaded, or socket weld end connection?

A: The choice is driven by your system pressure, pipeline diameter, and maintenance access requirements:

• Flanged Ends: Ideal for larger bore sizes (such as our 250-300mm valves) and high-pressure networks because they provide strong structural support and allow for quick removal during pipeline maintenance.

• Socket Weld & Butt Weld Ends: Perfect for critical, high-purity oil or gas lines where a permanent, absolutely leak-proof welded connection is required.

• Threaded Ends: Best suited for compact spaces, low-pressure applications, and smaller pipelines (50-100mm).

Q: Can FlowBiz Cast Iron Non-Return Valves be installed vertically?

A: Yes. Our NRVs are precision-balanced to perform reliably in both horizontal and vertical pipeline layouts. When executing a vertical installation, ensure that the process fluid flows upward so that gravity naturally assists the internal closing member in snapping securely back onto its seat the moment forward flow stops.

Q: How does the choice of gasket material influence the operational safety of the valve?

A: Gaskets serve as the critical boundary seal. Selecting PTFE prevents premature chemical degradation when handling aggressive chemical vapors or hydrocarbons. Spiral Wound gaskets provide the necessary structural resilience to withstand thermal cycling and high pressures without blowing out. Selecting Asbestos-free gaskets ensures your facility complies with clean-water environmental regulations.

Q: What is the technical procurement pipeline for clients sourcing from Vapi?

A: Procurement teams and engineering contractors can submit their specific application profilesincluding line size (e.g., 50-100mm or 250-300mm), connection standard (ANSI, DIN, BS, or IS), required surface finish, and target media properties. Our Vapi-based technical team generates a comprehensive proposal and manufacturing schedule. Following final assembly, hydrostatic testing, and certification, the valves are safely securely packed for prompt domestic or international freight dispatch.
