Premium Stainless Steel Butterfly Valves Manufacturer & Exporter FlowBiz Exports

Welcome to FlowBiz Exports, a premier destination for manufacturing excellence in fluid isolation and control infrastructure. Headquartered with advanced production facilities in Anand, Gujarat, we are a leading manufacturer, supplier, and global exporter of high-performance Stainless Steel Butterfly Valves.

Our comprehensive sales and logistics network seamlessly supplies major industrial zones across Indiaincluding Anand, Rajkot, Ahmedabad, Vapi, Surat, Mumbai, Pune, and Chennaialongside dedicated freight shipping to global international markets.

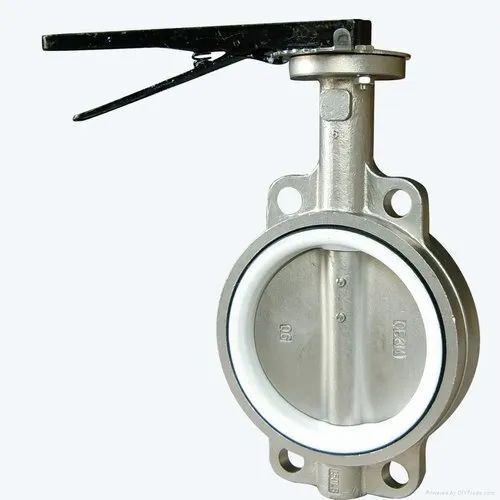

FlowBiz Butterfly Valves utilize a compact, low-torque, quarter-turn (90) rotational design to start, slow, or completely isolate fluid streams. Featuring a single, precision-machined circular disc rotating on a central diametrical axis inside the pipe, these valves excel at handling massive volumetric capacities with minimal spatial footprint.

Technical Specifications & Installation Profiles

Our stainless steel butterfly valves are engineered to drop seamlessly into standard pipeline arrays, minimizing both the physical weight and the overall structural support required by your piping network.

Key Performance Features & Material Advantages

1. Premium Grade Stainless Steel Construction

Cast and forged from high-grade stainless steel (CF8/CF8M), our valves offer superior protection against chemical pitting, atmospheric oxidation, and aggressive process media. This ensures long-term structural stability and prevents internal oxidation or wall-thinning in high-velocity utility networks.

2. Low-Pressure, High-Volume Gas Mastery

Our butterfly valves are uniquely optimized for handling large, low-pressure gas and airflow streams, such as those found in industrial blower systems and HVAC networks. The slim, aerodynamic profile of the circular disc presents minimal resistance to the fluid stream when fully open, ensuring maximum efficiency and minimal head loss.

3. Streamlined Manual Operation

Equipped with an intuitive, multi-position manual hand lever or an enclosed mechanical worm gearbox, our valves allow plant operators to rapidly adjust system dynamics. A swift 90 rotation effortlessly moves the disc from fully open to a bubble-tight, leak-proof closure.

Versatile Cross-Industry Applications

FlowBiz stainless steel butterfly valves are highly sought after by project managers and process engineers across:

• Industrial Blower & Air Systems: Regulating high-volume, low-pressure air distribution loops, intake lines, and gas manifolds.

• Chemical & Pharmaceutical Plants: Safe, corrosion-resistant containment of aggressive raw ingredients, process chemicals, and pure utilities.

• Water & Wastewater Treatment: High-frequency cycling in municipal filtration networks, desalination loops, and pump stations.

• Food, Beverage, & Dairy Processing: Sanitization-ready isolation of bulk utility lines and process water.

Frequently Asked Questions (FAQ)

Q: Why is a stainless steel butterfly valve preferred over a standard gate or ball valve?

A: Butterfly valves have a highly compact face-to-face dimension and weigh a mere fraction of what a ball or gate valve of the same nominal diameter weighs. This eliminates the need for expensive structural pipe hangers or foundations, drastically lowers freight costs, simplifies routine installation, and offers a highly economical alternative for large-diameter pipelines.

Q: What is the primary operational advantage of the manual handle mechanism?

A: For smaller line sizes (typically up to 6 inches), a manual notch-indexed hand lever provides instant tactile feedback and rapid open/close control. The lever allows an operator to lock the disc at specific angular intervals to throttle or slow the medium. For larger sizes where fluid torque is higher, we substitute the lever with an enclosed gear operator for smooth, mechanical-advantage control.

Q: Can these butterfly valves handle aggressive chemical washdowns and outdoor environments?

A: Yes. Because the entire body housing and internal disc are manufactured from premium stainless steel rather than painted cast iron, the valve is completely immune to external paint flaking, atmospheric oxidation, coastal salt-spray, and aggressive chemical cleanings common in sterile pharmaceutical or chemical plants.

Q: What is the connection standard for installing these valves into an active system?

A: Our standard valves feature a compact wafer type round design. The valve is sandwiched directly between two standard pipeline flanges (such as ASME B16.5 Class 150) using heavy-duty bolts that span across the entire exterior of the valve body. The resilient elastomeric seat extends slightly past the metal faces, acting as an integrated flange gasket to ensure a zero-leakage radial seal.

Q: How can domestic and international procurement teams place bulk orders with FlowBiz?

A: Sourcing can be initiated by contacting our Anand sales headquarters directly through our official corporate phone lines or digital web portal. Our technical application engineers will assist you with valve sizing, liner elastomer material matching (EPDM, Nitrile, or Viton), and pressure-class validation to ensure seamless system compatibility at factory-direct B2B pricing.

Are you optimizing a high-volume blower network or upgrading a corrosion-prone water line? Contact our Anand sales office today to receive comprehensive technical datasheets, certified dimensional drawings, and a personalized commercial proposal.
