Fabricated Butterfly Valve Exporter from Vapi India

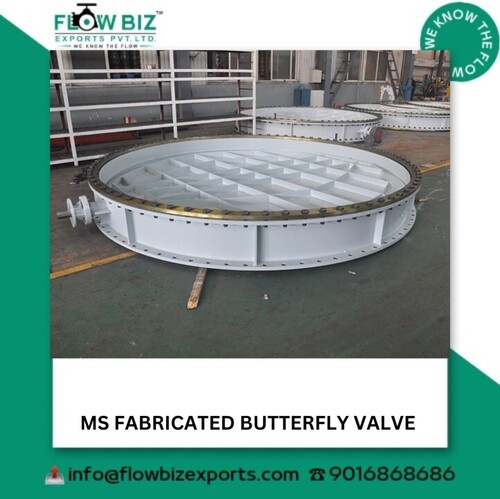

FlowBiz MS Fabricated & Stainless Steel Large-Bore Butterfly Valves: Engineered for Mega-Pipeline Infrastructure

When managing massive fluid volumes in heavy industries, standard cast valves often fail to meet the structural demands or dimensional footprint required for the pipeline. FlowBiz Exports Pvt. Ltd. solves this engineering challenge with our premium range of MS Fabricated and Stainless Steel Butterfly Valves. Engineered utilizing state-of-the-art computational fluid dynamics and high-penetration welding protocols, these massive quarter-turn valves are custom-built for multiple, high-frequency ON/OFF operations in extensive pipeline networks requiring full-flow downstream capacity.

Operating out of our primary manufacturing facility in Vapi, Gujarat, we specialize in ultra-large-bore valve fabrication. Ranging in size from 50 inches to 104 inches 1250 mm to 2600 mm, these heavy-duty valves are the premier choice for large-scale infrastructure projects globally, ensuring low pressure drops and high operational longevity.

Technical Specifications & Structural Matrix

Critical Application Sectors

Our large-diameter fabricated butterfly valves are meticulously designed to handle the rigorous demands of critical heavy-industry loops:

• Power Generation Plants: Managing main condenser cooling water loops and thermal discharge lines.

• Water Treatment & Distribution: Serving as main isolation barriers in municipal water grids and desalination plants.

• Process Utilities: Extensively utilized in Distilleries, Paper & Pulp mills, Sugar refineries, and large-scale HVAC water networks.

• Chemical & Pharmaceutical Plants: Handling high-volume utility lines where structural corrosion resistance and material purity are mandatory.

Key Performance & Design Advantages

1. Superior Forged/Fabricated Structural Integrity

Unlike standard concentric cast valves which can harbor internal sand holes or structural wall variations, the FlowBiz fabrication process utilizes precision-rolled and welded structural steel plates. This structural design guarantees completely uniform wall thicknesses capable of safely absorbing immense hydraulic pipeline shocks, pipeline bending stresses, and high system pressures without weeping.

2. High-Torque Hydraulic Operation

Moving a massive 104-inch disc against high-velocity fluid streams requires immense physical power. Our integrated hydraulic actuation systems convert fluid pressure into reliable, consistent linear or rotary thrust. This automated control setup provides precise micro-positioning, features built-in dampening to eliminate dangerous pipeline water hammer, and completely removes the need for impractical manual labor.

3. Leak-Proof Double-Flanged Connection

Large-bore pipelines carry thousands of tons of fluid weight, which can cause significant pipeline deflection. The integrated double-flanged end profile allows the valve to be securely bolted directly to matching pipeline flanges. This configuration creates a highly rigid, uniform, and leak-proof joint that simplifies inline maintenance by allowing adjacent pipe spools to be disconnected without destabilizing the valve structure.

Frequently Asked Questions (FAQs)

Q: Why are fabricated steel butterfly valves preferred over traditional cast iron options for ultra-large diameters?

A: At diameters exceeding , 50 inches standard cast iron valves become extremely brittle, phenomenally heavy, and prone to internal casting defects like porosity or cooling cracks that can fail under high pressure. Fabrication using rolled structural steel allows FlowBiz engineers to design a valve that is significantly lighter, possesses superior ductile strength, and can be custom-tailored to exact face-to-face field dimensions without relying on expensive casting molds.

Q: How does hydraulic actuation maximize the service life of large-diameter butterfly valves?

A: Massive discs face immense fluid torque when closing against high-velocity streams, which can cause manual gearboxes or electric motors to strip gears or overheat. Hydraulic cylinders deliver an incredibly smooth, continuous, and high-torque stroke. This steady power delivery prevents erratic disc chattering, minimizes component friction on the valve stem bearings, and allows for rapid or controlled emergency shutdown closing cycles.

Q: When should a process engineer specify a fabricated stainless steel disc and body over mild steel?

A: Fabricated stainless steel should be selected when the pipeline handles aggressive mediasuch as chlorinated water, acidic slurries, or volatile chemical compoundsor when operating in high-heat scenarios where mild steel would undergo rapid surface scaling and oxidation. Stainless steel ensures absolute chemical compatibility, preserves media hygiene, and eliminates the risk of localized pitting corrosion.

Q: What explicit quality verification controls are implemented during the Vapi fabrication process?

A: Every single large-bore valve undergoes strict quality assurance phases at our Vapi hub. This includes 100% radiographic or ultrasonic inspection of all critical structural weld joints, mandatory hydrostatic shell pressure testing to verify structural thickness, and pneumatic seat-leakage diagnostics to ensure compliance with strict international safety benchmarks (such as API 598 or ISO 5208) before shipping.

Q: Can these large-bore butterfly valves be customized for unique pipeline configurations?

A: Yes. Because our valves are completely fabricated rather than cast, our engineering team can modify the face-to-face dimensions, change the flange drilling standards (ANSI, BS, DIN, or ISO), or add specialized internal corrosion-resistant alloy (CRA) overlays to match the exact requirements of your existing infrastructure.

Optimize Your High-Volume Flow Systems Today

Are you planning a major facility expansion, a municipal water pipeline, or an emergency valve replacement turnaround? Contact the engineering and sales desk at FlowBiz Exports Pvt. Ltd. today. Our specialists will evaluate your technical layout, flow velocities, and pressure profiles to deliver a custom blueprint and a competitive, fast quotation.
