Heavy-Duty Plug Valves Manufacturer & Exporter FlowBiz Export Private Limited

Welcome to FlowBiz Export Private Limited, a premier engineering authority for high-integrity fluid isolation and flow diversion systems. Headquartered with advanced production facilities in Anand, Gujarat, we are a leading manufacturer, supplier, and global exporter of industrial-grade Plug Valves.

Our robust sales and logistics network seamlessly supplies major industrial zones across Indiaincluding Anand, Rajkot, Ahmedabad, Vapi, Surat, Mumbai, Pune, and Chennaialongside dedicated freight shipping to global international markets.

Technical Specifications & Geometry Matrix

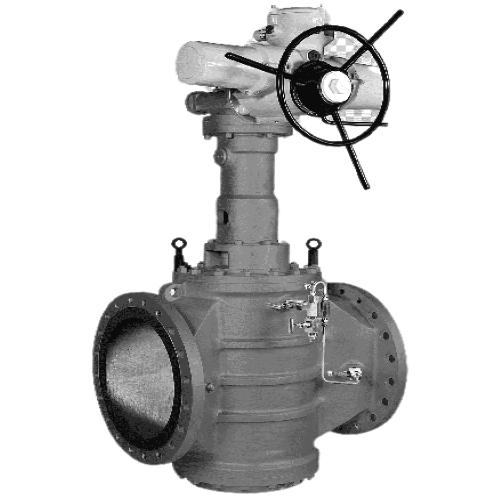

FlowBiz Plug Valves utilize a quarter-turn rotational design featuring a precision-machined internal plug. The plug contains a straight-through center bore; rotating the mechanism 90 aligns this port parallel to the pipeline to permit full, unhindered fluid transmission, or perpendicular to establish a tight, leak-proof barrier.

Key Performance Features & Material Advantages

1. Robust Cast Iron Construction

Our plug valve housings are cast from high-grade iron, providing excellent structural rigidity, dense wall thickness, and superb vibration-damping properties. This robust metallurgy easily withstands pipeline mechanical stresses and minor structural sagging common in complex factory installations.

2. High-Efficiency Pneumatic Automation

To satisfy modern industrial automation frameworks, our valves are equipped with premium Pneumatic Actuators. Utilizing plant compressed air signals, the pneumatic system delivers immediate, high-torque rotary action, making these valves perfect for automated emergency shut-off or high-frequency fluid diversion sequences.

3. Cavity-Free Sealing Profile

Unlike standard ball valves that feature internal blind cavities where process media can stagnate, settle, or solidify, a plug valve presents an exceptionally dense, continuous sealing area. This design makes them uniquely resilient when handling thick fluids, slurries, or media containing suspended solid particles.

Core Industrial Applications

FlowBiz plug valves are optimized for versatile fluid handling across a wide array of utility networks:

• Gas & Liquid Fuel Handling: Safe, tight-closure containment of fuel oil lines and low-pressure gas utility lines.

• Slurry & Suspended Solids Processing: Reliable transport of industrial wastewater, paper pulp, and mild process effluents.

• Chemical Processing & Utilities: Directional flow control of non-aggressive process chemicals and cooling water loops.

• Water Treatment Plants: Efficient isolation and routing within municipal filtration and water treatment frameworks.

Frequently Asked Questions (FAQ)

Q: How does a pneumatic actuated plug valve operate within an automated piping network?

A: A pneumatic plug valve replaces manual handles with a rotary air actuator mounted directly to the valve stem. When the plants automated control system sends a compressed air signal to the actuator, the internal piston converts linear force into a precise $90^\circ$ rotation. This moves the internal plug port into alignment with the pipe bore, establishing rapid open or closed cycles.

Q: What is the primary operational advantage of choosing a plug valve over a standard gate valve?

A: Gate valves require multiple turns of a handwheel to raise or lower a wedge disc, making them slow to operate. A plug valve achieves absolute closure with a simple, rapid quarter-turn ($90^\circ$) motion. Furthermore, plug valves offer far superior resistance against erosion when handling slurries or liquids carrying suspended solid grit.

Q: When should a tapered conical plug design be selected over a cylindrical plug design?

A: Conical or tapered plug valves are highly preferred when long-term maintenance simplicity is a priority. The tapered geometry allows the plug to sit firmly into the seat under direct downward compression. If minor seat wear occurs over thousands of operational cycles, the plug can be adjusted downward mechanically to restore a bubble-tight seal without replacing internal parts.

Q: What routine maintenance practices ensure the long lifecycle of a cast iron plug valve?

A: While FlowBiz plug valves are engineered as low-maintenance components, executing a scheduled maintenance routine dramatically extends their lifecycle. This includes verifying pneumatic air pressure consistency, checking the stem packing seals for micro-leaks, and performing periodic lubrication of the moving metal interfaces to ensure low operating torque.

Q: How can domestic and international procurement teams place an order with your Anand facility?

A: Sourcing can be initiated by contacting our technical sales desk in Anand, India directly via our official corporate phone lines or email portal. Our application engineers provide expert guidance regarding proper valve sizing, material selection, and actuator matching to ensure full compatibility with your project parameters, backed by competitive B2B factory-direct pricing.

Are you optimizing a centralized wastewater loop or designing an automated fuel gas handling manifold? Contact our Anand sales office today to receive comprehensive technical data sheets, certified dimensional drawings, and a personalized commercial proposal.
