About Industrial Globe Valve Supplier Mehsana Gujarat

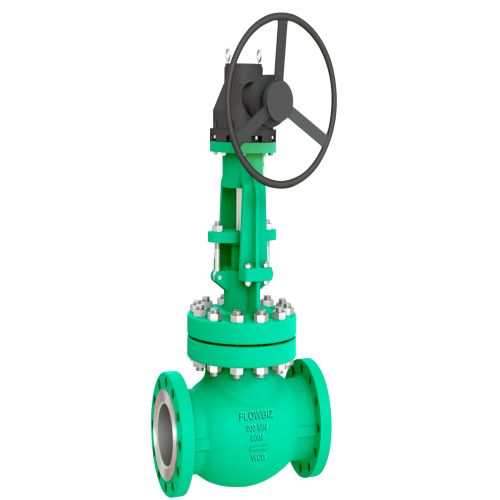

High-Precision Cast Iron Globe Valves FlowBiz Export Private Limited

Welcome to FlowBiz Export Private Limited, a certified manufacturing pioneer in fluid isolation and precise linear throttling technology. Headquartered with an advanced production facility in Mehsana, Gujarat, we are a leading manufacturer, supplier, and global exporter of industrial-grade Cast Iron Globe Valves.

Our robust sales and logistics framework seamlessly serves critical processing zones across Indiaincluding Mehsana, Ahmedabad, Vapi, Surat, Mumbai, Pune, and Chennaialongside dedicated freight shipping to international global markets.

FlowBiz Globe Valves are specifically engineered to regulate flow, control system pressure, and manage fluid dynamics in utility pipelines. Featuring a heavy-duty spherical body design, these valves provide the fine modulating capabilities that standard gate or ball valves cannot deliver.

Technical Specifications & Product Architecture

Inside a globe valve, the fluid is directed through a tortuous path across an internal horizontal baffle seat. The plug disc moves vertically perpendicular to the seat, ensuring a linear relationship between handwheel rotation and volumetric flow rate.

Parameter	Product Engineering Specifications
Size Spectrum	Comprehensive range from 1/2" up to 12" (DN15 to DN300)
Body Construction	High-Strength Cast Iron (ASTM A126 Class B / GG25)
Exterior Protection	High-build, anti-corrosive industrial green epoxy coating
End Connections	Standard Raised-Face Flanged Profiles (ASME B16.1 / DIN Flanges)
Actuation / Control	Handwheel-driven precise manual operation or automated mount
Primary Capabilities	Continuous throttling, flow modulation, and absolute shut-off
Testing Standards	100% hydrostatically and pneumatically verified to API 598 codes

Core Engineering Features & Design Advantages

1. Superior Throttling & Modulating Mastery

The primary advantage of the FlowBiz globe valve is its excellent fluid-throttling capability. Because the distance between the plug disc and the stationary seat ring is directly proportional to the linear travel of the stem, operators can precisely tune fluid velocity, control system backpressure, and safely eliminate line surges.

2. Shorter Linear Stroke for Fast Cycling

Compared to a standard gate valve of an equivalent port diameter, a globe valve requires significantly fewer turns of the manual handwheel to shift from fully closed to fully open. This shorter linear stroke reduces routine operation time, minimizes packing friction wear, and speeds up plant sectionalization.

3. Simplified Inline Maintenance & Lower Leakage Rates

The internal seating architecture of a globe valve makes it highly economical over its operational lifecycle. Because the seating faces seal flat against each other without sliding friction, they experience significantly lower wear rates than gate valves. If wear occurs from abrasive media, the stationary seat and plug disc can be quickly lapped, machined, or replaced right through the top bolted bonnet cavity.

4. Rugged Cast Iron Housing & Protective Green Coating

Cast from premium-grade cast iron, our valve bodies possess excellent vibration-damping properties and high structural rigidity. To combat external oxidation, atmospheric moisture, and chemical splashes in humid plant environments, each casting is sandblasted and finished with a robust, baked-on green industrial epoxy coating, drastically extending the valve's service life.

Strategic Cross-Industry Applications

FlowBiz cast iron globe valves are specified worldwide by plant operators and utility engineers across medium-pressure process networks:

• Cooling Water Systems: Regulating large-volume chiller lines, heat exchanger flows, and auxiliary cooling tower circuits.

• Fuel Oil Management: Critical control points, burner supply manifolds, and heavy fuel oil transmission loops.

• Low-Pressure Steam & Utility Lines: Auxiliary heating loops, condensation return systems, and boiler feed lines.

• Manufacturing Facilities: Main feedlines for utility water distribution, raw water storage grids, and general processing plants.

Frequently Asked Questions (FAQ)

Q: Why do globe valves introduce a higher pressure drop compared to full-bore gate valves?

A: Inside a globe valve, fluid cannot travel in a straight line; it is forced to make two sharp 90 turns up and through the internal baffle seat. While this tortuous path creates an exceptional environment for precise fluid throttling and control, it inherently introduces a higher pressure drop (head loss) across the valve. This hydraulic resistance must be accounted for during system pump sizing.

Q: Why is a cast iron body preferred for cooling water and fuel oil systems?

A: Cast iron (such as GG25) offers an ideal balance of high tensile strength, structural rigidity, and exceptional natural vibration damping at an economical price point. For non-corrosive, medium-pressure liquids like treated cooling water and fuel oils, a high-grade cast iron valve provides decades of reliable operation without requiring expensive stainless steel or exotic alloys.

Q: What is the benefit of manual operation for these globe valves?

A: Precision-machined, multi-turn manual handwheels provide operators with absolute, granular control over flow rates without the risk of rapid "valve slamming" (which causes destructive water hammer). Manual operation is highly reliable, cost-effective, and ideal for systems requiring hands-on adjustments or setup changes where complex automated infrastructure is impractical.

Q: What is the significance of the directional arrow marked on the globe valve body?

A: Globe valves are strictly directional. They are designed to receive fluid forces in a specific orientationtypically entering underneath the plug disc. Installing the valve in reverse forces the pipeline pressure to push down on top of the disc when closed, putting immense stress on the stem threads and gland packing, which can lead to premature packing failure and difficult manual operation.

Q: How can domestic procurement managers and global suppliers coordinate bulk sourcing from Mehsana?

A: Sourcing can be initiated by contacting our dedicated corporate sales office in Mehsana, India. As a fully unified manufacturer, supplier, and exporter, FlowBiz manages a highly efficient international logistics division that handles custom clearance documentation, sea/air freight configurations, and secure packaging. Our technical application team is available to assist you with valve sizing and pressure mapping to ensure a flawless drop-in fit, backed by factory-direct B2B pricing.

.

Are you optimizing a centralized cooling tower manifold or upgrading a heavy-duty fuel oil blending loop? Contact our Mehsana sales and engineering division today to receive comprehensive technical data sheets, certified dimensional layouts, and a personalized commercial proposal.
