Heavy-Duty Cast Iron Gate Valves Manufacturer & Exporter FlowBiz Exports

Welcome to FlowBiz Exports, an industry-leading manufacturer, supplier, and global exporter of high-precision fluid isolation solutions. Based out of our advanced manufacturing hub in Amreli, we engineer premium-grade Cast Iron Gate Valves designed to deliver absolute isolation and zero-leakage shut-off in critical industrial, municipal, and infrastructure pipelines across India and international markets.

Technical Specifications & Structural Anatomy

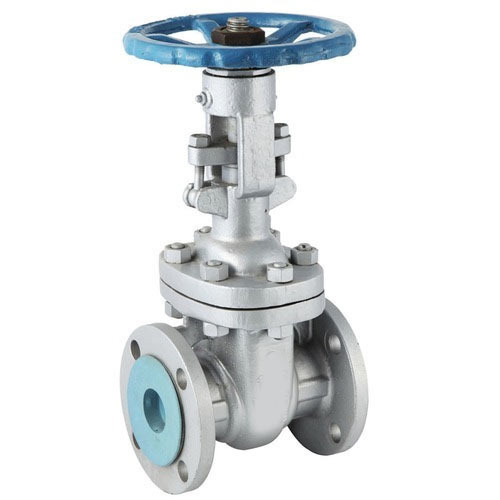

FlowBiz Gate Valves are engineered for straight-line fluid flow. When fully open, the gate is completely lifted into the valve bonnet, creating a full-bore pathway that minimizes friction and keeps pressure drop near zero.

Core Engineering Insight: Why Gate Valves are Strictly for On/Off Isolation

It is a vital engineering rule that gate valves must never be used to regulate, throttle, or modulate flow. A gate valve is designed to operate strictly in a fully open or fully closed position.

If a gate valve is left partially open, the high-velocity water stream strikes the lower edge of the wedge disc with immense force. This fluid dynamic causes severe seat chatter, structural vibration, and rapid erosion (known as wire-drawing) of both the disc and the seat rings. Once these seating faces are eroded, the valve permanently loses its ability to form a tight shut-off, rendering it useless for system isolation. For flow regulation, a globe or diaphragm valve must be specified.

Key Performance Features & Material Advantages

1. Robust Cast Iron Metallurgy

Our valves are cast from high-strength iron, providing excellent structural rigidity and high resistance to mechanical stresses, pipeline sagging, and hydraulic water hammer. The external protective gray coating acts as a durable barrier against atmospheric rust and aggressive ambient moisture.

2. Full-Bore Design with Zero Pressure Drop

When the handwheel is turned to open the valve, the internal wedge gate withdraws completely out of the flow stream. Because there are no internal baffles or obstructions left in the path, the fluid behaves as if it is passing through a straight pipe, maintaining maximum pumping efficiency.

3. Critical Network Sectionalization

FlowBiz gate valves are highly reliable assets for isolating specific grids of a water network. During routine maintenance, pipeline repair works, or new pipeline tie-ins, operators can quickly drop the wedge gate to completely seal off a localized area, preventing the need to drain down an entire plant or municipal sector.

Versatile Industrial Water Management Applications

Our flanged cast iron gate valves are widely trusted by project engineers and utility managers across:

• Municipal Infrastructure: Water distribution mains, collection networks, and cross-country water transmission.

• Water Treatment Plants: Sewage treatment facilities, effluent plant isolation lines, and filtration centers.

• Manufacturing Utilities: Centralized factory cooling water manifolds, raw water feed lines, and low-pressure fire protection lines.

• Irrigation Sectors: High-volume agricultural water piping and pumping station main manifolds.

Frequently Asked Questions (FAQ)

Q: What are the primary internal components that make up a standard gate valve?

A: A FlowBiz gate valve is built from several precisely machined components: the valve body (outer pressure shell), the seat and disc/wedge (the sealing interfaces), the spindle/stem (the threaded rod that lifts the wedge), the gland packing (which prevents fluid from escaping up the stem), and the handwheel used to manually operate the multi-turn mechanism.

Q: What is the main benefit of selecting a gate valve over a butterfly valve for main isolation?

A: When a gate valve is fully open, the flow path is 100% clear. In contrast, a butterfly valve always leaves its disc suspended directly in the middle of the fluid stream, which restricts flow and can catch stringy solids or debris. For clean water lines where a full, unhindered bore and zero friction loss are required, the gate valve is highly superior.

Q: How do you install a flanged cast iron gate valve into an active pipeline?

A: Our gate valves are manufactured with standard circular flanged ends. Installation involves aligning the valve body flanges coaxially with the adjacent pipe flanges, inserting a suitable elastomeric or compressed fiber gasket between the faces to seal the joint radially, and tightening the heavy-duty bolts in an alternating star pattern to ensure even torque distribution.

Q: What standard maintenance practices are recommended to extend the lifecycle of a gate valve?

A: Because our gate valves feature precise casting tolerances, maintenance is remarkably straightforward. We recommend regularly cleaning and lubricating the exposed threads of the operating spindle, checking the gland packing nuts for tightness, and executing a full open-and-close cycle at least once every few months to flush out any localized sediment accumulating in the bottom pocket of the valve body.

Q: How can procurement teams place bulk orders with your Amreli manufacturing plant?

A: Businesses can contact our dedicated technical sales division directly through our official phone lines or website. Our engineering team will review your specific pipeline sizing, design pressure, and media demands to provide full technical data sheets, compliance certification, and a highly competitive factory-direct price quotation.
