Industrial Duplex Strainers: Non-Stop Fluid Filtration and High-Capacity Engineering Standards

In high-yield process industries, unscheduled down-time can result in severe financial losses. Systems managing continuous fluid streamssuch as fuel oils, lubrication loops, volatile chemicals, or high-temperature cooling watercannot afford a full shutdown merely to clear a clogged pipeline filter.

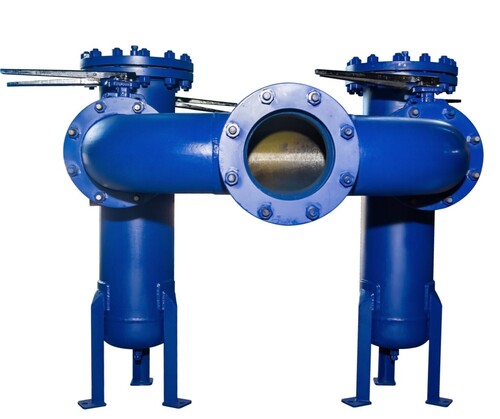

An industrial Duplex Strainer (or twin basket strainer) addresses this critical issue. By integrating two identical, independent strainer basket chambers into a single parallel fluid manifold controlled by a centralized changeover valve, this design guarantees continuous, uninterrupted volumetric flow. When the active chamber reaches its particle holding capacity, the process stream is seamlessly diverted to the clean standby chamber, permitting inline maintenance and element servicing with zero drop in system pressure.

                      [ Flow Input ]



       [ Housing Alpha ]         [ Housing Beta ]
       (Active Filtering)       (Standby / Clean)




                      [ Flow Output ]

FlowBiz Exports Pvt. Ltd. is an elite global fluid handling brand and a premier Duplex Strainer Manufacturer in Vapi, Gujarat, India. We specialize in precision engineering heavy-duty, dual-chamber filtration systems designed to protect sensitive downstream assets like multi-stage centrifugal pumps, flow meters, heat exchangers, and spray nozzles under rigorous process conditions.

Technical Specifications & Parameter Matrix

FlowBiz Duplex Strainers are manufactured using advanced casting and precision machining techniques, ensuring a seamless drop-in fit with international piping layouts.

Standard Engineering Matrix

Technical Advantages of FlowBiz Twin Basket Strainers

1. Dual-Chamber Architecture for Zero-Shutdown Processing

The parallel dual-housing design ensures that a clean filtration pathway is always held on standby. When inline instrumentation or visual inspections indicate that the active basket has accumulated line scale or debris, turning the central changeover handle effortlessly reroutes the fluid. This configuration completely eliminates maintenance-induced shutdowns, maintaining system continuity.

2. High-Grade Stainless Steel 304 Durability

Handling industrial utility lines at elevated temperatures reaching up to 200C requires specialized materials. Our strainers utilize premium SS 304 for the internal basket assemblies and structural discs, providing exceptional yield strength and excellent resistance to chemical oxidation. This material prevents the internal filter frame from warping or bypassing fluid under severe thermal stress.

3. Precision-Tailored Port Sizing & Flow Optimization

To eliminate the installation hassle of using pipe reducers or expanderswhich induce fluid turbulence and increase pressure dropsFlowBiz offers fully customizable port sizes. Our Vapi-based engineering team assesses your hydraulic flow curves, viscosity profiles, and face-to-face dimensions to deliver a customized unit with an optimum internal finish that maximizes flow capacity (Cv) and reduces system friction.

Strategic Industrial Application Scope

Our heavy-duty duplex strainers are chosen by plant operators, engineers, and procurement specialists to guarantee asset protection across critical sectors:

• Refineries & Petrochemical Complexes: Pre-filtering raw hydrocarbons, crude fractions, and heavy fuel oil lines prior to entering high-pressure pump lines.

• Chemical Processing Facilities: Stripping particulate contaminants from liquid process streams, solvents, and acids while protecting inline analytical instruments.

• Power Generation & Boiler Units: Managing cooling tower water loops, condensate return lines, and auxiliary water loops under high thermal strain.

• Nuclear Power Operations: Meeting strict global material standards to handle critical auxiliary cooling loops safely.

• Water Treatment & Desalination: Positioned upstream of high-pressure membranes and multi-stage distribution pumps to prevent fouling and debris wear.

Frequently Asked Questions (FAQ)

Q: When is it advisable to execute a changeover and clean a manual Duplex Strainer basket?

A: A changeover should be performed when an inline differential pressure (pressure difference) gauge indicates a noticeable pressure rise across the active chamber, signaling that the filter basket is filling up with scale and debris. Plant operators can also establish routine switchover schedules based on historical fluid contamination levels to clean baskets before flow restrictions occur.

Q: What is the exact engineering workflow for ordering a customized duplex unit from your Vapi facility?

A: Our manufacturing process in Vapi involves close consultation with clients to determine their exact application requirements. Sourcing teams share their specific piping layouts, nominal diameters, volumetric flow rates (Cv), and media properties. Our design division models the twin-housing geometry and customizes the internal basket perforations or mesh liners to match your system specifications exactly, ensuring a perfect inline fit before the unit undergoes full hydrostatic pressure testing.

Q: How does the manual operation design enhance the usability and safety of the strainer?

A: Manual operation via a centralized diverter handle provides straightforward, highly dependable fluid switching that requires zero electrical or pneumatic infrastructure. In critical or hazardous process environments, manual valves eliminate the risk of automated failure loops during power outages, making it simple and safe for field technicians to isolate, vent, and clean the dirty chamber while keeping the main application running without costly delays.

Q: Where should a twin basket strainer be strategically placed inside a plant layout?

A: Duplex strainers must be installed on the horizontal suction lines immediately upstream of high-value, continuous-running assets such as high-pressure pumps, heat exchangers, control valves, or spray nozzles. This early placement captures pipe thread tape, weld slag, and suspended debris before they can cause internal pump cavitation, impeller erosion, or blockages in downstream equipment.
