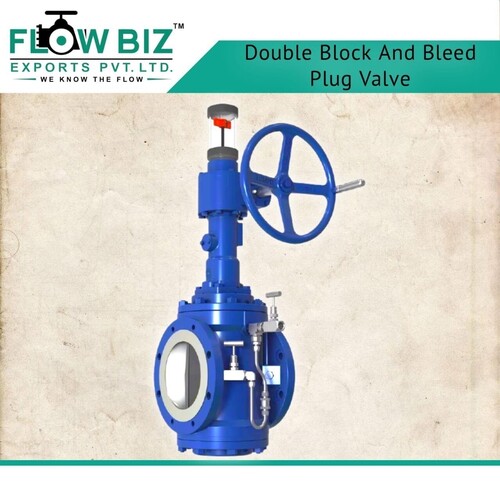

API 6D Double Block and Bleed (DBB) Plug Valves FlowBiz India

Welcome to FlowBiz Export Private Limited, a premier global manufacturing authority for positive pipeline isolation, zero-leakage safety containment, and severe-service fluid engineering. Operating advanced precision-machining cells and high-pressure compliance laboratories, we are India's leading manufacturer, supplier, and global exporter of high-integrity Double Block and Bleed (DBB) Plug Valves (also known as Double Isolation Plug Valves).

With a primary corporate manufacturing and logistics hub serving Mumbai, Maharashtra, our distribution network seamlessly fulfills critical infrastructure demands across all major industrial corridorsincluding Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Nashik, Pune, Thane, and Chennaialongside fast-tracked maritime freight lines operating out of the Jawaharlal Nehru Port Trust (JNPT) for global export markets.

Technical Specifications & Compliance Parameters

FlowBiz DBB Plug Valves are engineered strictly in accordance with API 6D, API 599, and ASME B16.34 design standards. This specialized safety architecture integrates two independent inline plug isolation barriers with an intermediate bleed/drain port into a single compact valve body structure, providing absolute physical media isolation for critical process systems.

Core Engineering Features & Design Advantages

1. High-Safety Double Isolation and Bleed Architecture

Traditional systems require installing two individual gate or ball valves separated by a spool piece with a welded drain valve to achieve safe block-and-bleed boundaries. The FlowBiz DBB Plug Valve achieves this exact configuration within a single, space-saving valve body casting. When the two main plug barriers are closed, the intermediate bleed valve drains the internal cavity. This allows technicians to visually confirm zero fluid bypass, enabling downstream line maintenance or meter calibrations to proceed safely without shutting down the entire facility.

2. High-Pressure Lubricated Sealing Framework

Our DBB valves are engineered as lubricated plug units. High-viscosity industrial sealant is injected under pressure through specialized body fittings into a network of micro-grooves machined directly across the seating faces. This sealant film provides three distinct engineering advantages:

• It completely eliminates metal-to-metal friction, lowering manual operating torque.

• It forms a continuous, self-healing hydraulic seal that prevents fluid bypassing.

• It actively prevents particulate matter, pipe scale, or sand from scoring the seating surfaces.

3. Cavity-Free Mechanical Geometry

Unlike standard pipeline ball valves that feature large, hidden internal body cavities where fluids, hydrates, or solids can accumulate and settle, our plug valves are entirely cavity-free. The rotating tapered plugs remain in continuous contact with the body walls throughout their full 90 travel path. This architecture mechanically sweeps away debris and eliminates the risk of over-pressurization from trapped volatile liquids.

4. Rigid Flanged Mechanical Stability

Outfitted with heavy-duty, precision-machined flanged ends matching ASME B16.5 parameters, these valves integrate cleanly into high-pressure water, oil, and gas networks. The flanged profile provides excellent structural rigidity, ensures an absolute leak-proof joint when paired with a premium gasket, and simplifies routine inline inspection or modular system upgrades.

Strategic High-Consequence Applications

FlowBiz API 6D double block and bleed plug valves are specified for critical boundary isolation across heavy processing networks:

• Custody Transfer Metering Isolation: Zero-bypass isolation surrounding multi-tube turbine meter runs and provers to guarantee precise calibration checks.

• Heavy Machinery Isolation: Positive block boundaries for high-pressure multi-stage pumps and main gas compressor skids during maintenance cycles.

• Injection System Boundaries: Complete isolation for high-pressure water or gas injection headers within drilling and distribution skids.

• Atmospheric Blowdown & Vent Lines: Secure boundary containment for critical plant vents, process bypass drains, and hazardous chemical blowdown headers.

• Refinery Tank Farm Infrastructure: Product manifold routing pipelines, multi-product storage isolation, and fuel loading terminals.

Frequently Asked Questions (FAQ)

Q: Why should an engineer specify a DBB plug valve instead of a standard gate or ball valve for terminal isolation?

A: Standard gate or ball valves rely on a single sealing barrier. If that single seal experiences micro-scratching or particulate erosion, fluid will bypass undetected down the line, risking catastrophic accidents during maintenance. A Double Block and Bleed Plug Valve provides two completely independent sealing blocks inside a single body shell. By opening the intermediate bleed valve, you can easily verify that the upstream block is holding 100% leak-tight, allowing technicians to safely work downstream without closing additional pipeline segments.

Q: Can a manual DBB plug valve be utilized for continuous fluid flow throttling or modulation?

A: No. Double block and bleed plug valves are strictly designed and engineered as high-integrity binary isolation safety devices. Leaving the tapered plugs partially open to throttle fluid exposes the delicate, high-precision grease channels and seating faces to direct, high-velocity fluid erosion. This rapid wear strips away the sealing grease and scores the metal, destroying the valves ability to achieve an absolute shut-off. For throttling loops, FlowBiz Heavy-Duty Globe Valves must be selected.

Q: What is the maintenance process for the high-pressure lubricant system on these plug valves?

A: Maintenance is remarkably simple and can be fully executed while the pipeline remains under pressure. Field operators periodically inject specialized high-viscosity valve grease into the external body grease fittings using a standard manual hydraulic grease gun. This refreshes the internal micro-grooves, clears away particulate matter from the seating walls, lowers the valve operating torque, and maintains a zero-leakage hydraulic seal.

Q: When is it recommended to choose a Stainless Steel (CF8M) body over Carbon Steel (WCB)?

A: For standard hydrocarbon pipelines, crude oil lines, non-reactive natural gas, and ambient water mains, ASTM A216 WCB Carbon Steel provides excellent structural mass and pressure containment at an optimized cost. However, if your line carries highly aggressive chemicals, sour gas containing hydrogen sulfide (HS), or is installed in a marine coastal environment like Mumbai, ASTM A351 CF8M Stainless Steel must be specified. The inclusion of molybdenum in CF8M provides high natural resistance to localized pitting and crevice corrosion.

Q: How can procurement managers and traders coordinate bulk sourcing from Mumbai?

A: Sourcing can be initiated by contacting our corporate sales division in Mumbai, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline nominal sizes (1/2" to 12"), pressure class parameters (Class 150# to Class 900#), and chemical media trait matchingto deliver a certified technical submittal package and an itemized factory-direct commercial proposal.

Are you designing a high-pressure compressor isolation skid or upgrading a refinery custody transfer metering manifold? Contact our Mumbai sales office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
