Ultimate Guide to Non-Return Valves (NRV): Working Principles, Types, and Industrial Applications

In modern fluid management systems, preventing backflow is critical to protecting equipment, ensuring safety, and maintaining process efficiency. A Non-Return Valve (NRV)also commonly known as a check valveis the unsung hero of these systems.

As a premier global manufacturer, Flowbiz Exports Pvt. Ltd. delivers precision-engineered non-return valves designed to withstand the most demanding industrial environments.

What is a Non-Return Valve and How Does It Work?

A non-return valve is a unidirectional valve featuring two main openings in the body: an inlet and an outlet. Its primary function is to allow fluids (liquids or gases) to flow in one direction while automatically blocking reverse flow.

The Mechanism Behind the Flow

The beauty of an NRV lies in its automation. Unlike control valves, most non-return valves do not require manual intervention or external power. They are driven entirely by the pressure of the media itself.

1. Forward Flow (Opening): When the fluid enters the valve from the inlet side, it exerts pressure against a internal closing member (like a disc, ball, or diaphragm). Once this pressure exceeds the valve's "cracking pressure," the closing mechanism opens, allowing the fluid to pass through.

2. Reverse Flow (Closing): If the fluid attempts to change direction or if the system pressure drops, the reverse flowoften aided by gravity or a built-in springforces the closing member back against the valve seat. This instantly seals the entrance and completely halts backflow.

Types of Non-Return Valves Manufactured by Flowbiz Exports

Different industrial applications require specific valve configurations based on media viscosity, flow velocity, space constraints, and budget. Flowbiz Exports Pvt. Ltd. manufactures a diverse portfolio of NRVs:

• Swing Check / Tilting Disc Valves: Features a disc that swings on a hinge or shaft. Ideal for low-velocity applications and large-diameter pipelines.

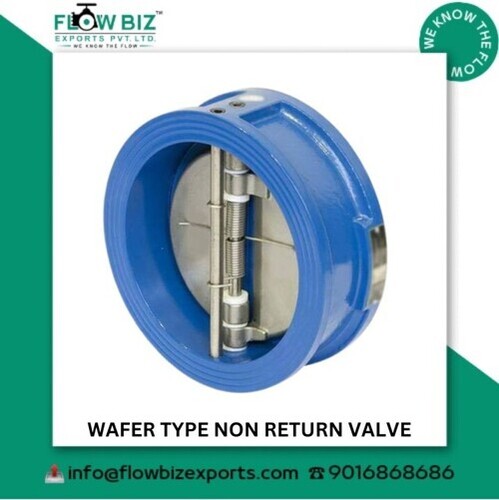

• Dual Plate / Wafer Check Valves: A highly compact, lightweight design featuring two spring-loaded plates. Perfect for installations where space and weight are major constraints.

• Ball Non-Return Valves: Utilizes a spherical ball that moves up and down inside the chamber. Commonly used in wastewater and viscous media applications as they are less prone to clogging.

• Lift Check Valves: Operates similarly to a globe valve, where a piston or disc lifts off the seat via fluid pressure. Best suited for high-pressure systems.

• Diaphragm Valves: Employs a flexible rubber diaphragm that deflects to allow flow. Excellent for slurry or low-pressure applications requiring tight sealing.

Precision-Engineered for Diverse Industrial Applications

At Flowbiz Exports Pvt. Ltd., our non-return valves are built to excel across a wide spectrum of sectors, including:

• Water & Wastewater Treatment: Preventing contaminated water from backflowing into clean water supplies.

• Chemical Processing: Handling aggressive, corrosive acids and bases safely.

• Oil & Gas Pipelines: Protecting expensive pumping infrastructure from pressure surges.

• Power Generation: Managing steam and cooling water loops under high temperatures.

• Air & Gas Compressors: Ensuring unidirectional gas flow without pressure loss.

Durability Built-In: To ensure maximum resistance against corrosion, erosion, and chemical degradation, Flowbiz valves come with premium coating options, including fusion-bonded epoxy (FBE) and specialized industrial powder coatings. Our versatile designs support both horizontal and vertical installations.

Comprehensive Quality Compliance & Testing Standards

Quality is at the core of Flowbiz Exports Pvt. Ltd. Our manufacturing facilities adhere to the worlds most stringent international engineering standards, including IS:5312, API 594, and BS1868.

Every single valve undergoes rigorous hydrostatic and pneumatic testing before leaving our facility to guarantee leak-proof performance:

• Body Testing: Conducted at 1.5 times the nominal design pressure to ensure structural integrity.

• Seat Testing: Conducted at 1.1 times the nominal design pressure to verify a perfect, drop-tight seal.

Frequently Asked Questions (FAQ)

Q: How should a Flowbiz non-return valve be installed for optimal performance?

A: Our NRVs can be installed in either horizontal or vertical pipelines. However, you must ensure that the flow direction aligns perfectly with the directional arrow embossed on the valve body. For vertical installations, ensure the flow moves upwards so gravity assists in closing the valve smoothly.

Q: When should I choose between EPDM, NBR, or PTFE sealing materials?

A: Sealing choice depends entirely on your temperature and media profile:

• EPDM: Ideal for water, steam, and mild chemicals.

• NBR (Nitrile): Excellent for oils, petroleum products, and gas applications.

• PTFE (Teflon): The premier choice for aggressive chemicals, acids, and high-temperature environments.

Q: Where can these industrial non-return valves be sourced from?

A: Flowbiz Exports Pvt. Ltd. proudly manufactures, supplies, and exports high-grade non-return valves globally from our state-of-the-art manufacturing hubs in India, including Narmada. Our robust logistics network ensures prompt domestic delivery and international shipping to global markets.

Q: What are the main benefits of a wafer or compact NRV design?

A: Compact and wafer-type non-return valves offer a significantly smaller footprint and a lighter weight compared to traditional flanged valves. This makes installation faster, reduces the structural support needed for piping, minimizes maintenance downtime, and significantly lowers overall system costs.
