Industrial Manual Piston Valves: Sealing Architecture and In-Line Maintenance Standards

In demanding process industries, fluid isolation equipment must deliver reliable shut-offs under continuous operational loads. Standard isolation valves often require regular maintenance due to seat scoring, wire-drawing erosion, and packing leaks caused by high thermal expansion or particulate matter in the fluid stream.

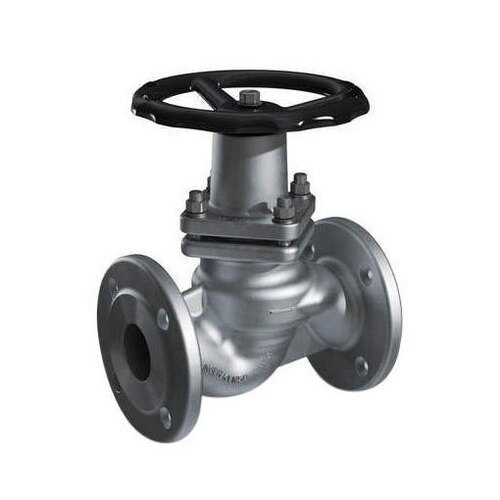

An industrial Manual Piston Valve addresses these vulnerabilities by using a linear-motion metallic piston that slides through two broad, resilient non-metallic sealing rings. This design completely isolates the sealing elements from the direct path of high-velocity fluids, preventing premature wear. This robust configuration provides bubble-tight containment, reliable bi-directional isolation, and long-lasting durability in high-temperature utility systems operating up to 200C.

                   Dual-Ring Linear Piston Isolation



                            Rotating Handwheel

                                       (Linear Stem Displacement)


                           Stem & Piston Assembly

                                       (Withdraws Vertically for Service)
   [ Upper Sealing Ring ]    [ Upper Sealing Ring ]
   (Static Gland Seal)          Water Media       (Prevents Stem Leakage)
   [ Lower Sealing Ring ]    Flow Track     [ Lower Sealing Ring ]
   (Dynamic Port Seal)             (Zero-Leakage Shutoff)

FlowBiz Exports is an elite global fluid-handling brand and a premier Piston Valve Manufacturer in Bhavnagar, Gujarat, India. We focus on precision engineering high-performance manual piston valves equipped with premium SS 304 stainless steel discs. Our valves are designed to deliver reliable fluid regulation, low operating torque, and simple maintenance workflows across heavy global infrastructure networks.

Technical Specifications & Performance Parameters

FlowBiz manual piston valves are manufactured, machined, and rigorously tested to comply with international industrial quality standards and pressure containment codes.

Core Product Configuration Matrix

Critical Engineering Features & Process Benefits

1. In-Line Maintenance Framework & Service Simplicity

A key operational advantage of the FlowBiz piston valve is its easy maintenance workflow. Traditional valves must be completely cut out and removed from the pipeline when their internal seats wear down, which increases facility downtime. In contrast, our piston valves are designed for simple in-line servicing:

• Body Stays Inline: The valve housing remains securely bolted or welded to the pipeline during maintenance.

• Top-Removal Access: Technicians simply loosen the bonnet bolts to withdraw the entire stem and piston assembly.

• Rapid Re-Sealing: The upper and lower sealing rings, as well as a damaged piston, can be swapped out quickly on-site without special tools.

2. Large Sealing Surface Area for Leak-Proof Operation

Unlike standard gate or globe valves that rely on narrow, line-contact metallic seats, a piston valve utilizes a large contact area between its polished SS 304 disc and the broad resilient sealing rings. This design distributes sealing forces evenly across a larger area, protecting the components from erosion. This broad interface provides reliable, bubble-tight shut-offs for water media and high-temperature utility streams.

3. User-Friendly Mechanical Manual Actuation

Operating as a purely mechanical device, a manual piston valve requires no complex automation, electrical connections, field wiring, or plant air lines. The balanced internal design keeps operating torque minimal, allowing field technicians to open and close the valve quickly using the integrated rotating handwheel. This simple manual control lowers overall installation costs and makes it an ideal choice for remote processing areas.

                       Process Utility Deployment



                  High-Integrity Pipeline Installations




 [ High-Temperature Water ] [ Condensate Return Lines ] [ Industrial Process Loops ]
 (Safe Service Up to 200C) (Resists Thermal Shock)     (Leak-Proof Flow Control)

Strategic System & Industrial Applications

Our high-temperature manual piston valves provide critical system isolation and equipment protection across major processing sectors:

• Chemical Processing & Industrial Facilities: Regulating high-temperature wash water lines, cooling loops, and non-reactive fluid headers.

• Power Generation & Boiler Utilities: Positioned along auxiliary steam lines, boiler blowdown headers, and condensate return lines up to 200C.

• Petroleum Refineries & Petrochemical Complexes: Managing cooling water manifolds, process water feeds, and utility fluid systems.

• Nuclear Power Plant Installations: Meeting strict material safety guidelines to provide clean, dependable fluid isolation in auxiliary loops.

• Water Treatment & Processing Infrastructure: Controlling high-volume intake lines, filtration manifold circuits, and backwash utility valves.

Frequently Asked Questions (FAQ)

Q: Why is a manual piston valve preferred over a standard globe valve for high-temperature water loops?

A: Standard globe valves rely on a flat disc pressing perpendicularly against a narrow metallic seat ring. In high-velocity lines, scale particles and water droplets can quickly erode these seating faces, causing wire-drawing leaks. A manual Piston Valve avoids this vulnerability. Its polished piston slides through broad, resilient sealing rings, keeping the sealing elements out of the direct path of the fluid stream during operation. This design ensures reliable, leak-proof service over a long lifespan.

Q: What is the detailed technical sequence for requesting a customized port size from Bhavnagar?

A: Sourcing and project engineering teams can request a customized production profile to ensure a seamless drop-in fit with their pipeline infrastructure:

1. Technical Specifications Gathering: Sourcing teams provide their operational metricsincluding nominal line diameters, pipeline flange ratings, fluid medium details, and maximum pressure expectations.

2. Precision Engineering Design: Our Bhavnagar technical team reviews your operational parameters to configure the valve dimensions and port sizes to match your specific pipeline footprint.

3. Quality Validation & Dispatch: The custom valves are precision-machined, quality-inspected, and pressure-tested before being cleared for domestic delivery or international export.

Q: How do the mechanical properties of an SS 304 disc improve valve durability?

A: Industrial water loops and chemical utilities can cause rapid surface pitting and oxidation in standard cast carbon steel components. FlowBiz addresses this by fabricating its internal moving discs from high-grade SS 304 stainless steel. This alloy features a dense chromium-nickel matrix that naturally forms a passive, self-healing oxide layer. This core provides high mechanical strength, resists chemical erosion, and maintains smooth piston travel across thousands of operational cycles.

Q: What is the standard process for ordering valves from FlowBiz Exports?

A: Ordering a custom valve layout follows a simple procurement process. Clients can contact our technical sales team directly with their application metrics and facility blueprints. Our technical experts will guide you through product selection, material choices, and port customization options. Once the design is finalized, our manufacturing division builds the valves to your exact specifications, ensuring an optimal fit, high process efficiency, and on-time delivery.
