API 609 PTFE-Sleeved Stainless Steel Butterfly Valves FlowBiz Pune

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for zero-leakage chemical isolation, high-purity water treatment, and corrosive fluid regulation. Operating precision high-alloy casting cells and advanced fluoropolymer machining laboratories in Pune, Maharashtra, we are Indias leading manufacturer, supplier, and global exporter of high-integrity PTFE-Sleeved Butterfly Valves.

Our specialized fluid isolation systems are engineered to withstand severe chemical attacks and strict sanitary requirements. We seamlessly serve critical industrial and processing corridors across Indiaincluding Pune, Mumbai, Thane, Vapi, Nashik, Ahmedabad, Surat, Ankleshwar, and Chennaibacked by fast-tracked domestic logistics and maritime freight networks for rapid global export.

Technical Specifications & Pipeline Parameters

FlowBiz PTFE-Sleeved Butterfly Valves utilize a Concentric (Center-Line) geometry where the stem axis passes directly through the centerline of the disc and the body. The disc is fully encapsulated by a heavy-duty, virgin PTFE sleeve liner that extends across the flange sealing faces, isolating the outer stainless steel metal body completely from the process stream.

Core Engineering Features & Design Advantages

1. Premium Stainless Steel & Chemically Inert PTFE Sleeve

To provide unmatched durability in aggressive environments, our valve bodies and internal discs are cast from premium ASTM A351 CF8M (SS316) stainless steel. This metallurgy is paired with a non-collapsible, virgin PTFE sleeve seat liner. Polytetrafluoroethylene is completely non-reactive, which eliminates the risk of localized pitting, material degradation, or fluid contamination when carrying volatile acids, caustics, or pure fluids.

2. Concentric Geometry with Complete Media Isolation

The concentric design ensures that the high-precision polished disc edge rotates 90 within the center of the valve bore. Because the molded PTFE sleeve fully lines the internal cavity of the stainless steel housing and wraps around the flange faces, the process fluid never comes into contact with the outer valve body. This configuration creates a reliable dynamic barrier that protects the stem and structural components from erosion.

3. Low-Maintenance, Bi-Directional Bubble-Tight Sealing

Our PTFE-sleeved butterfly valves are engineered to achieve an absolute API 598 bi-directional bubble-tight shut-off. The high-elasticity sleeve incorporates a resilient elastomer backing ring behind the PTFE layer. This backing material exerts continuous, uniform pressure against the disc edge upon closure, maintaining an airtight seal under vacuum or positive line pressures without requiring high operating torque.

4. Versatile Flange Matching and High-Visibility Finish

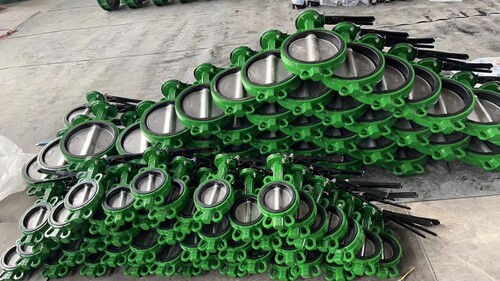

Available in ultra-slim Wafer or full-surround Lug body configurations, these assets insert between standard ASME B16.5 pipe flanges. The exterior is treated with a specialized chemical-resistant Silver-Green protective finish. This coating shields the outer castings from corrosive airborne chemical vapors or salt spray and provides immediate visual identification for field maintenance crews.

Strategic Industrial Water & Processing Applications

FlowBiz high-purity PTFE-seated butterfly valves are specified across sensitive utility networks:

• Potable Water & Desalination Systems: Safe, non-toxic distribution loops for drinking water, reverse osmosis filtration grids, and demineralized water networks.

• Chemical Processing Industries: Controlling and isolating aggressive acids, chemical reagents, wash solvents, and industrial effluents.

• Wastewater & Industrial Water Treatment: Managing municipal wastewater aeration tanks, chemical dosing systems, and corrosive sludge filtration manifolds.

• Petrochemical and Auxiliary Refineries: Reliable control lines for non-reactive solvents, cooling tower loops, and secondary process utilities.

Frequently Asked Questions (FAQ)

Q: Why do industrial butterfly valves standardly start at a 2-inch nominal size rather than smaller options?

A: Small-bore pipelines (below 2 inches) feature very narrow internal cross-sectional areas. Because a butterfly valve's disc sits directly inside the middle of the fluid stream even when fully open, putting a disc and stem assembly inside a micro-bore line would severely restrict the fluid path and cause massive head loss. For pipelines below 2 inches (50 mm), FlowBiz Full-Bore Stainless Steel Ball Valves or Globe Valves must be selected to preserve proper fluid velocity and pressure profiles.

Q: Can a PTFE-sleeved butterfly valve be used for high-temperature utility steam lines?

A: No. While virgin PTFE features excellent thermal resilience, concentric butterfly valves rely on continuous mechanical compression between the metallic disc and the polymer sleeve. Exposing this soft sealing interface to continuous, superheated utility steam above 150180 C causes the polymer to suffer from thermal softening and wire-drawing erosion, which leads to immediate valve failure. For severe steam utilities, FlowBiz Metal-Seated Carbon Steel Globe Valves or High-Performance Triple-Offset Butterfly Valves are mandatory.

Q: What is the main structural advantage of a Lug-type connection profile over a Wafer-type connection?

A: A Wafer valve features a smooth exterior casing that is clamped between two pipe flanges using long all-thread bolts that span the entire width of the valve. A Lug valve features integrated metal casings with threaded bolt holes that match the pipe flange configuration. This allows a lug valve to be securely bolted directly to a single flange for dead-end service. This enables plant technicians to completely disconnect downstream piping for maintenance while keeping the upstream side fully pressurized.

Q: Are these valves safe for use in both municipal sewage and high-purity drinking water networks?

A: Yes. The combination of an ASTM A351 CF8M Stainless Steel disc and a virgin PTFE sleeve liner is completely non-toxic, non-leaching, and biologically inert, making it fully certified for clean drinking water networks. Simultaneously, this exact material combination is incredibly smooth and rugged, which prevents organic matter, raw sewage particulates, and micro-abrasive sediments from sticking to the valve surfaces or causing premature abrasive wear.

Q: How can project engineering and procurement teams in Pune or Vapi coordinate a bulk factory quote?

A: Sourcing can be initiated by contacting our dedicated corporate sales divisions in Pune or Vapi, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline nominal sizes (212 in), required body connection layout (Wafer vs. Lug), chemical media traits, and operating pressure limitsto deliver a certified technical submittal package and an itemized commercial proposal with factory-direct B2B pricing.

Are you designing a reverse osmosis water treatment matrix or upgrading an aggressive chemical utility manifold? Contact our Pune sales and engineering office today to receive complete technical data sheets, certified structural layouts, and an itemized commercial proposal.
