Industrial Piston Valves: High-Pressure Isolation, Sealing Mechanics, and Compliance Standards

In heavy industrial utility networks, power generation loops, and continuous chemical processing plants, managing high-temperature steam and volatile fluids requires high-integrity isolation valves. Traditional gate and globe valves often experience rapid seating wear, wire-drawing erosion, and packing leaks when subjected to frequent thermal cycling or high pressure differentials.

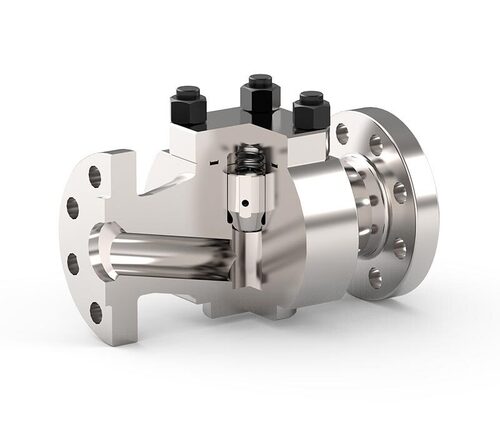

An industrial Piston Valve offers a heavy-duty solution for severe-service isolation and linear flow regulation. Utilizing a polished metallic piston that travels through two resilient, non-metallic sealing rings, the design completely isolates the valve stem and sealing surfaces from the direct, high-velocity path of the process stream. This configuration delivers consistent, bubble-tight closure up to 40 bar, provides dependable bi-directional flow control, and reduces maintenance requirements in demanding process lines.

                 Bi-Directional Piston Sealing Dynamics



                         Manual Wheel / Actuator

                                       (Non-Rising Stem Drive)


                          Polished Metallic Piston

                                       (Moves Linearly Through Rings)
   [ Upper Sealing Ring ]    [ Upper Sealing Ring ]
   (Static Gland Seal)         Fluid Flow         (Prevents Stem Leakage)
   [ Lower Sealing Ring ]   Dual-Port       [ Lower Sealing Ring ]
   (Dynamic Port Seal)             (Bi-Directional Cutoff)

Operating advanced manufacturing and precision-machining production centers, we serve as Indias trusted exporter, manufacturer, and supplier. We specialize in engineering high-durability, code-compliant Piston Valves in Patan, Gujarat, designed to provide secure, leak-proof performance under severe industrial processing conditions.

Technical Specifications & Certification Matrix

Our piston valves are cast, forged, and rigorously tested to comply with international design and safety standards, ensuring full compatibility with global piping grids.

Core Engineering Parameter Profile

Critical Engineering Features & Process Benefits

1. Dual-Ring Sealing Framework & Bubble-Tight Isolation

The sealing mechanism consists of a polished piston moving through an upper and a lower resilient sealing ring. The upper ring acts as a static shield to isolate the stem from process fluid, while the lower ring provides a bubble-tight cutoff around the port. When closed, the piston exerts uniform axial pressure on the soft-seated rings, forcing them tightly against the internal body walls. This design ensures absolute leak-proof isolation in both flow directions.

2. Glandless, Non-Rising Stem Architecture

Unlike standard isolation valves that use dynamic stem packingwhich can loosen over time and cause fugitive packing leakspiston valves utilize a glandless configuration. This setup reduces overall wear, keeps operating torque low, and prevents atmospheric emissions. Furthermore, the non-rising stem design maintains a constant outer height during operation, making it an ideal, compact solution for space-constrained pipe racks and complex facility skids.

3. IBR Compliance for High-Pressure Steam Loops

For facilities operating industrial boiler networks and superheated steam lines, component reliability is a critical regulatory priority. Our piston valves are manufactured and verified under strict IBR (Indian Boiler Regulations) guidelines. Because the sealing rings are highly resistant to thermal expansion and contraction, the assembly maintains structural safety and tight containment through rapid thermal spikes and continuous high-temperature cycles.

                       Process Integration Portfolio



                   Severe Utility Piping Deployments




 [ Superheated Steam Loops ] [ High-Pressure Oil Headers ] [ Volatile Chemical Lines ]
 (Resists Thermal Shock)     (Bi-Directional Shutoff)      (Bubble-Tight Isolation)

Strategic System & Industrial Applications

Our certified, high-pressure piston valves provide reliable flow control across critical processing sectors:

• Power Generation & Boiler Utilities: Positioned along main steam distribution headers, boiler blowdown lines, and condensate return systems up to 40 bar.

• Chemical Processing & Synthesis Plants: Managing aggressive chemical feeds, transfer lines, and processing loops where preventing leaks is critical.

• Oil & Gas Refineries: Controlling fuel gas systems, light hydrocarbon pipelines, and utility manifolds.

• Textile & Paper Processing Facilities: Regulating high-temperature drying steam lines, wash water headers, and chemical dye circuits.

• Food & Beverage Manufacturing: Providing reliable utility isolation for clean-in-place (CIP) steam systems and hot water loops.

Global Packing, Logistics, and Export Capability

To support our international distribution network, every valve undergoes careful preparation before dispatch. We provide secure, custom packagingusing reinforced wooden crates and protective internal vapor-barrier wrapsto ensure your equipment arrives safely at your job site without environmental or physical damage.

Leveraging strategic trade channels, we export and trade nationwide and across major global markets, including:

• The Middle East (Refinery and hydrocarbon processing upgrades)

• Southeast Asia & Africa (Power generation and infrastructure developments)

• Europe (High-purity chemical processing and industrial manufacturing skids)

Frequently Asked Questions (FAQ)

Q: Why is a piston valve considered superior to a standard globe valve for steam services?

A: Standard globe valves rely on a flat disc pressing perpendicularly against a narrow metallic seat ring. In high-velocity steam lines, scale particles and water droplets can easily erode these seating faces, causing wire-drawing leaks. A Piston Valve addresses this vulnerability. Its polished piston slides through broad sealing rings, shielding the sealing elements from the direct path of the fluid stream during operation, which ensures reliable, leak-proof service over a long lifespan.

Q: What exact quality validation steps are performed before the valves are cleared for export from Patan?

A: Every valve batch undergoes rigorous quality testing to ensure total reliability before shipment. Our testing division performs comprehensive hydrostatic inspections where each valve is pressure-tested up to 1.5 times its maximum rated working pressure. This testing confirms structural integrity, verifies casting density, and ensures bubble-tight sealing, fully satisfying ISI, IBR, and DIN standards.

Q: When should an engineer specify pneumatic actuation instead of a manual handwheel?

A: The choice is driven by your system's automation requirements and maintenance layout:

• Pneumatic Actuation: Recommended for automated facilities where valves must operate remotely from a central control room, or for automated safety isolation and high-frequency pulsing loops.

• Manual Handwheel Operation: Ideal for standard utility lines, manual isolation setups, or remote facility zones where automatic control lines are unavailable.

Q: How does ordering bulk quantities from the Patan facility affect the unit cost?

A: Our manufacturing facility can scale production runs efficiently to meet large project demands. For large infrastructure projects, plant retrofits, or distributor stock orders, we offer optimized bulk discounts that provide the lowest price and most competitive asking price per unit. Contact our technical sales group with your detailed valve schedule, and our engineering team will provide a tailored project quotation along with secure global shipping timelines.
