Industrial Piston and Plug Valves: Performance Metrics, Customization, and Sealing Mechanics

Industrial piping networks require fluid control components that provide reliable, zero-leakage isolation and precise regulation. Whether handling high-velocity gases, volatile liquids, high-temperature steam loops, or abrasive solids, selecting the right valve configuration is essential to maintain plant safety and process efficiency.

While Plug Valves excel at managing low-pressure drops, fuel gases, non-abrasive slurries, and vacuum applications via a simple quarter-turn tapered plug, Piston Valves provide excellent durability in extreme linear throttling and high-temperature utility lines (Tmax up to 425C). Both designs eliminate the delicate seating vulnerabilities of standard gate or globe valves, replacing them with broad-surface sealing interfaces that withstand challenging duty cycles without losing pressure boundary integrity.

                  Piston Valve Dual-Ring Sealing Dynamics



                           Linear Actuator/Wheel

                                       (Linear Stem Displacement)


                          Polished Metallic Piston

                                       (Descends Through Rings)
   [ Upper Valve Ring ]     [ Upper Valve Ring ]
   (Secures Stem Seal)         Fluid Flow          (Prevents Gland Leaks)
   [ Lower Valve Ring ]     Isolation Port   [ Lower Valve Ring ]
   (Ensures Port Shutoff)         (Bubble-Tight Isolation)

We deliver high-integrity flow regulation solutions tailored for complex HVAC, propane, combustion, and chemical processing markets. Operating advanced production and machining hubs, our engineering teams manufacture, supply, and export a comprehensive range of industrial valves designed to maximize operational lifespan and reduce total cost of ownership.

Technical Specifications & Compliance Parameters

Our industrial valves are precision-machined, cast, and hydrostatically verified to satisfy strict global pressure containment and manufacturing standards, including IS 9890, DIN 3356, and BS 5154.

Core Engineering Parameter Profile

Piston vs. Plug Valve Design Dynamics

Choosing between a piston and a plug valve depends on your primary process medium, operating temperature, and required actuation style.

                      Industrial Valve Architecture



                  Media-Driven Valve Trim Selection




  [ Piston Valve Configuration ]                        [ Plug Valve Configuration ]
  - Linear Stem Displacement                            - Quarter-Turn (0 to 90) Rotation
  - Upper/Lower Resilient Sealing Rings                  - Tapered or Cylindrical Plug Core
  - Ideal for Steam, Condensate, & Thermal Fluids        - Ideal for Gases, Fuel Lines, & Slurries
  - Temperatures Up to 425C                            - Low Pressure Drop (P) Profile

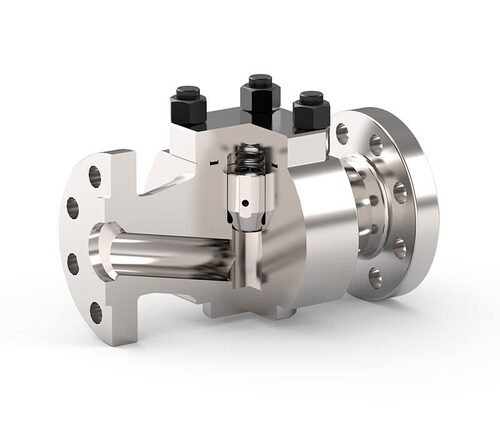

1. Piston Valve Sealing Mechanics

Piston valves utilize a polished metallic piston that moves linearly through two flexible, non-metallic sealing rings. The upper sealing ring acts as conventional gland packing to isolate the stem, while the lower ring provides bubble-tight shut-off around the port. When the valve is closed, the piston displaces the rings axially, forcing them tightly against the inner body wall. This design prevents seat erosion by keeping the sealing surfaces out of the direct path of high-velocity fluids.

2. Plug Valve Flow Dynamics

Plug valves utilize a tapered or cylindrical plug-shaped disc that rotates inside the valve body cavity to control flow. This quarter-turn action provides rapid opening and closing. Because the fluid passage through the plug aligns smoothly with the pipeline diameter, these valves exhibit a low pressure drop (P). The broad contact area between the plug and the body cavity makes them highly effective for separating volatile gases, fuel systems, and non-abrasive slurries.

Critical Customization & Materials Engineering

To ensure a seamless integration into both new installations and retrofitted processing skids, our manufacturing infrastructure supports full dimensional and trim customization:

• Metallurgical Selection: Components can be cast or forged from premium carbon steel, SS 304, or SS 316 to ensure high chemical compatibility and corrosion resistance in harsh industrial environments.

• Gland Packing Profiling: Packing materials are matched directly to your system's operating temperatures:

  • High-Purity Graphite: Recommended for high-temperature media, steam lines, and thermal oil systems operating up to 425C.

  • Virgin PTFE: Best suited for lower-temperature operations, high-purity water runs, and aggressive chemical processing lines.

• Actuation and Control Integration: Valves can be configured with manual handwheels, pneumatic actuators for rapid pulsing loops, or electric motors with selectable voltages to integrate into automated plant networks.

Strategic System & Industrial Applications

Our high-temperature, standard-compliant valves provide reliable flow regulation across severe-service sectors:

• Petrochemical Refineries & Gas Headers: Regulating fuel gas piping, propane handling lines, and volatile hydrocarbon transfer manifolds.

• Textile & Chemical Processing Facilities: Controlling aggressive chemical reagents, process water loops, and dye baths.

• Sugar Manufacturing & Fertilizer Plants: Managing thick juices, lime milk runs, and harsh chemical slurry networks.

• Power Generation & Utility Circuits: Positioned along high-pressure superheated steam headers, condensate return lines, and boiler feed systems up to 425C.

• Fly Ash & Solid Handling Operations: Managing dry powder lines, vacuum pneumatic transport headers, and ash slurry streams.

Pan-India Supply Capabilities & Logistics Footprint

Operating an extensive production, distribution, and trading infrastructure, we manage rapid dispatch, technical engineering consultation, and comprehensive field care across all major industrial manufacturing zones, chemical corridors, and shipping hubs in India:

• Gujarat Logistics: Navsari, Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Central & Southern India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global export channels.

Frequently Asked Questions (FAQ)

Q: What primary testing protocols ensure these valves perform reliably under high pressure?

A: Every valve batch undergoes rigorous hydrostatic testing before leaving our facility to confirm structural integrity and verify leak-proof performance. The valve body is hydrostatically tested at 33.3 Kg/cm to verify casting density and ensure there is no structural porosity. The valve seat is tested at 22 Kg/cm to confirm a bubble-tight seal. These procedures comply fully with IS 9890, DIN 3356, and BS 5154 standards.

Q: Why is a piston valve preferred over a standard globe valve for high-pressure steam services?

A: Globe valves rely on a flat disc pressing perpendicularly against a narrow metallic seat ring. In high-velocity steam lines, wire-drawing and particulate impact can quickly erode these seating faces, causing localized wire-draw leaks. A Piston Valve avoids this vulnerability. Its polished piston slides through broad, resilient sealing rings, keeping the sealing elements out of the direct path of the fluid stream during throttling. This design ensures consistent, leak-proof isolation over long duty cycles.

Q: What is the technical sequence for ordering a customized valve configuration?

A: To ensure a precise fit and optimal configuration for your operational requirements, our engineering division utilizes a simple data-sharing process:

1. Process Parameters Definition: Sourcing teams provide their operational metricsincluding nominal size (15mm to 150mm), fluid medium chemistry, continuous pressure profile, and maximum temperature limits.

2. Trim and Accessory Selection: Engineers select the appropriate body metallurgy (such as forged steel or stainless steel), gland packing material (graphite or PTFE), end connections (flanged, threaded, or socket weld), and actuation preferences.

3. Engineering Review and Production: Our team reviews the custom requirements to generate a tailored quotation. Once approved, the valve is manufactured to match your unique operational standards.

Q: How do these valves lower the total cost of ownership for industrial operations?

A: High-integrity plug and piston valves lower your overall operating costs by reducing maintenance frequency and extending the service life of your equipment. Features like quick-acting actuation, robust corrosion-resistant construction, and an easy inline replacement design simplify routine servicing. By preventing fugitive emissions and keeping steam loops tightly sealed, these valves minimize energy losses, protect surrounding facility machinery, and optimize overall process efficiency.

For technical guidance on selecting the optimal plug valve, piston valve, or gas regulation solution for your process pipeline, contact our engineering group at 8879358242 to request a comprehensive project quotation.
