Welcome to FlowBiz Export Private Limited, a premier engineering authority for high-pressure fluid modulation, pulsating flow containment, and severe-service utility isolation. Operating advanced metallurgical foundries and precision machining centers in Gandhinagar, Gujarat, we are Indias leading manufacturer, supplier, and global exporter of high-integrity Angle-Type Globe Valves.

Our specialized fluid control systems are engineered to absorb the mechanical stresses of slugging and hydraulic cavitation. We seamlessly serve critical industrial pipelines across the entire domestic marketincluding Gandhinagar, Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Mumbai, Pune, and Chennaialongside fast-tracked international maritime freight corridors for global project export.

Technical Specifications & Compliance Architecture

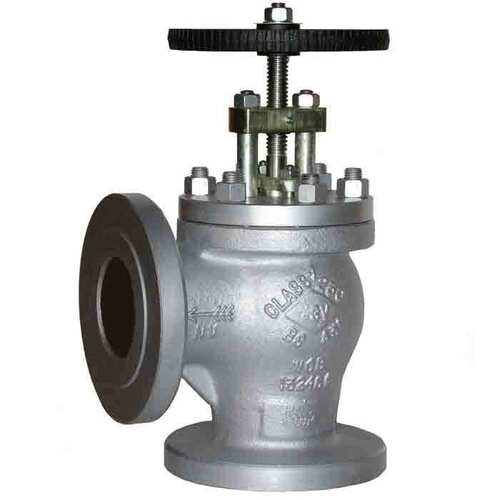

The FlowBiz Angle-Type Globe Valve is a high-performance modification of the standard straight-pattern globe valve, featuring inlet and outlet ports oriented at a 90-degree angle. This specialized configuration changes the direction of the fluid stream by 90 degrees within the body shell, serving simultaneously as a pipeline elbow and a precise throttling asset while significantly lowering system pressure drops.

Core Engineering Features & Design Advantages

1. Slugging Mitigation & Pulsating Flow Management

In utility loops managed by reciprocal pumps or multi-phase injection, fluids frequently introduce severe pulsing or slugging effects that can quickly fatigue straight-line piping grids. Because our valve changes flow direction by 90 degrees natively within its rugged ASTM A216 WCB carbon steel body, it acts as a structural shock absorber. This layout dampens fluid pulsations, eliminates the need for an adjacent 90 pipe elbow, and lowers fluid flow restriction.

2. Hardened Anti-Corrosive Trim and Stem Nitriding

To ensure an extended service life under continuous throttling conditions, the internal sealing surfaces feature a heavy-build, wear-resistant steel cladding. The valve stem undergoes a rigorous nitriding and tempering process, which builds an ultra-hard surface casing. This specialized metallurgy gives the stem exceptional anti-friction traits and eliminates the risk of scoring against the packing gland during frequent adjustments.

3. High-Pressure Butt-Welding End Connections

For critical, high-temperature, or high-pressure pipelines carrying volatile fuels and oils, standard flanged joints present potential fugitive emission or gasket leak risks. FlowBiz angle valves feature precision-machined butt-welding ends matching ASME B16.25. Welding the valve directly into the piping network forms a permanent, homogenous metal joint that completely eliminates leak points and ensures maximum system integrity.

4. Cavity Prevention via Optional Steam Jackets

When handling high-viscosity fuel oils, heavy crudes, or chemical media that tend to cool down and solidify, standard valves jam due to media crystallization. FlowBiz angle globe valves can be engineered with integrated steam heating jackets and packing flushing ports. Passing utility steam through the outer jacket keeps process fluids safely above their crystallization temperatures, keeping the internal plug clear and fully operational.

Strategic Cross-Industry Applications

FlowBiz carbon steel angle globe valves are specified across high-velocity, high-pressure utility grids:

• Industrial Fuel Oil Systems: Managing heavy fuel oil transmission lines, burner supply circuits, and viscous hydrocarbon transfer manifolds.

• Thermal Plant Cooling Loops: Regulating high-pressure cooling water intake lines, auxiliary boiler feed circuits, and condenser lines.

• Chemical & Condensate Networks: Safe throttling of high-velocity saturated steam lines and volatile process liquids prone to pulsating surges.

• Upstream Oil & Gas Manifolds: Regulating fluid flow directly on production manifolds and injection lines where slugging effects occur.

Frequently Asked Questions (FAQ)

Q: Why does an angle-type globe valve exhibit a significantly lower pressure drop than a standard straight-pattern globe valve?

A: In a standard straight-pattern globe valve, the fluid stream must make two sharp 90 turns inside the body cavity to pass through the horizontal seat orifice, creating substantial fluid friction and head loss. An Angle-Type Globe Valve features a vertical seat pocket aligned directly with the bottom inlet. The fluid turns exactly once by 90 as it leaves the valve. This streamlined internal geometry significantly lowers fluid resistance (Cv) and minimizes pressure drop across the loop.

Q: Why is a butt-welding connection preferred over a flanged connection in high-pressure oil systems?

A: Flanged connections rely on compressed elastomeric or metallic gaskets held together by mechanical fasteners, which can slowly relax over time when exposed to thermal cycling or pipeline vibration, causing micro-leakage. A Butt Welding Type Connection fuses the carbon steel body directly into the adjacent pipe steel. This creates a continuous, high-integrity joint that handles extreme pressure surges and thermal shocks without requiring gasket maintenance.

Q: What is the engineering benefit of the nitriding process on the valve stem?

A: The valve stem is subjected to continuous axial friction against the compressed graphite or PTFE packing rings during manual regulation. Nitriding introduces nitrogen molecules chemically into the outer atomic layer of the stainless steel stem, drastically increasing its surface hardness. This hardened surface layer resists scratching, prevents fluid erosion, lowers manual operating torque requirements, and protects the packing seals from premature failure.

Q: Can an angle-type globe valve be safely utilized for fluid flow throttling and isolation?

A: Yes, globe valves are explicitly engineered as dual-function throttling and isolation assets. While gate or ball valves suffer rapid seating damage if left partially open, the plug disc of a globe valve travels perpendicular to the fluid stream. This allows operators to lift or lower the disc precisely to achieve granular flow control without risking premature erosion or mechanical chattering.

Q: How can project procurement managers and traders coordinate bulk quotes from Gandhinagar?

A: Sourcing can be initiated by contacting our corporate sales division in Gandhinagar, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline size requirements ( to 12), target pressure classes (Class 150# to Class 2500#), and chemical media profilesto deliver a certified technical submittal sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-pressure boiler cooling system or upgrading a viscous fuel oil transfer manifold? Contact our Gandhinagar sales office today to receive comprehensive technical sheets, dimensional blueprints, and an itemized commercial proposal.
