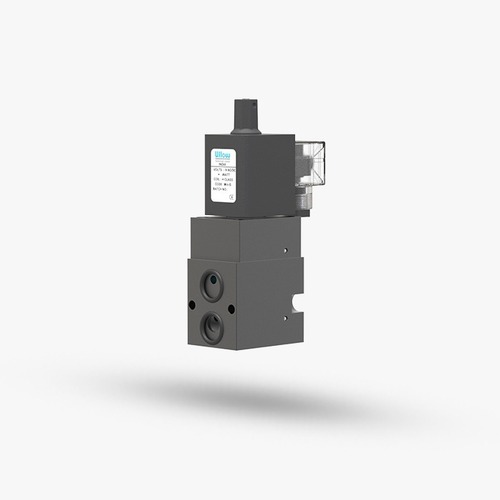

3/2 Single Solenoid Poppet Valve (Normally Close)

Send Inquiry

Request To Call Back

3/2 Single Solenoid Poppet Valve (Normally Close)

Name: 3/2 Single Solenoid Poppet Valve (Normally Close)
Brand: FLOWBIZ EXPORTS PRIVATE LIMITED
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Number

Get a Price/Quote

MOQ : 1 Unit

3/2 Single Solenoid Poppet Valve (Normally Close) Specification

Material
Aluminium body with brass internals

Features
Fast response, compact design, easy coil replacement, manual override

Control System
Electrical solenoid

Valve Size
1/4 inch

Connection Type
Threaded BSP

Valve Type
Normally Closed (NC)

Usage
Industrial

Sealing
Nitrile (NBR)

Structure
Poppet valve, single solenoid, 3/2 way configuration

Application
Pneumatic systems, automation equipment, air flow control

Voltage
24V DC / 220V AC (optional)

Type
3/2 Single Solenoid Poppet Valve (NC)

Power
Solenoid actuated

Pressure
0.5 to 10 bar

Media
Air

Port Size
1/4 inch BSP

Color
Black

Temperature
-5°C to +60°C

Disc
Poppet-type disc

Pin
2 pin coil connection

Surface Treatment
Anodized body finish

Weight
Approx. 350g

Mounting Position
Any position

Electrical Connector
DIN 43650 Form A

Duty Cycle
100% ED (continuous duty)

Actuation
Spring return

Enclosure Protection
IP65 (with connector)

Coil Insulation Class
Class F

Flow Rate (Cv)
0.85

Operating Frequency
Cycle up to 5 times/second

Response Time
Less than 40 ms

3/2 Single Solenoid Poppet Valve (Normally Close) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

3/2 Single Solenoid Poppet Valve (Normally Close) About

Valve Specifications

Type : 3/2

Design : Internal Pilot Operated Poppet Valve

Port Size : In / Out / Exhaust - 1/4" BSP

Media : Compressed Air (Filtered & Lubricated)

working Pressure Range : 2-10 Bar

Orifice : 7mm

Ambient / Media Temperature : 5C - 60C

Materials of Construction : Aluminium, Nitrile, Brass, Polymer

Coil Specification

Coil Features : High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Coil Housing : Epoxy square coil, Metallic round enclosure, IP-67 Flameproof Junction box, IP-68 Weatherproof enclosure.

Versatile Installation and Robust Construction

This 3/2 single solenoid poppet valve can be mounted in any position, providing flexibility during installation. Its anodized aluminum body and brass internals ensure durability, while an IP65 enclosure offers excellent protection against dust and moisture, making it suitable for tough industrial settings.

Efficient and Reliable Performance

Designed for pneumatic systems and automation, the valve delivers fast response (under 40 ms), high operating frequency (up to 5 cycles/second), and supports continuous use with a 100% ED rating. The poppet structure guarantees reliable sealing using Nitrile (NBR), making it ideal for precise air flow control.

FAQ's of 3/2 Single Solenoid Poppet Valve (Normally Close):

Q: How is the 3/2 Single Solenoid Poppet Valve (NC) installed?

A: The valve can be mounted in any position, providing installation flexibility. The threaded 1/4 inch BSP port connections make integration with existing pneumatic lines straightforward.

Q: What types of applications can this valve be used for?

A: This poppet valve is designed for pneumatic systems, automation equipment, and air flow control tasks in industrial environments.

Q: When is it necessary to replace the coil or perform maintenance?

A: Coil replacement may be required in the event of electrical failure or wear. The design allows for easy coil replacement and access to other components for routine maintenance.

Q: Where does the valve provide optimal performance?

A: With an operating temperature range of -5C to +60C and IP65 enclosure protection, the valve provides reliable operation in both indoor and semi-outdoor industrial settings.

Q: What is the benefit of the valve's 100% ED duty cycle?

A: A 100% ED duty cycle means the valve can be energized continuously without risk of overheating, ensuring consistent and reliable operation in demanding automation or process control systems.

Q: How does the manual override feature work?

A: The manual override allows operators to actuate the valve directly during setup, maintenance, or emergencies, providing added control and safety during critical situations.

Q: What process does the valve use to ensure fast and secure actuation?

A: The valve utilizes a solenoid-powered poppet mechanism with a spring return, offering reliable, quick actuation and assured closure when de-energized.
