PTFE-Lined Y-Type Strainers: Advanced Chemical Filtration and Design Standards

In industrial processing facilities, fluid transmission manifolds, and chemical utility lines, protecting downstream equipment from debris is a fundamental requirement. Highly aggressive or ultra-pure mediasuch as concentrated mineral acids, strong alkalis, organic solvents, and reactive chemical slurriescan easily degrade standard unlined metallic filtration equipment. This degradation causes severe pitting, uniform corrosion, and rapid material loss, risking catastrophic pressure boundary failures and costly fluid cross-contamination.

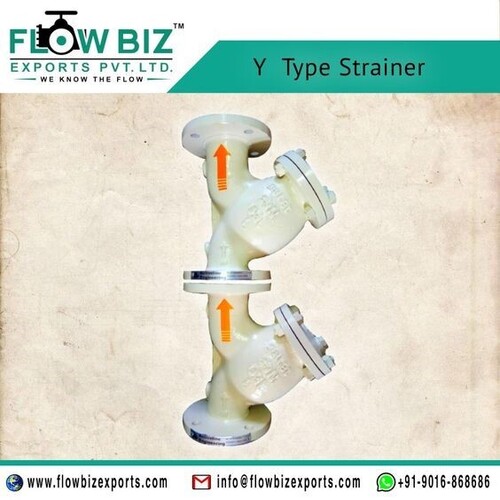

An industrial PTFE-Lined Y-Type Strainer provides a heavy-duty, severe-service filtration solution. It features a compact mechanical footprint designed to trap and retain solid particles while maintaining absolute chemical inertness. By completely encapsulating the internal fluid path and the strainer leg with a thick, heavy-duty layer of PTFE (Polytetrafluoroethylene), the underlying metallic pressure housing is completely isolated from the corrosive stream. This matches the mechanical strength of an external carbon steel or stainless steel shell with the universal chemical resistance of a fluoropolymer matrix.

                    PTFE-Lined Inline Filtration Path


 [ Corrosive Media ]  [ PTFE-Lined Slanted Leg ]  [ Cleaned Media ]
  (Acids & Slurries)      [ Traps Solid Particles  ]      (Downstream Safety)

                                       (Removable Flange Cover)

                          [ Cleanable Screen Mesh ]

FlowBiz Exports is an elite global fluid-handling brand and a premier PTFE Lined Y Type Strainer Manufacturer in Pune, Maharashtra, India. We focus on precision engineering high-performance lined filters designed to deliver long-term protection for critical downstream assetssuch as lined pumps, glass-lined reactors, and precise control valvesunder severe working conditions.

Technical Specifications & Compliance Parameters

FlowBiz PTFE-lined Y-strainers are precision-machined and tested to meet strict international design and pressure containment standards, enabling direct compatibility with global piping grids.

Core Product Configuration Matrix

Critical Engineering Features & Safety Benefits

1. Superior Chemical Resistance & Non-Stick Properties

The thick, molded PTFE lining forms an impenetrable physical barrier that completely isolates aggressive chemicals from the primary metal housing. Because virgin PTFE features a non-reactive molecular structure, it prevents internal corrosion, pitting, and media contamination. Additionally, its inherent non-stick properties optimize flow, reduce pressure drops (P), and prevent viscous media or chemical slurries from sticking to the internal walls.

2. High Thermal Resiliency up to 200C

While standard plastic linings can warp or soften under severe temperature variations, our high-density PTFE lining is engineered to maintain structural stability across steep thermal gradients. This high resilience enables process plants to run volatile, high-temperature reactions up to 200C without risking linear distortion, mechanical failure, or vacuum collapse, ensuring long-term operational durability.

3. High Mechanical Strength with an SS 304 Disc

To complement the chemical resistance of the fluoropolymer lining, FlowBiz incorporates a heavy-duty SS 304 internal structural support disc. This high-alloy core provides excellent structural strength, handles sudden line pressure surges, and resists mechanical erosion. This combination ensures the strainer remains robust enough to withstand frequent manual cleaning cycles without losing its sealing integrity.

                      Flexible Piping Integration



                Universal Flanged Configuration Options




 [ Horizontal Pipeline Runs ]                             [ Vertical Piping Loops ]
 (Slanted Leg Oriented Downward)                          (Media Moving in Downward Flow)

Strategic System & Industrial Applications

Our standard-compliant, high-temperature lined Y-strainers are installed across demanding processing sectors to protect downstream equipment:

• Chemical Processing & Synthesis Facilities: Filtering out contaminants from raw acid feeds, caustics, reactive solvents, and volatile chemical pipelines.

• Power Generation & Boiler Utilities: Positioned along aggressive utility lines, water treatment circuits, and chemical feed loops up to 200C.

• Petroleum Refineries & Petrochemical Units: Intercepting particulate scale, rust, and process solids inside hydrocarbon manifolds and wash lines.

• Water Management & Effluent Treatment Infrastructure: Protecting high-volume pumps, monitoring instruments, and valves from blockages or slurry damage.

• Nuclear Power Facilities: Meeting strict material safety guidelines to ensure reliable, high-purity fluid filtration in auxiliary circuits.

Frequently Asked Questions (FAQ)

Q: Why should a plant manager select a PTFE-lined Y-strainer over a standard unlined metallic strainer?

A: Standard unlined metallic strainers suffer from rapid corrosion and material loss when handling highly aggressive process fluids. This degradation can lead to fluid contamination from oxidized metal particles, which can ruin high-purity chemical or pharmaceutical batches. A PTFE-Lined Y-Type Strainer provides complete corrosion resistance and a leak-proof barrier. This protects the outer steel pressure housing from chemical attack, ensuring long-term pipeline safety and lowering maintenance costs.

Q: What specific customization options are available for the port size and connection interfaces?

A: Sourcing and project engineering teams can establish a customized production profile to ensure a seamless drop-in fit with their pipeline infrastructure. FlowBiz provides fully customizable port sizes tailored to match your specific line diameter requirements. Additionally, connection flanges can be precision-machined to align with international standardsincluding ANSI, DIN, JIS, ASME, and BS drilling templatesensuring smooth system integration and optimal flow rates.

Q: When and how often should a manual Y-strainer be cleaned or maintained?

A: The cleaning frequency depends on the nature and volume of solid contaminants in your process media. Maintenance teams should periodically inspect the strainer by tracking pressure differentials (P) across the line. A notable increase in pressure drop indicates that debris has accumulated in the slanted leg pocket. To clean the unit, isolate the pipeline section, vent internal pressure, loosen the flange cover on the slanted leg, and rinse out the internal screen mesh to restore efficient flow control.

Q: Can these strainers be safely installed in both horizontal and vertical pipeline positions?

A: Yes. FlowBiz Y-type strainers can be installed in both horizontal and vertical pipeline orientations. During installation, field technicians must follow two critical alignment rules:

• Horizontal Lines: Mount the strainer with its slanted leg pocket pointing downward to allow gravity to trap particles cleanly.

• Vertical Lines: The strainer can be safely used only if the process media travels downward. This ensures captured contaminants collect inside the pocket rather than falling backward down the piping system during routine cleaning.
