Welcome to FlowBiz Export Private Limited, a certified global engineering authority for severe chemical isolation, ultra-pure fluid management, and advanced corrosion-containment systems. Operating specialized metallurgical foundries, high-precision molding laboratories, and automated electrostatic insulation testing lines, we are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty PTFE / PFA / FEP / Teflon-Lined Ball Valves, Pipes, and Fittings.

Our high-integrity lined piping assets are engineered to establish an absolute, non-reactive physical boundary within systems routing aggressive mineral acids, volatile caustics, and toxic reagents. We seamlessly support critical processing infrastructure across India's primary industrial corridorsincluding Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, and Chennaibacked by fast-tracked global maritime freight channels for rapid international project export.

Technical Specifications & Lining Compliance Grid

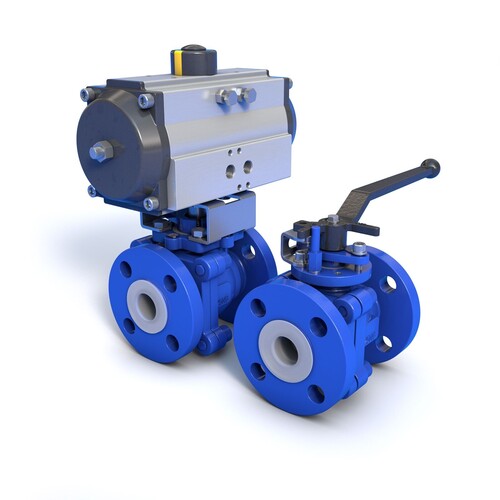

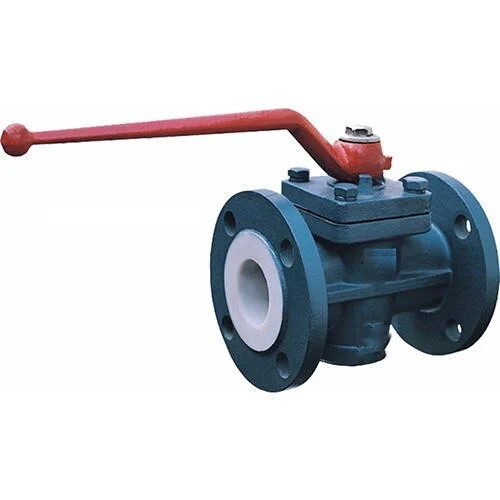

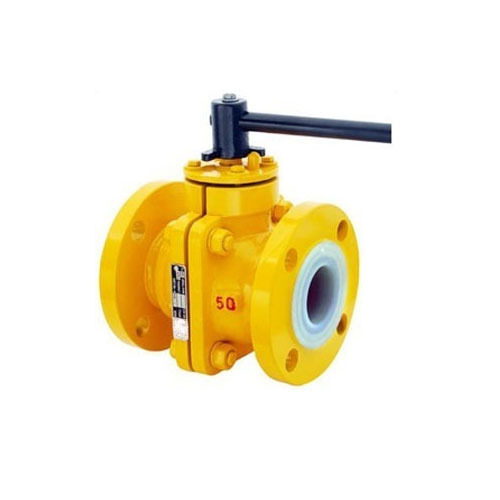

FlowBiz Fluoropolymer-Lined Ball Valves incorporate a full-port, cavity-free design where the internal fluoropolymer liner is locked securely into the outer pressure shell. The lining covers all wetted internal surfaces and flows seamlessly out over the flanged sealing faces, preventing aggressive process fluids from making contact with the underlying metallic casing.

Core Engineering Features & Design Advantages

1. High-Tensile Carbon Steel Shell with Premium Virgin PTFE Lined Shield

To prevent structural deformation under continuous thermal cycling and high pipeline stresses, our valve bodies are cast from heavy-duty ASTM A216 WCB carbon steel or high-tensile ductile iron. The interior wetted surfaces are completely lined with a 3

3 mm to 5 mm layer of premium virgin PTFE or PFA. This high-purity polymer lining shields the metal housing from chemical erosion and localized pitting, ensuring structural reliability under high pressure at temperatures up to 200C.

2. Full-Bore Flow Profile with Integrated Dovetail Locking

When handling viscous fluids or aggressive water treatment chemicals, localized flow restrictions can cause severe turbulence and accelerated seat wear. FlowBiz ball valves utilize a straight-through, full-bore design that allows the process fluid to flow smoothly without pressure drops. To prevent the lining from collapsing or pulling away under full vacuum lines or high-velocity flows, the internal metal casing is cast with anchoring dovetail slots that mechanically lock the fluoropolymer lining firmly in place.

3. Integrated Flanged Gasket Faces for Zero-Leakage Joints

Our engineers have designed the internal PTFE body liner to wrap completely over the raised face flanged end connections. When the valve is bolted into a pipeline layout, the companion pipe flanges compress directly against this extended polymer layer. This creates a tight, positive face gasket seal that completely eliminates the need for separate flange gaskets, reducing potential failure points and simplifying life-cycle maintenance routines.

4. High-Voltage Spark Testing for Absolute Quality Assurance

Even a microscopic fracture or pinhole inside a molded fluoropolymer lining can allow aggressive acids to slowly seep through, attacking and corroding the outer metal body from the inside out. To prevent this type of catastrophic failure, FlowBiz subjects 100% of our lined valves, pipes, and fittings to a high-voltage electrostatic spark test calibrated from 10

10 kV to 15 kV. This rigorous step ensures a completely continuous, non-porous chemical shield before factory assembly.

Strategic Severe-Service Industrial Applications

FlowBiz high-purity fluoropolymer-lined ball valves and piping networks are specified across primary processing lines:

• Aggressive Chemical Processing Plants: Transfer, routing, and absolute isolation of concentrated sulfuric, hydrochloric, nitric, and hydrofluoric acids, as well as highly volatile caustic brines.

• Pharmaceutical & Biotech Facilities: Pure fluid transfer lines, bulk solvent handling loops, fine chemical batching skids, and areas requiring zero contamination risk.

• Industrial Wastewater & Water Treatment: Chemical dosing skids, ion-exchange regeneration lines, acid washdown networks, and highly corrosive municipal effluent loops.

• Petrochemical & Mining Utilities: Handling highly corrosive process chemical streams, slurry transport lines, and chemical recovery headers.

Comprehensive Lined Piping Accessories Portfolio

To provide project procurement managers and engineers with a complete single-source B2B solution, FlowBiz manufactures a comprehensive range of lined piping components:

• PTFE/PFA Lined Pipes: Spool pieces fabricated from carbon steel pipe with tight-fit fluoropolymer liners, available in custom lengths.

• PTFE/PFA Lined Fittings: Heavy-duty flanged 90

  90 and 45

•  elbows, equal tees, reducing tees, concentric reducers, and eccentric reducers.

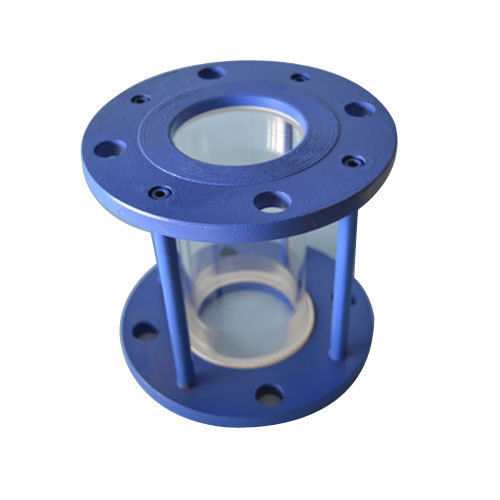

• Pipeline Protection Accessories: Lined sight flow indicators, instrument tees, and custom reduction manifolds.

Frequently Asked Questions (FAQ)

Q: Why do fluoropolymer-lined ball valves utilize carbon steel or ductile iron bodies instead of cast iron?

A: Under international pressure piping codes like ASME B16.34, standard cast iron is legally and structurally restricted from high-temperature or high-pressure chemical lines due to its brittle nature and low impact resistance. Exposing cast iron to a thermal spike at 200C could cause sudden structural cracking. FlowBiz utilizes high-tensile Cast Carbon Steel (WCB) or Ductile Iron to ensure the valve has the necessary structural mass, yield strength, and mechanical safety required for high-consequence chemical process lines.

Q: What is the main operational difference between choosing a PTFE lining and a PFA lining?

A: Virgin PTFE provides exceptional chemical inertness and is highly cost-effective for standard chemical processing lines. However, PTFE must be compressed and sintered, which can leave a minor level of microscopic porosity. PFA (Perfluoroalkoxy) is a melt-processable polymer that is injected under heat and pressure. This creates a denser, completely non-porous lining matrix that offers superior resistance to chemical permeation, higher mechanical toughness, and excellent performance in full vacuum systems.

Q: Why are lined ball valves preferred over regular high-alloy stainless steel valves for acid lines?

A: High-alloy metals like Hastelloy, Titanium, or Monel can withstand aggressive acids, but they are exceptionally expensive and subject to volatile global commodity pricing. A FlowBiz Fluoropolymer-Lined Valve pairs a cost-effective cast steel outer body with an ultra-pure plastic lining. Because the PTFE/PFA shield completely isolates the metal from fluid contact, it provides identical or superior corrosion resistance to premium alloys at a fraction of the capital cost, offering an optimal B2B solution.

Q: How does manual operation affect the long-term maintenance costs of a lined valve network?

A: Manual operation via a high-leverage hand lever or an enclosed worm gearbox provides straightforward, dependable quarter-turn control without relying on external electricity or compressed air lines. This eliminates the need for complex instrumentation wiring, positioner calibration, or air regulators. It provides a robust, zero-utility option that is ideal for isolated manifolds, modular chemical skids, or plant utility areas where automated control loops are unnecessary.

Q: How can project procurement managers and engineers coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales division in Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (1/2 in to 12), explicit chemical media properties and concentrations, working vacuum or pressure profiles, and required lined piping accessoriesto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an aggressive chemical process manifold or upgrading a high-purity water treatment dosing skid? Contact our sales and engineering office today to receive comprehensive technical sheets, certified structural blueprints, and an itemized commercial proposal.
