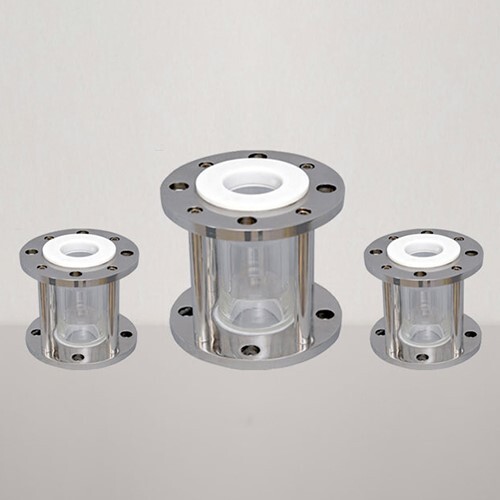

About Vadodara Full View Sight Glass Manufacturer & Supplier

Industrial Full View Sight Glasses: Comprehensive Technical Specifications and Monitoring Solutions

In continuous-process industries, maintaining real-time visibility over pipeline dynamics is essential for quality control, safety verification, and proactive troubleshooting. A Full View Sight Glass (or cylindrical window sight flow indicator) serves as a high-integrity inspection window providing an unobstructed, 360-degree look into a fluid stream.

Unlike standard window sight indicators that only offer a limited view from one side, the full view design completely replaces a section of the pipeline with a heavy-duty, transparent cylinder. This allows operators to immediately check for process continuity, verify fluid clarity, observe color transformations, and spot line turbulence or phase changes from any angle.

FlowBiz Export Pvt. Ltd. is a leading global brand and an elite Full View Sight Glass Manufacturer in Vadodara, Gujarat, India. We specialize in engineering sturdy, high-pressure visual monitoring fittings that handle extreme thermal profiles and aggressive process fluids across domestic and international markets.

Technical Architecture & Configuration Framework

FlowBiz Full View Sight Glasses are engineered by pairing robust metallic structural supports with thermal-shock-resistant glass cylinders, preventing mechanical deformation under high piping stress.

Key Technical Matrix

Parameter	Specification Details
Brand	FlowBiz
Design Type	Full View Type / 360-Degree Cylindrical Visual Indicator
Material of Construction (MOC)	Heavy-Duty Cast Iron (CI), Carbon Steel (CS), or Premium Stainless Steel (SS 304 / SS 316)
Glass Cylinder Composition	Toughened Borosilicate Glass (High thermal shock resistance)
Internal Structural Trim	Corrosion-Resistant SS 304 Discs / Tie-Rods
Thermal Operating Envelope	Rated for continuous performance at temperatures up to 200C
End Connection Styles	Screwed (NPT/BSP Threaded) or Standard Flanged Ends
Customization Framework	Precision-tailored port sizes and customized face-to-face dimensions

Critical Engineering Features & Process Benefits

1. Unobstructed 360-Degree Visibility

The definitive benefit of the full view design is maximum visibility. Operators do not need to rely on external lighting positioned behind a narrow window; the transparent borosilicate cylinder permits ambient light to illuminate the process fluid completely, making it simple to accurately evaluate turbidity, detect trapped gas bubbles, and assess fluid purity.

2. Toughened Borosilicate and Premium Metallurgy

Handling industrial liquids at elevated temperatures reaching up to 200C requires specialized materials. Our sight glasses utilize premium-grade toughened borosilicate glass, which features an incredibly low coefficient of thermal expansion. This ensures the window resists shattering when subjected to sudden thermal shocks, while the rugged SS 304 structural components protect the body from corrosive fluid splashes or harsh ambient environments.

3. Fail-Safe Mechanical Architecture & Minimal Upkeep

Operating as a manual inline verification instrument, this sight glass requires zero electrical power, calibration, or complex sensor wiring. Its straightforward physical construction eliminates automated failure points, providing a dependable, cost-effective, and virtually maintenance-free visual diagnostic loop for field technicians.

Strategic Industrial Application Scope

• Marine & Offshore Engineering: Safely monitoring bilge lines, fuel transfers, and seawater cooling loops for aeration or contamination.

• Chemical Processing & Refineries: Checking color transitions during chemical reactions and ensuring the steady flow of aggressive process fluids.

• Textile & Dyeing Industries: Visually verifying dye-purity, concentration consistency, and wastewater chemical levels in discharge lines.

• Power Generation & Nuclear Plants: Visually auditing condensate lines, oil lubrication loops, and auxiliary cooling water systems.

• Wastewater Treatment Facilities: Spotting sludge carryover, evaluating filtration clarity, and monitoring chemical dosing lines.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between a Full View Sight Glass and a standard double-window sight indicator?

A: A double-window sight indicator features small, flat glass panes bolted to the sides of a solid metallic valve body, restricting observation to a straight line of sight. A Full View Sight Glass utilizes a solid glass cylinder that breaks down all visual barriers, giving operators an all-around, 360-degree perspective of the fluid behavior inside the pipe.

Q: Why is toughened borosilicate glass specified over standard soda-lime glass?

A: Standard glass is highly brittle and prone to shattering when exposed to sudden temperature changes (thermal shock) or high mechanical pressures. Toughened borosilicate glass is engineered with a high silica content, which provides exceptional mechanical strength, chemical erosion resistance, and the ability to safely transition through temperature spikes up to 200C without fracturing.

Q: What is the technical process for ordering a customized sight glass from Vadodara?

A: The ordering workflow is engineered for precise system alignment. During the initial inquiry phase, clients share their specific piping specificationsincluding nominal line diameter, connection type (screwed or flanged), process media chemistry, maximum pressure profile, and operating temperature. Our Vadodara-based engineering division reviews these parameters to provide design recommendations and precision-fabricate a tailored sight glass that slots perfectly into your existing infrastructure.

Q: What routine maintenance does a manual full view sight glass require?

A: Because it is a non-automated component, routine maintenance is exceptionally simple. It involves periodically checking the external tie-rods for uniform tightness and visually inspecting the borosilicate cylinder for any internal scale accumulation or chemical etching. If cleaning becomes necessary, the pipeline can be isolated and depressurized, allowing the glass tube to be wiped clean down to its original transparent condition.
