Industrial Duplex Strainers: Non-Stop Fluid Filtration and High-Capacity Engineering Standards

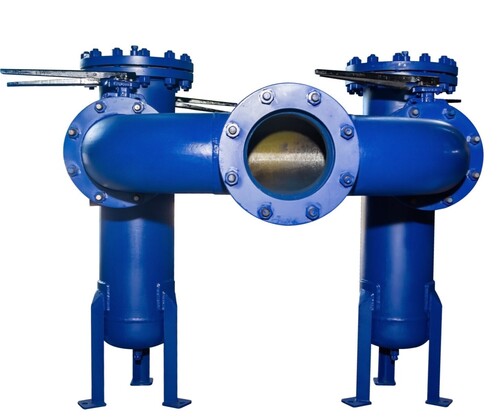

In continuous-process industries, plant downtime is extremely costly. Systems that handle fuel, oil, lubricating fluids, or cooling water cannot be shut down simply to clean a clogged filter or pipeline strainer. A Duplex Strainer (or twin basket strainer) solves this challenge by integrating two separate strainer basket housings into a single parallel fluid system with an isolation valve manifold.

Using an integrated diverter handle or automated valve mechanism, operators can seamlessly shift the entire fluid volume from a dirty chamber to a clean chamber. This allows for inline basket servicing, cleaning, or replacement with zero interruption to the system's volumetric flow or pressure.

FlowBiz Exports Pvt. Ltd. is an elite global brand and a premier Duplex Strainers Manufacturer in Vadodara, Gujarat, India. We design, engineer, and supply robust twin-basket filtration solutions built to safeguard high-value downstream pumps, nozzles, and heat exchangers in demanding global industries.

Technical Specifications & Parameter Matrix

FlowBiz Duplex Strainers are manufactured using advanced casting and fabrication techniques, ensuring a seamless drop-in fit with international piping manifolds.

Standard Engineering Matrix

Technical Advantages of FlowBiz Twin Basket Strainers

1. Dual-Chamber Design for Zero-Shutdown Filtration

The parallel housing layout ensures that a clean filtration pathway is always on standby. When a differential pressure rise indicates that the active basket is accumulating debris, turning the central changeover handle effortlessly reroutes the fluid. This eliminates maintenance-induced shutdowns, maintaining system continuity.

                  [ Inlet Header ]



     [ Chamber Alpha ]       [ Chamber Beta ]
      (Active Filtering)      (Standby / Clean)




                  [ Outlet Header ]

2. Premium Stainless Steel 304 Performance

High-temperature water loops and chemical streams can cause accelerated erosion and corrosion in substandard filters. By utilizing premium SS 304 for the internal basket assemblies and structural discs, our strainers handle high thermal loads up to 200C. They resist pitting and oxidation, ensuring long service life under high thermal stress.

3. Customizable Port Engineering and Optimum Finish

To fit precisely into unique pipeline footprints without forcing expensive piping modifications, FlowBiz offers customizable port configurations. Our engineering team assesses your hydraulic flow curves, viscosity profiles, and face-to-face dimensions to deliver a customized unit with a smooth internal and external finish that maximizes flow capacity (Cv) and reduces system friction.

Strategic Industrial Application Scope

• Refineries & Lubrication Systems: Filtering fuel oils, heavy hydrocarbons, and continuous turbine bearing oils to protect critical rotating equipment.

• Power Generation Facilities: Managing cooling tower water, boiler feed loops, and auxiliary water lines that cannot tolerate flow stoppages.

• Chemical Processing Plants: Stripping particulate contaminants from liquid process streams, solvents, and acids while protecting inline instruments.

• Nuclear Power Operations: Meeting strict global material standards to handle critical auxiliary cooling loops safely.

• Water Treatment & Desalination: Positioned upstream of high-pressure membranes and multi-stage distribution pumps to prevent fouling and debris wear.

Frequently Asked Questions (FAQ)

Q: When exactly should a manual Duplex Strainer be switched to the standby chamber?

A: A changeover should be performed when an inline differential pressure (Pressure Difference) gauge indicates a noticeable pressure rise across the active chamber, signaling that the filter basket is filling up with scale and debris. Plant operators can also establish routine switchover schedules based on historical fluid contamination levels to clean baskets before flow restrictions occur.

Q: How do SS 304 internal discs and baskets perform under high thermal stress?

A: Stainless Steel 304 maintains exceptional mechanical strength and uniform dimensional stability at elevated operating temperatures up to 200C. This prevents the filter frame from warping or bypassing fluid under thermal stress, keeps internal changeover tolerances sharp, and prevents rust scale from binding the internal basket seats.

Q: What is the technical customization process for a new pipeline build?

A: Our engineering facility in Vadodara, India, follows a deeply consultative design process. Clients share their target volumetric flow rates, system velocity limits, fluid viscosity, and existing piping schematic dimensions. Our technical team then models the double-housing architecture, configures the internal basket perforations or mesh liners, and subjects the completed duplex unit to rigorous hydrostatic pressure testing before worldwide export delivery.

Q: Where should a twin basket strainer be strategically placed inside a plant layout?

A: Duplex strainers must be installed on the horizontal suction lines immediately upstream of high-value, continuous-running assets such as high-pressure pumps, heat exchangers, control valves, or spray nozzles. This early placement captures pipe thread tape, weld slag, and suspended debris before they can cause internal pump cavitation, impeller erosion, or blockages in downstream equipment.
