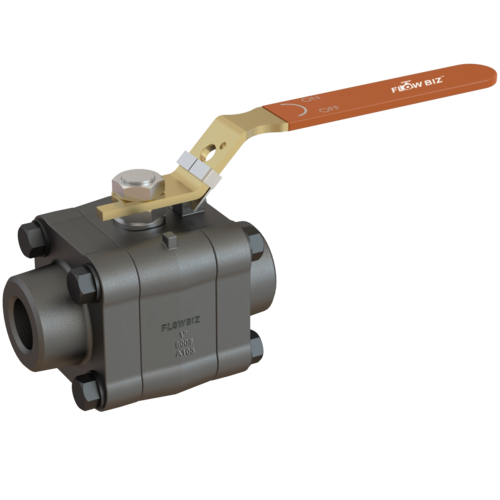

FlowBiz Exports is a premier, engineering-driven manufacturer, supplier, and global exporter of severe-service Forged Steel Ball Valves in India. Operating from our key heavy manufacturing zonesincluding Kheda, Gujaratwe design and manufacture these high-integrity valves specifically to endure the extreme structural loads, intense pressure spikes, and harsh environmental weathering characteristic of long-distance transport pipelines and critical downstream refineries.

Transmission pipelines carrying crude oil, refined petroleum products, and high-pressure natural gas stretch over thousands of miles, crossing demanding terrains and marine environments. To prevent catastrophic pressure boundary failures, the FlowBiz forged steel series utilizes an all-welded or heavy bolted forged body construction. By selecting ultra-dense forged steel blocks over traditional castings, we completely eliminate the risks of internal micro-porosities, sand holes, or longitudinal weld seam failures, ensuring maximum structural integrity for midstream and high-pressure process grids.

Technical Specifications & Engineering Standards

Our forged steel pipeline series is precision-machined from fully certified raw stock to satisfy rigid international midstream criteria:

Advanced Materials Matrix for Pipeline Stress & Temperature Resilience

Long-distance midstream piping demands exact metallurgical chemistry to withstand continuous pipeline stress, ground shifting, and ambient thermal fluctuations. FlowBiz provides an expansive range of fully certified forged steel materials:

• Carbon Steel (ASTM A105 / A105N): The industry standard for heavy-duty, high-pressure utility services, steam distribution, and standard oil & gas transmission lines.

• Low-Temperature Carbon Steel (ASTM A350 LF2): Specifically engineered for low-temperature climates and cryogenic gas installations, ensuring exceptional impact toughness down to sub-zero thresholds.

• Austenitic Stainless Steel (ASTM A182 F304 / F316 / F304L / F316L / F347): Specified for aggressive chemicals, volatile vapors, and corrosive media where high material purity and zero corrosion rates are mandatory.

• Duplex & Super Duplex Alloys (ASTM A182 F51 / F50 / F55 / F60): Offering supreme mechanical strength and resistance to pitting and chloride stress corrosion cracking in offshore maritime and sour gas (HS) lines.

Strategic Design & Mechanical Safety Features

1. All-Welded Forged Body Architecture

For critical cross-country pipelines, our all-welded forged body configuration provides the ultimate protection against external fugitive emissions. By permanently fusing the forged body segments into a unified pressure vessel, we completely eliminate body bolting, gaskets, and intermediate flanges. This removes any potential path for external fluid weeping or atmospheric gas leaks under severe pipeline bending stresses.

2. Redundant Double-Seal Assembly System

To guarantee long-term field reliability, all internal seal interfacesincluding the dynamic seat ring assembliesincorporate a redundant system of double seals. Each sealing boundary utilizes a primary soft polymer seal (such as PTFE or RPTFE) backed by a secondary resilient elastomeric or fire-safe graphite ring. This multi-layered defense ensures absolute isolation even if the primary barrier is scoured by incoming line debris.

3. Rapid Quarter-Turn Operation & Prompt Flow Stoppage

Manual fluid regulation is fast and intuitive. Rotating the heavy-duty lever handle a precise quarter-turn (90) achieves an immediate start-stop fluid arrest. This rapid mechanical response is crucial for cross-country pipelines and refineries where prompt, reliable flow stoppage is needed to isolate line ruptures, stabilize upstream pressures, and protect downstream process equipment.

Flexible Pipeline Connectivity Matrix

FlowBiz forged steel ball valves are engineered to integrate seamlessly into new capital projects or existing piping retrofits across diverse end connection profiles:


                        Piping Connectivity Matrix



 ANSI Flanged Ends         Welded End Joints         Screwed/Threaded



  Raised Face (RF) or         Butt Weld (BW) for          Screwed NPT/BSP
  Ring Type Joint (RTJ)       permanent, zero-leak        for low-profile
  for high-vibration lines.   transmission lines.         instrument skids.

Frequently Asked Questions (FAQs)

Q: Why is an all-welded forged body preferred for long-distance outdoor pipelines?

A: Long-distance transmission lines are exposed to harsh outdoor environments, shifting ground soils, and severe thermal expansion or contraction. Standard bolted valves have intermediate body gaskets that can degrade or weep under these constant mechanical bending stresses. An all-welded forged steel body eliminates longitudinal welds and body bolts entirely, transforming the valve into a single, continuous pressure vessel. This structural design removes external leak paths, ensuring zero atmospheric emissions and long-term service reliability in remote, unmonitored outdoor stations.

Q: When is it necessary to specify a metal-seated forged ball valve instead of PTFE?

A: You should opt for hard-faced metal seats when your application involves superheated steam loops, abrasive suspended particles (such as sand, scale, or catalyst fines), or extreme temperatures where soft polymers like PTFE or RPTFE would degrade, score, or suffer from cold-flow distortion. Metal seats provide high wear resistance, mechanical durability, and reliable leak resistance under severe-service pipeline conditions.

Q: How does the API 6D testing protocol guarantee the safety of my refinery or chemical plant?

A: API 6D is the strict international standard governing pipeline valves. At FlowBiz, 100% of our forged steel production line undergoes both high-pressure hydrostatic and low-pressure pneumatic testing in strict compliance with API 6D and BS 5351 criteria. We independently verify the structural density of the shell and the sealing integrity of the internal seats to guarantee a certified Class VI bubble-tight shut-off, providing safe and dependable process control under maximum working pressures.

Q: Why choose FlowBiz as your long-term forged steel ball valve partner in Kheda?

A: Operating from Kheda, FlowBiz Exports balances world-class heavy industrial manufacturing with meticulous quality control. By using premium, fully traceable forged metallurgies (A105, LF2, F316, Duplex), providing flexible connection options from 15 mm to 300 mm, and applying specialized anti-corrosive exterior shields, we eliminate operational risks in the field. Our ability to deliver robust, low-maintenance high-pressure fluid control equipment that meets stringent international safety compliance rules makes us a trusted supply chain partner for critical pipeline installations across India and worldwide.
