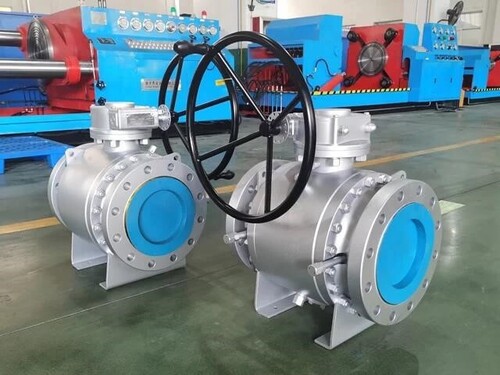

FlowBiz Severe-Service Trunnion Mounted Ball Valves High-Integrity Process Control

Welcome to the engineering authority for high-pressure fluid containment, low-torque mechanical pipeline isolation, and heavy-duty utility management. Operating advanced multi-axis CNC turn-mill machinery, precision spherical-lapping cells, and API-certified high-pressure testing corridors, FlowBiz specializes in manufacturing premium Trunnion Mounted Ball Valves.

Our trunnion-mounted design delivers critical structural advantages over standard free-floating valves. By anchoring the polished spherical ball directly to fixed upper and lower trunnion shafts, the ball is locked along its vertical axis and cannot float downstream. This configuration ensures a perfect, uniform seal on both the upstream and downstream sides simultaneously. Because the pipeline's immense fluid thrust is absorbed directly by the valve's heavy-duty internal bearings rather than the soft seating rings, stem torque remains low and steady. This drastically reduces actuator sizing, protects the packing seals from side-load wear, and cuts long-term operating costs significantly compared to floating configurations.

Technical Specifications & Compliance Parameters

Every FlowBiz trunnion-mounted production block is built to meet strict global engineering codes and undergoes 100% rigorous high-pressure hydrostatic testing, double block and bleed verification, and certified fire-safe testing before shipment.

Kinematics & Low-Torque Trunnion Bearing Architecture

The structural safety of the FlowBiz trunnion mounted valve relies on splitting high pipeline loads away from the drive stem and onto fixed internal bearings:

 OPEN FLOW PROFILE (ANCHORED ROTATIONAL CORE) CLOSED COLD-SHUTOUT (SEAT-ENERGIZED SEALING) [ ACTUATOR / GEAR DRIVE ] [ DUAL BODY GASKET SEALS ] \/ \/ +------------------------+ +------------------------+ | NACE Compliant Packing | | No Stem Side-Thrust Load| +--+------------------------+--+ +--+------------------------+--+ | [ DUAL FLOATING SEATS ] | | [ PRESSURE ENERGIZED SEAT | /---| |---\ | | /================\ | ===================>| | Fixed Upper| |================>|====>| Line fluid pushes| | Upstream Pressure High-Velocity Line | | Trunnion | | Unrestricted | | floating seat | | Drives Seat Core Fluid Inflow Stream | | Bearing | | Straight Flow | | tightly into ball| | into Bubble-Tight | \---| |---/ | | \================/ | +-------------------------+ +-----+==============+-----+ | Fixed Lower Trunnion | | Lower Mechanical Bearing| +------------------------+ +------------------------+

• Fixed Mechanical Bearing Support: The ball core features integrated upper and lower trunnion pivots that are held rigidly in place by self-lubricating sleeve bearings. This prevents the ball from moving forward under sudden high-pressure surges, keeping operating torque low and uniform during both low and high-pressure cycles.

• Pressure-Energized, Floating Seat Rings: In a trunnion valve design, the seats float instead of the ball. Integrated wave springs push the seat rings firmly against the polished sphere to ensure a tight seal at low pressures. As line pressure rises, the fluid flows behind the seat assembly, pushing the seat ring against the ball face to maintain a reliable, bubble-tight seal.

• Fugitive Emission Prevention: Because the fixed trunnion bearings absorb all lateral pipeline forces, the drive stem experiences only pure rotational torque. This removes any uneven side-thrust on the packing, keeping the low-emission packing rings aligned and eliminating external leak paths.

Core Engineering Features & Plant Benefits

• Premium Stainless Steel Build: Precision-machined from high-grade stainless steel alloys, our valves offer exceptional resistance to chemical pitting, erosion from high fluid velocities, and external corrosion.

• Wide Temperature Resilience: Engineered to function seamlessly from freezing -40F up to high-heat 392F, allowing a single valve model to handle both cold utilities and hot manufacturing operations.

• True Double Block and Bleed (DBB): Both upstream and downstream seats form an independent seal against the ball core. Trapped fluid inside the center body cavity can be safely vented or drained, allowing operators to verify seal integrity safely while the pipeline remains under full operational pressure.

• Full NACE Compliance: Built to meet strict ANSI/NACE MR0175 and ISO 15156-2 standards, ensuring excellent resistance to sulfide stress cracking and hydrogen embrittlement in sour gas environments.

Strategic Industrial Application Sectors

• Oil, Gas, & Refining Manifolds: Managing long-distance hydrocarbon transmission, offshore production grids, tank storage lines, and high-velocity oil pipelines.

• Chemical Processing Facilities: Regulating aggressive acid lines, volatile intermediate reagents, and chemical feedstocks.

• Water Treatment & Desalination Infrastructure: Controlling high-capacity water transport systems, high-pressure pump discharge headers, and reverse osmosis filtration manifolds.

• HVAC & District Energy Networks: Isolating high-pressure utility water networks, commercial central chiller manifolds, and low-pressure steam headers.

Comprehensive Supply Chain & Export Network

Operating out of our primary logistical hub in Mumbai, Maharashtra, FlowBiz manages an efficient national and global distribution network. Sourcing from this strategic location provides quick access to major shipping ports and transportation networks, enabling prompt delivery, complete material traceability, and responsive technical support across all major industrial regions:

• Gujarat Processing Hubs: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, and Bharuch.

• Maharashtra & Central Industrial Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, and Bhopal.

• Southern Manufacturing Zones: Chennai, Coimbatore, Salem, and all other major regional industrial centers.

Frequently Asked Questions (FAQ)

Q: How does a trunnion mounted ball valve function in different media such as air, liquid, and gas?

A: A trunnion mounted ball valve utilizes a polished sphere supported by fixed bearings at both ends. This design keeps the ball fixed in place along its vertical axis, allowing independent, spring-loaded seat rings to form a tight seal against it. This layout dramatically reduces friction and operating torque, making the valve highly effective for isolating high-pressure air, liquids, and gases.

Q: What benefits does stainless steel provide for ball valves operating within -40F to 392F?

A: Premium stainless steel provides excellent structural strength, high durability, and outstanding resistance to chemical corrosion and rust. This resilience ensures the valve faces suffer no material degradation or thermal binding across a broad temperature range from -40F up to 392F, providing dependable sealing in harsh industrial environments.

Q: When should trunnion mounted ball valves be chosen over other valve types?

A: Trunnion mounted ball valves are highly recommended for large pipe diameters, high-pressure lines, or applications requiring double block and bleed safety. Because the internal bearings absorb the fluid's kinetic energy, these valves maintain tight, reliable sealing under intense pressures while keeping operating torque remarkably low.

Q: Where are your trunnion mounted ball valves typically installed?

A: Our valves are widely specified across petrochemical refineries, natural gas distribution networks, large-scale water treatment facilities, chemical processing manifolds, and high-duty commercial HVAC piping headers across India and global markets.

Q: What is the process for installing a flanged end ball valve?

A: Installation involves aligning the valve faces squarely with the pipeline's partner flanges, placing a compatible gasket between them, and torqueing high-tensile studs in an alternating cross-pattern. This creates a secure, leak-proof mechanical joint that can handle line vibration and thermal expansion well.

Q: How does being a manufacturer, exporter, supplier, and trader in Mumbai benefit customers?

A: Sourcing from our Mumbai footprint gives your enterprise competitive factory pricing, strict quality control, and streamlined access to international export logistics. We offer prompt shipping, complete material traceability certificates, and responsive technical support.

Are you updating a high-pressure petrochemical manifold that requires an API 6D trunnion ball valve with a direct-mount actuator top-works, or configuring a gas transmission header in Mumbai that demands a NACE-compliant stainless steel double block and bleed setup? Contact our technical sales division in Mumbai today to secure a factory-direct quote, or ask a single relevant question regarding your specific line pressure or fluid medium parameters below to guide the conversation forward.
