High-Performance Multiport Ball Valves (3-Way & 4-Way) | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of high-performance Multiport Ball Valves in India. Operating from major industrial and logistical hubs in Gandhidham and Vadodara (Gujarat), we engineer these multi-directional valves to meet complex flow routing requirements.

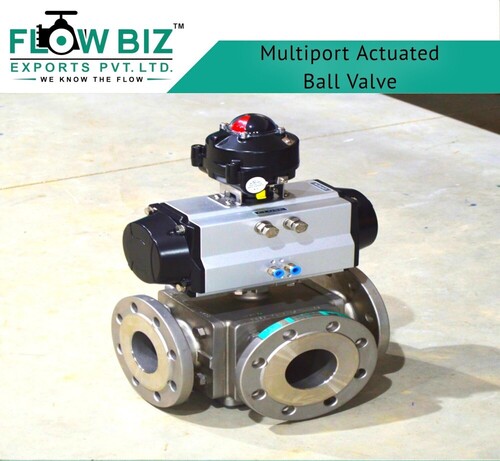

A FlowBiz multiport ball valve features more than two ports and is designed for 3-way or 4-way fluid control. By integrating multi-channel routing into a single device, plant engineers can select multiple flow paths, divert streams, or mix media seamlessly. This architecture completely eliminates the need for redundant piping networks, T-junctions, and extra inline shutoff valves, drastically minimizing space constraints and reducing potential atmospheric leakage points.

Technical Specifications & Compliance Standards

Our multiport valve production lines follow rigid international engineering guidelines to ensure flawless pressure containment and system uniformity:

Material Versatility & Structural Customization

1. Mixed End Connections on a Single Valve

To accommodate unique or complex pipeline layouts, FlowBiz provides a unique engineering advantage: the ability to mix connection profiles on a single valve. For example, a single multiport valve can be manufactured with a flanged inlet port paired with socket weld or threaded outlet ports. Many operational components remain fully convertible between different models, maximizing field adaptation and lowering spare-part inventory costs.

2. Tailored Seating & Structural Support

• Resilient Soft Seats (PTFE / CFT): Virgin PTFE provides universal chemical resistance and incredibly low turning friction for clean process fluids. Carbon-Filled Teflon (CFT) adds structural rigidity, offering superior resistance against mechanical cold-flowing and wear under higher thermal cycles.

• Severe-Service Metal Seats: Hardfaced metallic options are integrated to withstand abrasive particulates, slurries, or extreme utility steam lines where soft polymers would degrade.

• Floating vs. Trunnion-Mounted Ball Internals: For lower-pressure networks, a floating ball design provides highly efficient, budget-friendly sealing. In larger pipe calibers (up to 24") or high-pressure environments, a trunnion-mounted ball design is utilized; mechanical bearings anchor the ball to absorb heavy hydraulic thrust, which keeps operational torque low and protects internal seals from fatigue.

Advanced Operation, System Automation, & Protection

• Modular Actuation Top Works: Outfitted with universal top-works mounting interfaces, our multiport series accommodates manual handles/levers for rapid quarter-turn control on smaller lines. Heavy-duty mechanical gearboxes are added to handle larger diameters, and the valves seamlessly integrate with pneumatic cylinders or electric actuators for remote SCADA automation.

• Environmental Enclosure Shields: To protect the external raw metallurgy from high-salinity coastal humidity, chemical splash zones, and outdoor weathering, valves receive advanced surface treatments, including high-durability epoxy and zinc protective coatings.

Frequently Asked Questions (FAQs)

Q: What is the main difference in flow paths between 3-way and 4-way multiport valves?

A: * 3-Way Valves: Typically feature an L-Port or T-Port ball design. An L-port diverts a fluid stream from a common inlet port to one of two alternative outlets. A T-port acts as a mixing or blending valve, combining two incoming fluid lines into a single discharge pipe, or allowing straight-through flow while maintaining a third auxiliary port.

• 4-Way Valves: Incorporate specialized internals (like an X-Port or double L-port layout). This configuration can manage four distinct pipeline paths simultaneously, making them ideal for fluid bypass loops, multi-stage filtration backwashing, or immediate process line reversals.

Q: Why is a Class VI leakage certification vital for chemical and petrochemical routing?

A: Leakage Class VI represents the highest standard of manufacturing shut-off integrity, requiring an absolute bubble-tight seal with zero measurable fluid weepage. In chemical and petrochemical processing plants handling hazardous, toxic, or highly volatile media, achieving a Class VI seal prevents internal cross-contamination between different process segments and ensures complete protection against fugitive atmospheric emissions.

Q: Can these multiport valves handle different types of media simultaneously?

A: Yes, especially in mixing or blending applications utilizing a T-port or 4-way configuration. The premium metallurgy (such as CF8M/Stainless Steel) and chemical-resistant PTFE/CFT seats allow the valve to safely handle and route multiple compatible mediaincluding water, oil, process gases, chemicals, and compressed airwithin a temperature envelope of -20C to 180C.

Q: Why choose FlowBiz as your long-term multiport ball valve partner in India?

A: FlowBiz Valves combines world-class manufacturing capacity (offering size ranges from 1/2" up to 24" inches) with strict global testing compliance to API 598 and ISO 5208. Our capability to supply customized metallurgy matrixes, engineer mixed end connections on a single block, and deliver automation-ready valve packages makes us a highly dependable supply chain partner for critical process infrastructure across India and worldwide.
