BS 1873 Cast Iron Globe Valves FlowBiz Bhavnagar

Welcome to FlowBiz Exports, a certified manufacturing authority for precise linear fluid throttling, thermal utility regulation, and high-consequence pipeline containment. Operating an advanced foundry and pressure-testing facility in Bhavnagar, Gujarat, we specialize in engineering high-performance Cast Iron Globe Valves designed to satisfy strict national and international quality standards.

Our high-integrity fluid control lines are engineered to manage industrial water treatment plants, municipal filtration systems, and heavy plant utilities. We seamlessly serve critical processing zones across Indiaincluding Bhavnagar, Ahmedabad, Vadodara, Vapi, Surat, Mumbai, and Punebacked by fast-tracked freight networks operating from regional logistics hubs for rapid global export.

Technical Specifications & Compliance Architecture

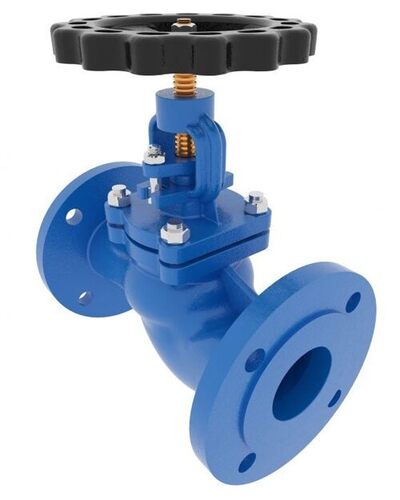

FlowBiz Cast Iron Globe Valves are engineered strictly in accordance with BS 1873, API 600, and ASME B16.34 design codes. Featuring a vertical plug disc that travels perpendicular to the seat ring path, these linear-motion valves provide highly granular, incremental flow control, precise adjustment to raise or lower flow, and exceptional volumetric sealing.

Core Engineering Features & Design Advantages

1. Robust Cast Iron Construction & Protective Coating

Cast from premium grade ASTM A126 Class B carbon iron, our globe valve bodies provide exceptional structural mass, wall thickness, and natural acoustic vibration damping. Instead of decorative electroplating, each valve is protected by a heavy-duty, high-build industrial blue epoxy coating that shields the outer metal housing from corrosive atmospheric salt air, chemical splashes, and humid plant settings.

2. Precise Linear Throttling Geometry

Unlike quarter-turn ball or butterfly valves which experience severe seat erosion when left partially open, FlowBiz globe valves are built natively for flow regulation and fluid modulation. The fine mechanical resolution of the rising stem allows plant operators to adjust line velocities incrementally, optimizing system performance and energy efficiency.

3. Outside Screw & Yoke (OS&Y) Bolted Bonnet

Our globe valves feature an OS&Y architecture that keeps the critical stem actuation threads entirely outside the pressurized body and bonnet housing. This shields the stem lubrication from direct exposure to fluid temperatures and line scaling, preventing thread corrosion and ensuring smooth, low-torque manual handwheel operation over decades of service.

4. Rigid, Leak-Resistant Flanged Connections

Outfitted with heavy-duty, precision-machined flanged ends matching ASME B16.1 standards, these valves integrate cleanly into medium-pressure industrial systems. The flanged profile provides excellent structural rigidity, ensures an absolute leak-proof joint when combined with a premium gasket, and simplifies routine inline installation or modular system upgrades.

Strategic Fluid & Process Applications

FlowBiz cast iron flanged globe valves are specified globally across heavy-duty processing networks:

• Water Treatment Plants: Controlling precise water flow through media filters, high-pressure intake pumps, chemical dosing lines, and purification equipment.

• Industrial Cooling Water Systems: Managing fresh water supply feeds to heat exchangers, chillers, and auxiliary cooling tower networks.

• Fuel Oil & Thermal Utilities: Reliable isolation and flow modulation for fuel oil transmission lines, burner supply loops, and low-pressure boiler feed circuits.

• Plant Gas & Utility Headers: Precise throttling of compressed air networks and non-reactive industrial gas grids.

Frequently Asked Questions (FAQ)

Q: Why are cast iron globe valves standardly restricted to sizes 2 inches and above for industrial pipelines?

A: Cast iron is an exceptional material for large-diameter utility lines because it provides excellent cost-effectiveness, mass, and vibration damping. However, small-bore lines (below 2 inches) are frequently exposed to high-frequency structural vibrations and bending moments. For micro-bore lines, cast iron becomes too brittle, which is why international design codes specify API 602 Forged Carbon Steel Valves for small-bore applications.

Q: Why are globe valves highly preferred over gate valves for fluid flow throttling and regulation?

A: When a gate valve is left partially open to throttle fluid, the high-velocity stream strikes the bottom of the exposed wedge, creating severe fluid turbulence and chattering vibration. This rapidly scores the sealing faces and destroys the valve's ability to achieve a tight shut-off. A Globe Valve is engineered so that its disc moves vertically and seals directly against a flat horizontal baffle. This geometry allows the fluid to pass through uniformly, minimizing localized erosion and allowing for highly precise, continuous flow regulation without structural damage.

Q: Why must a globe valve be installed in a specific flow direction?

A: Globe valves are strictly directional components. They feature an integrated embossed arrow on the body shell indicating the mandatory fluid path orientation. The valve is designed so that the incoming process fluid enters underneath the plug disc when closed. Installing it in reverse forces pipeline pressure to push down on top of the disc, putting immense stress on the stem threads and gland packing, which can lead to packing failures and difficult manual operation.

Q: When is it recommended to use a manual handwheel globe valve over an automated alternative?

A: Manual globe valves are the ideal choice for utility networks where flow settings are adjusted periodically or during routine system maintenance. This lowers the total installation cost by removing the need for expensive electric or pneumatic actuators, associated wiring, and compressed air lines. Furthermore, manual operation allows field technicians to open and close the valve slowly, which safely mitigates the risk of water hammer pressure shocks inside long pipeline runs.

Q: How can project procurement managers and traders coordinate bulk quotes from Bhavnagar?

A: Sourcing can be initiated by contacting our dedicated corporate sales office in Bhavnagar, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline nominal sizing (2" to 12"), pressure limits, and trim preferencesto deliver a certified product submittal sheet and an itemized commercial proposal with competitive factory-direct B2B pricing.

Are you designing a centralized water treatment loop or upgrading a large-bore cooling water circuit? Contact our Bhavnagar sales office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
