Industrial PTFE Lined Tubular Sight Glasses: Severe-Service Flow Monitoring and Specifications

In modern chemical processing, pharmaceutical manufacturing, and corrosive fluid transport, maintaining real-time visual inspection over pipelines is critical. However, standard bare-metal indicators fail rapidly when exposed to aggressive media like hot concentrated acids, caustic alkalis, and reactive solvents. This material degradation leads to dangerous atmospheric leaks, process contamination, and expensive plant down-time.

An industrial PTFE Lined Tubular Sight Glass solves this engineering challenge. By combining the structural, pressure-bearing strength of a robust metallic outer shell with the total chemical inertness of an internal fluoropolymer lining, all wetted surfaces are completely protected from chemical attack. This design provides safe, unobstructed, 360-degree inline visual monitoring for severe-service process lines.

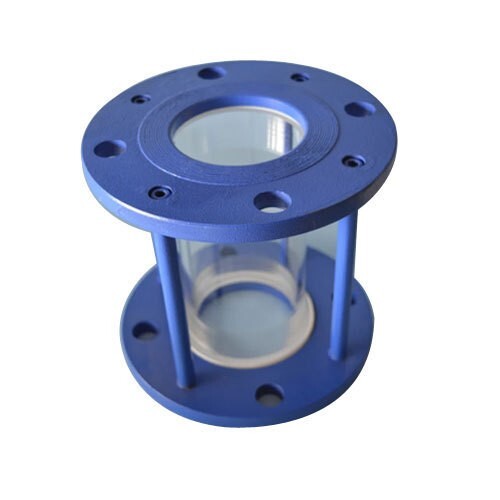

                    Dual Flanged Center-Guided Design


          [Flange End]  [ Borosilicate Tube ]  [Flange End]
          (PTFE Lined)       (360 Visual Zone)       (PTFE Lined)

FlowBiz Exports is an elite global fluid-handling brand and a leading PTFE Lined Tubular Sight Glass Manufacturer in Surat, Gujarat, India. We specialize in precision engineering high-visibility inline indicators equipped with robust pressure boundaries, making them ideal for high-purity and aggressive chemical process loops.

Technical Specifications & Code Compliance

FlowBiz lined tubular sight glasses are designed and manufactured in strict compliance with international pressure piping codes, ensuring a precise drop-in fit within global pipeline headers.

Core Engineering Parameters

Parameter Profile	Technical & Performance Specifications
Brand / Model	FlowBiz Exports / PTFE Lined Tubular Sight Glass
Dimensional Sizes	Available from 1/2" to 12" (15 NB to 300 NB)
Design Configuration	Fixed Flange End / Dual Flanged Connection
Manufacturing Standard	ASME B16.5, Class 150#
Flange Drilling Standards	Class 150# Raised Face (RF); also drilled to ANSI, DIN, or BS parameters
Wetted Lining Thickness	3.00 mm Minimum high-density polymer lining
Glass Tube Material	Heavy-Wall, High-Clarity Borosilicate Glass
Thermal Operating Envelope	Rated for continuous performance up to 180C
Est. Production Delivery	15 to 20 Days from technical sign-off

Structural Metallurgy & Lining Matrix

• Available Metal Body Materials: Mild Steel (MS), Carbon Steel (CS), Stainless Steel (SS), and Ductile Iron (DI).

• High-Performance Lining Options: PTFE, FEP, PFA, or PVDF polymers.

• External Shield Finish: High-build, corrosion-resistant industrial epoxy coating.

Hydrostatic & Dielectric Testing Regimes

Every single unit undergoes rigorous, non-destructive quality verification before leaving our Surat production facility:

• Lined Metal Body Pressure Rating: Hydrostatically tested up to 510 kg/cm.

• Unlined Metal Body Pressure Boundary: Rated up to 28 kg/cm.

• Fluoropolymer Dielectric Integrity: 15 KV D.C. Spark Tested to confirm zero porosity, micro-pinholes, or lining discontinuities.

Critical Engineering Features & Process Benefits

1. 100% Non-Reactive Wetted Flow Path

A minimum 3.00 mm thick layer of pure PTFE, FEP, or PFA fully encapsulates the interior wetted surfaces of the metal body. Because these polymers are completely inert to virtually all industrial chemicals, the underlying metal shell is safely isolated from corrosive degradation. This non-stick interior also prevents mineral scaling, crystallization, and media buildup, ensuring clear visibility over an extended operating lifespan.

2. High Thermal Resilience and Plant Safety

Visual monitoring under thermal loads up to 180C demands premium glass engineering. FlowBiz uses heavy-duty borosilicate glass cylinders that feature an exceptionally low coefficient of thermal expansion. This material resists shattering when subjected to sudden, extreme thermal shifts or sudden pressure variations, protecting field technicians from hazardous media exposure.

3. Dual-Orientation Versatility and Easy Maintenance

The indicator is structurally balanced to perform reliably in both horizontal and vertical pipeline layouts. Operating as a manual tracking unit, it features a zero-maintenance design with no moving parts or internal paddles that can bind. If a glass tube needs to be replaced due to physical external impact, the mechanical layout allows for quick component swap-outs without requiring technicians to completely dismantle the underlying metal piping.

Strategic Industrial Application Scope

• Chemical Processing Plants: Safely monitoring transfer headers carrying hot acids, alkalis, strong chemical reagents, and solvents.

• Pharmaceutical & Bio-Tech Infrastructure: Ensuring strict quality control and hands-free visual verification of high-purity process lines without risking product contamination.

• Agrochemical & Fertilizer Facilities: Managing volatile chemical lines, inputs, and blending indicators without risking atmospheric leakage.

• Water Treatment & Desalination Networks: Positioned on aggressive chemical dosing streams (such as sodium hypochlorite or acids) to audit fluid clarity.

Frequently Asked Questions (FAQ)

Q: Why is a high-voltage spark test (15 KV D.C.) required for a lined sight glass?

A: During the plastic lining fabrication process, microscopic air pockets, pinholes, or thin spots can form within the polymer sheet. While invisible to the naked eye, aggressive acids under pressure will eventually migrate through these tiny flaws and corrode the outer metal shell. Subjecting the lining to a 15 KV D.C. Spark Test creates an electrical arc if any continuity defect exists, ensuring that only 100% leak-proof, defect-free linings are shipped to the field.

Q: What factors dictate choosing a PTFE lining over an FEP or PFA lining for this sight glass?

A: The selection depends on your process temperature, fluid chemistry, and visibility needs:

• PTFE: The baseline standard for broad chemical resistance across general corrosive processing streams.

• FEP: Provides outstanding optical clarity and a smooth, non-stick surface, making it excellent for identifying subtle color shifts at moderate process temperatures.

• PFA: The premium selection for severe high-temperature operations up to 180C. PFA exhibits superior mechanical strength at elevated temperatures and provides maximum resistance to vacuum collapse or vapor permeation.

Q: What is the step-by-step process to order a customized tubular sight glass from your Surat facility?

A: Our Surat-based engineering team customizes assemblies to meet exact project footprints:

1. Parameter Submission: Sourcing teams provide their line dimensions (1/2" to 12"), chosen base metal (MS, CS, SS, or DI), polymer preference, and flange drilling code (ANSI, DIN, or BS).

2. Dimension Tailoring: You can specify customized glass tube lengths and made-to-order face-to-face dimensions to ensure a clean drop-in fit.

3. Fabrication & Fulfillment: The unit is custom-molded, epoxy-coated, pressure-tested, spark-verified, and shipped within our standard 15 to 20-day delivery window.

Q: How do PTFE gaskets and the dual-flange configuration ensure leak-tight operation?

A: The fixed flange ends are precision-machined to distribute mechanical compression evenly across the face of the pipeline joint. When bolted inline, the integrated PTFE gaskets compress uniformly against the raised face elements, absorbing pipeline vibrations and protecting the borosilicate cylinder from uneven mechanical stress. This secure seal guarantees a leak-proof boundary even under continuous processing pressures.
