High-Performance Industrial Check Valves | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of industrial unidirectional fluid-control systems. Operating through our major manufacturing infrastructurewith core production networks in Pune, Maharashtra, India, and technical supply footprints in Vapi, Gujarat, Indiawe precision-engineer a comprehensive range of non-return check valves. These safety-critical assets automatically prevent backflow, protecting upstream pumps, instruments, and rotating pipeline equipment from damaging hydraulic shocks.

Our manufacturing facility specializes in both Swing Check Valves and Lift Check Valves, utilizing premium metallurgies, advanced casting processes, and strict dimension profiles. This ensures long-term reliability and zero process fluid reverse-migration across demanding chemical, power generation, refining, and water treatment operations nationwide.

Technical Specifications & Compliance Matrix

Our non-return production series is precision-machined from traceable stock to satisfy strict international pipeline and pressure vessel criteria:

Mechanical Engineering Dynamics: Swing vs. Lift Patterns

To meet varying pipeline orientations, velocity profiles, and pressure drops, FlowBiz manufactures two distinct mechanical check valve patterns:

1. Heavy-Duty Swing Check Valve Pattern

The Swing Pattern utilizes a top-hinged disc that swings completely out of the fluid stream when forward pressure is applied. This design creates a straight-through, unobstructed flow path that minimizes fluid turbulence and pressure drop. When upstream pump pressure decreases or fluid begins to flow backward, gravity and reverse pressure swing the disc back onto the seat face, closing the valve instantly.

Pipeline Orientation: Highly versatile; suitable for installation in horizontal pipelines or vertical runs with upward fluid flow.

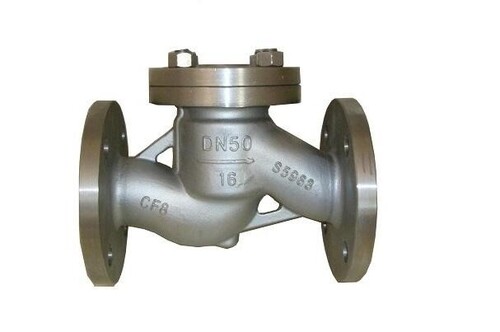

2. High-Precision Lift Check Valve Pattern

The Lift Check Valve Pattern operates similarly to a traditional globe valve body. Upstream fluid pressure enters beneath the disc, lifting it vertically off the seat along an internal guide path to permit forward flow. When the pump shuts down or backpressure builds up, the disc drops back down onto the seat via gravity and backflow forces, shutting off the line. This configuration provides a fast closing response and excellent sealing performance.

Pipeline Orientation: Specifically designed for installation in horizontal pipelines where high-pressure containment is required.


                   FlowBiz Non-Return Operational Logic


                [Forward Fluid Pressure Applied Under Disc]



           Disc automatically lifts or swings off the seat face
            Allows smooth, unobstructed forward process flow



                   [Pump Shuts Down / Fluid Reverses Direction]



           Backpressure forces the SS304 disc tight onto the seat
            Instantly stops reverse migration and backflow


Strategic Design & Core Operational Advantages

Specifying FlowBiz non-return check valves provides process networks with significant mechanical, operational, and safety advantages:

• Longer Service Life & Durability: Manufactured with an internal core of premium SS304 stainless steel discs. This high-grade material provides exceptional resistance to chemical corrosion, high-velocity liquid erosion, and mechanical wear, ensuring a long operational lifecycle in harsh industrial environments.

• Withstand Extreme Pressures & Heat: Built to operate safely under intense pressure profiles and high temperatures up to 200C. The robust wall thickness and heavy-duty casting prevent body distortion, tracking leaks, or structural cracking under sudden thermal spikes.

• Superior Rust Resistance: All external and internal surfaces receive an advanced anti-corrosive, rust-resistant treatment. This protective shield guards the valve against moisture, chemical vapors, and harsh outdoor environments, lowering maintenance overhead and minimizing downtime.

• Customizable Solutions: Standard valves do not always match the unique piping dimensions or specialized flow velocities of every facility. FlowBiz provides customized port sizes and trim configurations, collaborating with your engineering team to ensure seamless system integration and maximum workflow efficiency.

Crucial Process Safety & Asset Protection

In industrial fluid networks, unexpected power outages or pump failures can cause high-velocity fluid to flow backward through the pipeline. This reverse migration can spin pumps backward, cause water hammer, and crack expensive processing equipment.

FlowBiz check valves act as a fast-acting, self-actuated safety barrier. By automatically blocking backflow, these valves protect pumps, minimize system downtime, and maintain process pressure integrity. This essential safety function enhances workplace safety, protects your equipment investments, and lowers the total cost of ownership.

Frequently Asked Questions (FAQs)

Q: How do Lift Check Valves function automatically without external power or actuators?

A: FlowBiz check valves are completely self-automated, relying solely on the pressure and direction of the process media to operate. When a pump starts, the forward fluid pressure pushes against the bottom of the SS304 disc, lifting or swinging it open to allow flow. The moment the pump stops, the forward pressure drops, and gravity combined with the returning fluid forces the disc back down onto the seat, blocking reverse flow without requiring any manual intervention, electricity, or pneumatic control lines.

Q: When should an industrial plant consider specifying a customized port size over standard catalog models?

A: Customized port sizes are highly recommended when your system handles specific flow velocities or unique pipeline dimensions that do not align with standard international dimensions. An oversized valve can cause the internal disc to flutter, leading to premature seat wear, while an undersized valve restricts flow and creates high pressure drops. Customizing the port size ensures the valve operates at its peak efficiency, minimizes internal wear, and prevents leakage.

Q: In what industrial settings are FlowBiz non-return valves most commonly installed?

A: Our swing and lift check valves are essential safety components used across multiple sectors, including chemical plants, power stations, oil refineries, petrochemical complexes, nuclear facilities, and water processing units. They are typically installed directly on the discharge side of pumps, before flow meters, and inside blending headers to prevent reverse contamination and protect equipment from backpressure surges.

Q: Why partner with FlowBiz as your long-term check valve manufacturing partner?

A: Operating from Pune and Vapi, FlowBiz Valves balances precision severe-service engineering with strict compliance to global validation benchmarks like API 598. By providing traceable high-grade metallurgies (such as SS304 internal discs), a versatile selection of body configurations (Swing and Lift patterns) from 2" to 24" inches, a low minimum order quantity of 1 piece, and full customization capabilities, we eliminate operational risks in the field. Our focus on reducing facility downtime and ensuring long-lasting rust resistance makes us a trusted supply chain partner across India and global export markets.

• Will your valve be installed in a horizontal or vertical pipeline run, and what is the maximum operating pressure of your system?
