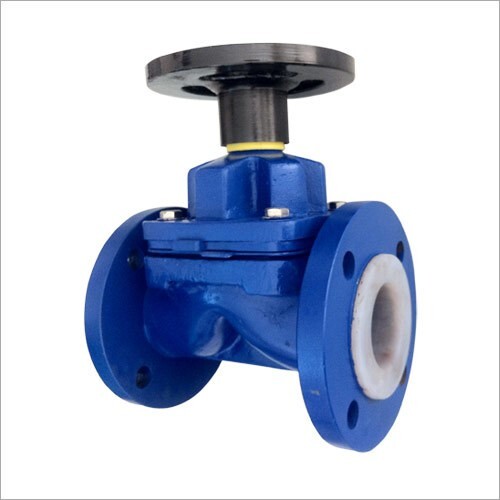

Industrial & Sanitary Diaphragm Valves Manufacturer FlowBiz Exports

Welcome to FlowBiz Exports, a premier manufacturing destination for advanced fluid isolation and zero-contamination throttling technology. Operating out of our precision engineering hubs, we are a leading manufacturer, supplier, and global exporter of high-integrity Diaphragm Valves.

Our comprehensive sales and logistics network seamlessly services major chemical and pharmaceutical corridors across Indiaincluding Surat, Ahmedabad, Vapi, Mumbai, Pune, and Chennaialongside dedicated freight shipping to global international markets.

Technical Specifications & Metallurgy Matrix

FlowBiz Diaphragm Valves utilize a flexible, elastomeric membrane linked to a compression compressor. When the valve is actuated, the diaphragm is driven downward against a matching internal body weir to form a completely tight, cavity-free seal. This unique design isolates the working parts of the valve (stem, spindle, and thread mechanism) entirely from the process fluid, preventing product contamination and stem packing leaks.

Dual Metallurgy Material Selection:

• Industrial Utility Configuration: High-strength Cast Carbon Steel (WCB) body housings for rugged manufacturing operations, water treatment, chemical transfer, and abrasive slurries.

• Sanitary Life-Sciences Configuration: Premium Forge/Cast Stainless Steel (316L / CF3M) body housings for ultra-pure, sterile, and hygienic processing.

• Resilient Diaphragm Membranes: Available in pure Virgin PTFE, TFM, EPDM, Viton, or Natural Rubber backing to match your chemical media profile.

Key Performance Features & Material Benefits

1. 100% Cavity-Free Hermetic Sealing

Unlike standard ball or gate valves, which feature internal blind pockets where stagnant liquids can settle, crystallize, or harbor bacterial bio-films, our diaphragm valves feature a smooth, aerodynamic internal flow path. This cavity-free architecture makes them the global industry standard for preserving absolute purity.

2. Rugged Carbon Steel & Protective Blue Coating

For aggressive chemical mining and heavy industrial water loops, our carbon steel valve line delivers immense structural tensile strength. The external surfaces are sandblasted and finished with a robust, baked-on blue epoxy coating, which acts as a durable shield against corrosive industrial atmospheres, chemical splashes, and ambient moisture.

3. Smooth Handling of Slurries and Viscous Fluids

Because the internal flexible diaphragm completely seals off the operating mechanism from the fluid stream, gritty solids, suspended fibers, or highly viscous glues cannot jam, corrode, or clog the working stem threads. This unique capability provides a smooth, "non-stick" throttling interface that minimizes routine plant maintenance down-time.

Targeted Cross-Industry Infrastructure

• Pharmaceutical & Biotech Facilities: High-purity sterile water-for-injection (WFI) networks, biological media loops, and fermentation lines (utilizing stainless steel bodies).

• Chemical Processing Plants: Transporting aggressive acids, solvents, corrosive alkalis, and reactive chemical polymers.

• Industrial Water Treatment: Demineralization loops, water treatment facilities, desalination plants, and effluent handling lines.

• Food & Beverage Processing: Managing thick fluid concentrates, dairy utilities, and batch processing systems.

Frequently Asked Questions (FAQ)

Q: Why is a diaphragm valve preferred over other valve designs for handling slurries?

A: In a standard gate or globe valve, abrasive particles suspended in a slurry can rapidly settle inside the bottom seat pocket, preventing the valve from closing properly and scoring the metal sealing faces. Diaphragm valves close via a flexible, thick elastomer pushing flat against a central weir. Any trapped solid particles are simply embedded softly into the moving diaphragm without causing damage, ensuring a bubble-tight seal every time.

Q: What is the mechanical difference between a Weir-Type and a Straight-Through Diaphragm Valve?

A: A Weir-type design features a raised internal dam or ridge in the middle of the flow path, meaning the valve requires a much shorter stroke to achieve full open or closed states, which dramatically extends the operational lifespan of the rubber membrane. A straight-through design features a flat bottom contour, which maximizes flow volume and is preferred for highly viscous muds or heavy mining debris that could accumulate behind a weir.

Q: When must a stainless steel body be specified over a carbon steel body?

A: For general chemical processing, heavy manufacturing utilities, and industrial water lines, Carbon Steel coated in blue industrial primer provides excellent physical durability and pressure resistance. However, if your application involves high-temperature steam sterilization (SIP), pure pharmaceutical batching, or aggressive chemical cleaning protocols, a Stainless Steel (316L/CF3M) body is required to prevent contamination and resist chemical corrosion.

Q: How do you install a flanged diaphragm valve into an industrial pipeline?

A: Our standard industrial valves are configured with heavy-duty circular flanges matching ASME B16.5 specifications. Installation involves aligning the valve body coaxially with the adjacent pipe flanges, inserting an appropriate fluid-compatible gasket, and systematically tightening the high-tensile fasteners in a cross-diagonal star pattern to ensure uniform radial loading across the sealing face.

Q: How can global procurement managers and local traders secure direct quotes from Surat?

A: Sourcing can be initiated by contacting our dedicated corporate sales desk in Surat, India. Our application engineers provide expert technical consultations, including correct valve sizing, pressure drop analysis, and elastomer membrane mapping (PTFE vs. EPDM) to ensure perfect compatibility with your specific plant chemical dynamics, backed by competitive factory-direct B2B pricing.

Are you optimizing a high-purity pharmaceutical process line or upgrading a severe chemical slurry network? Contact our Surat sales office today to receive complete technical datasheets, certified dimensional drawings, and a personalized commercial proposal.
