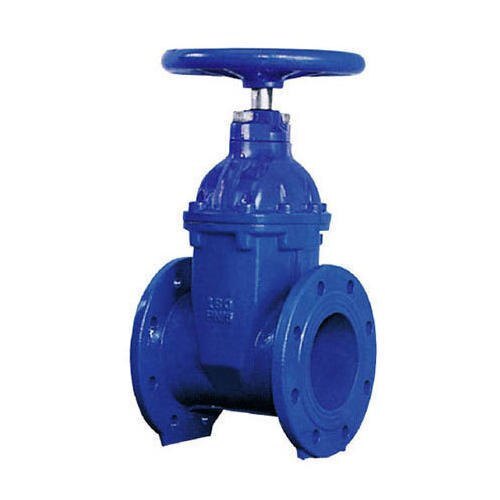

Resilient Gate Valve

Price 5000 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

Resilient Gate Valve Specification

Size
2 inch to 24 inch

Connection
Flanged

Sealing
EPDM Rubber

Structure
Gate

Material
Ductile Iron

Type
Resilient Gate Valve

Power Source
Manual

Pressure
PN10/PN16

Media
Water, Oil, Gas

Working Temperature
-10C to 80C

Port Size
DN50 - DN600

Surface
Epoxy Powder Coated

Shape
Round

About Resilient Gate Valve

FlowBiz Exports Pvt Ltd Valves is a High Quality Resilient Gate Valves Manufacturer in Mumbai, Maharashtra, India. We are a leading manufacturer of Resilient Gate Valves in Mumbai and nearby areas.

A Resilient Gate Valves, also known as a sluice valve, is a Valves which opens by lifting a round or rectangular gate/wedge out of the path of the fluid. Resilient Gate Valves are mainly designed to start or stop flow, and when minimum flow restriction are needed. In working, these Valves generally are either fully opened or fully closed.

Resilient Gate Valves are widely used for all types of applications and are suitable for both above ground and underground installation. not least for underground installations it is paramount to choose the right type of Valves to avoid high replacement costs.

Features:

Brass wedge nut provides fixation of the stem and low torques. Full coating on the body and disc internally & externally with an average of 250 microns. Higher coating thicknesses are available when required. Suitable to use with above-underground applications.

Product Details:

End Connection - TypeFlanged

Material - DI

Brand - FlowBiz

Size - 50mm

Color - BLUE

Temperature Of Media - Medium Temperature

Minimum Order Quantity - 1 Piece

Advanced Coating for Superior Durability

This gate valve comes with a robust Fusion Bonded Epoxy (FBE) coating, at least 250 microns thick, providing dependable resistance to corrosion and environmental impacts. The coating enhances the valves longevity and reliability, especially in potable water and sewage systems.

Precision Engineering for Reliable Performance

Manufactured to EN558-1 Series 3 and EN1092-2 standards, the valve delivers precise face-to-face dimensions and secure flange connectivity. Its fully encapsulated EPDM rubber wedge ensures a tenacious seal, minimizing leakage risk and enhancing system safety.

Versatile Applications Across Industries

Well-suited for potable water supply, irrigation, firefighting systems, wastewater, oil, and gas, this resilient gate valve combines structural strength with practical adaptability. The round shape, epoxy-coated surface, and flanged connection make installation and maintenance straightforward.

FAQs of Resilient Gate Valve:

Q: How is the Resilient Gate Valve protected against corrosion?

A: The valve is coated with Fusion Bonded Epoxy (FBE) at a minimum thickness of 250 microns, providing exceptional corrosion resistance and durability. This ensures optimal performance even in harsh and corrosive environments.

Q: What industries and applications can use this gate valve?

A: This valve is designed for diverse applications, including potable water systems, irrigation, firefighting networks, sewage handling, as well as oil and gas transport, making it highly versatile.

Q: When should a fully encapsulated rubber wedge be chosen?

A: A fully encapsulated rubber wedge provides a superior seal and lasts longer in contact with water, oil, and sewage. It should be selected when tight shut-off and minimized leakage are essential, such as in potable water and sewage systems.

Q: Where can this valve be installed?

A: With its broad size range (DN50DN600, 2"24"), flanged ends per EN1092-2, and robust construction, the valve can be installed in municipal, industrial, agricultural, and firefighting pipelines throughout India and globally.

Q: What is the process for testing these valves before delivery?

A: Each valve undergoes rigorous testing: the body is tested at 1.5 times the nominal pressure (PN), and the seat is tested at 1.1 times PN. These tests guarantee structural integrity and sealing performance.

Q: How should the valve be operated and maintained?

A: Operation is straightforward via a manual handwheel or an optional gearbox for larger sizes. Regular inspection for debris and periodic cycling of the valve help maintain performance and extend service life.

Q: What are the benefits of choosing this epoxy powder coated, ductile iron gate valve?

A: Key benefits include exceptional corrosion protection, reliable shut-off thanks to the encapsulated wedge, adaptability to multiple media types, and compliance with international standardsall ensuring low maintenance and long service life.
