Industrial PTFE-Lined Y-Type Strainers Corrosive Filtration Technology

Welcome to the premier engineering authority for compact chemical filtration, aggressive stream debris containment, and critical downstream instrument defense. Operating high-precision polymer extrusion lines, advanced metal fabrication yards, and certified hydro-pneumatic pressure validation blocks, FlowBiz Export Pvt Ltd specializes in manufacturing PTFE Lined Y Type Strainers, a specialized filtration component used in industrial applications.

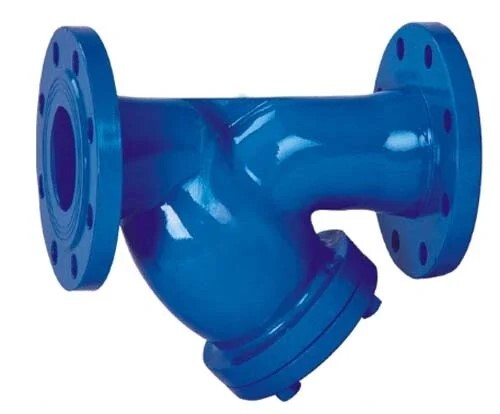

The PTFE Lined Y Type Strainer manufactured by FlowBiz Export Pvt Ltd features a Y-shaped body that removes particulate matter from liquid or gas streams. By combining the structural resilience of a heavy-duty metallic outer frame with the absolute chemical inertness of a Polytetrafluoroethylene (PTFE) interior lining, these space-saving filterstreated with a uniform industrial Blue Finishdeliver exceptional equipment protection across global processing grids.

Technical Specifications & Compliance Parameters

Every production lot undergoes 100% rigorous hydro-pneumatic shell testing and non-destructive high-voltage electrostatic spark testing to verify total liner continuity and bubble-tight sealing boundaries.

Kinematics & Slant-Chamber Fluoropolymer Shielding

The structural layout of a lined Y-strainer integrates compact mechanical routing with complete protection against corrosive fluid erosion:

• 45-Degree Angled Interception: FlowBiz Export Pvt Ltd Y Type Strainer design facilitates effective filtration by directing the flow through a perforated strainer screen or filter element positioned at a 45-degree angle. This orientation provides an optimized open area ratio relative to the pipe bore, capturing debris, solids, and foreign particles from the fluid stream while minimizing restrictions.

• Seamless Virgin PTFE Barrier: The entire internal wetted surface of the mild steel body casting is completely lined with high-grade PTFE. This lining is molded seamlessly through the 45-degree branch and hot-flared over the raised faces of the connection flanges. This serves as an integrated flange gasket that isolates the outer carbon steel frame from chemical attack.

• Non-Stick Flow Optimization: Because PTFE possesses excellent non-stick properties, the internal wetted surfaces resist chemical scaling, product adhesion, and biofilm crystallization. This smooth interface reduces internal fluid friction, optimizes flow dynamics, and prevents particulate cake buildup on the housing walls.

 [ INLINE FLOW PATHWAY ] INLET \/ OUTLET =================> [ 45-DEGREE FILTER ELEMENT ] ==============> Aggressive Media \ / Pure Filtered Flow With Contaminants \ PTFE / SS316 Mesh / (Downstream Protected) \ / +-----------------+ | Blind Liner Cap | +----------------+ [ BLANGE BOLTED COVER ]

Core Engineering Features & Plant Benefits

• Chemical Resistance: The virgin PTFE barrier is completely inert to aggressive processing mediums, including highly concentrated acids (nitric, sulfuric, and hydrochloric), strong alkalines, aggressive solvents, and volatile petrochemical fluids.

• Robust Construction: Meticulously engineered from durable mild steel, the valve combines structural mechanical strength with chemical resistance, allowing it to withstand high piping weights, system thermal expansions, and line vibrations.

• Critical Asset Protection: By catching pipe scale, thread burrs, and construction debris early, it keeps particles from entering and damaging sensitive downstream equipment such as pumps, valves, meters, and instruments.

• Easy Identification and Compliance: The bold, uniform industrial blue finish provides an extra layer of external corrosion resistance against plant-floor vapors while ensuring quick visual identification in complex utility rooms.

Strategic Industrial Application Sectors

Our premium quality lined filters are engineered for a range of standard-sized pipelines where reliability, chemical safety, and durability are crucial performance metrics:

• Chemical & Processing Plants: Filtering raw chemical feedstocks, highly corrosive acid lines, and aggressive organic formulations.

• Pharmaceutical & Bio-Tech Infrastructure: Managing active pharmaceutical ingredient (API) synthesis loops, solvent extraction lines, and purification grids where batch cross-contamination must be avoided.

• Petrochemical & Refining Grids: Regulating utility lines, acidic catalyst loops, chlorine dosing systems, and waste recycling lines.

• Industrial Wastewater Treatment: Protecting high-pressure dosing pumps and instrumentation lines within aggressive chemical dosing grids and neutralization units.

Frequently Asked Questions (FAQ)

Q: How is the PTFE Lined Y Type Strainer manufactured in Mumbai?

A: Our strainers are fabricated at our state-of-the-art Mumbai facility by forming a high-grade mild steel outer housing to exact international standard dimensions. Next, a premium virgin PTFE liner is hot-molded internally and mechanically locked into the casing, flaring it completely over the flange faces. The assembly is then integrated with a precision-fit SS304/SS316 filter screen, followed by strict quality checks and hydrostatic validation before dispatch.

Q: What are the main benefits of using a PTFE Lined Y Type Strainer in industrial applications?

A: These strainers provide highly efficient particulate removal, minimize plant maintenance downtime, and save downstream pumps and instruments from premature mechanical wear. The integrated PTFE lining delivers exceptional resistance to corrosion, preventing metallic contamination of your process fluid and significantly extending the service life of your pipeline components.

Q: When should a PTFE Lined Y Type Strainer be used in pipeline systems?

A: A PTFE-lined Y-strainer should be specified whenever you need to filter out solid debris from liquid or gas streams within highly corrosive, acidic, or chemically aggressive environments. It is the ideal choice for configurations where unlined metallic alloys would quickly corrode, erode, or contaminate high-purity process fluids.

Q: Where can I source FlowBiz PTFE Lined Y Type Strainers in India?

A: Our primary manufacturing, engineering validation, and corporate headquarters are based in Mumbai, Maharashtra. Backed by a comprehensive global logistics grid, we supply these premium-grade lined Y-strainers to industrial sectors all across India and manage direct worldwide maritime export shipping to international processing hubs.

Q: What is the recommended process for installing a PTFE Lined Y Type Strainer?

A: Installation involves placing the strainer assembly inline between companion pipeline flanges that match its standard ANSI/ASME dimensions, ensuring that the casting's embossed flow arrow aligns perfectly with the process fluid stream. The 45-degree filtration branch must point downward so gravity can draw trapped debris into the screen chamber. All flange stud bolts must be torqued evenly in a cross-pattern sequence to prevent localized pinching or damage to the flared PTFE faces.

Q: How exactly does the PTFE lining enhance the strainer's durability?

A: The molded PTFE lining acts as a continuous, impenetrable protective shield over the internal metal casing. By isolating the structural mild steel frame from direct contact with aggressive media, it eliminates localized pitting, galvanic oxidation, and chemical erosion. This preserves the structural integrity of the filter housing and ensures reliable operation.

Are you updating a highly corrosive chemical handling line that requires an ASME Class 150 flanged PTFE lined Y-strainer, or reinforcing a pharmaceutical utility line to safeguard a critical downstream flow meter? Contact our sales and engineering team in Mumbai today to secure a factory-direct quote on our High-Performance PTFE-Lined Y-Type Strainers, or ask a single relevant question regarding your specific chemical concentration parameters or mesh perforation requirements below to guide the conversation forward.
