High-Performance Fluoropolymer Flow Control: FlowBiz Industrial PTFE Lined Valves Kalol

Welcome to FlowBiz Export Private Limited, Indias premier manufacturing and engineering authority for high-integrity chemical isolation, zero-leakage corrosive fluid management, and premium lined pipeline infrastructure. Operating automated casting foundries, high-precision machining bays, and certified electrostatic testing lines in Kalol and Ahmedabad, Gujarat, we stand as a distinguished manufacturer, supplier, and global B2B exporter of industrial PTFE Lined Valves.

Our high-performance blue PTFE lined valves offer outstanding performance in industrial settings, thanks to their precision control structure and durable MS build. Engineered specifically to tackle the challenges of aggressive chemicals, corrosive fluids, and high-purity processes, these assets provide an inert, non-reactive barrier inside the valve that entirely isolates the wetted path from the metallic pressure shell. From our manufacturing and technology complex in Kalol, we seamlessly support critical processing networks across India's key industrial hubsincluding Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked logistics for direct international project export.

Technical Specifications & Compliance Parameters

Every valve configuration is precisely lined with premium PTFE through an advanced molding process to ensure uniform coverage and maximum chemical resistance, preventing lining collapse under full vacuum conditions.

Engineering Parameter	Certified Product Specifications & Compliance Codes
Design Standards	Fully compliant with ASME B16.34, BS EN ISO 17292, and API 609
Testing Standards	100% Spark-Tested (25kv) & hydrostatically verified to API 598
Sealing Security	Certified ASME B16.104 Leakage Class VI (Bubble-Tight Shut-Off)
Lining Material	Premium Virgin PTFE (Polytetrafluoroethylene) / PFA Encapsulation
Body Construction	Heavy-Wall, High-Durability Mild Steel (MS / ASTM A216 WCB)
End Connection	Precision-Machined Flanged Ends (ASME B16.5 / DIN Face-to-Face)
External Finish	Signature Consistent Blue Color Finishing Anti-Corrosive Coating

The Fluoropolymer Valve Architecture Matrix

1. PTFE Lined Ball Valves

FlowBiz Exports brand PTFE-lined ball Valves are a full-port, two-piece split body design with bolted body construction with an integral ball and stem unit. This quarter-turn rotational motion valve controls flow using a ball-shaped disk. When the valve is opened, the holes in the ball remain in line with the body inlet, allowing contents to flow. Primarily used for air, gases, and liquids, they are quick to turn on and off and have a solid low-torque seal.

Engineering Note: The only downside to these valves is the need for throttling properties available; they must be operated strictly in the fully open or fully closed positions to protect the internal seats from high-velocity erosion. Additional features include DIN face-to-face dimensions, a replaceable PTFE seat, a bubble-tight shut-off matrix, a glandless design, and maintenance-free operation with full-flow efficiency.

2. PTFE Lined Butterfly Valves

The PTFE-lined butterfly valve is a quarter-turn rotational motion valve that stops, starts, and regulates flow. The valve comes with a gearbox, where the handwheel is connected to the stem by gear and is easy and fast to open. It simplifies valve operation but at the cost of velocity.

The PTFE-lined butterfly valve is available in large sizes, is lightweight and easy to use, and can withstand low-pressure drop and high-pressure recovery, making it an excellent choices for bulk chemical handling headers.

Installation Rule: Such valves must also be installed at least six pipe diameters (6D) away from other line elements (like elbows or pumps) to prevent turbulent fluid flow from warping the disc.

3. PTFE Lined Gate Valves

PTFE-lined gate Valves are designed primarily to initiate or stop a flow when a straight-line fluid flow and minimum flow restriction are required. Those valves are often kept fully open or fully closed in operation. When turned open, the disc of the gate is completely removed, allowing contents to pass without creating line pressure drops. While this gives the valve strong shut-off properties and bidirectional sealing security, it cannot be opened or closed quickly and is prone to fluid vibration when kept partially opened.

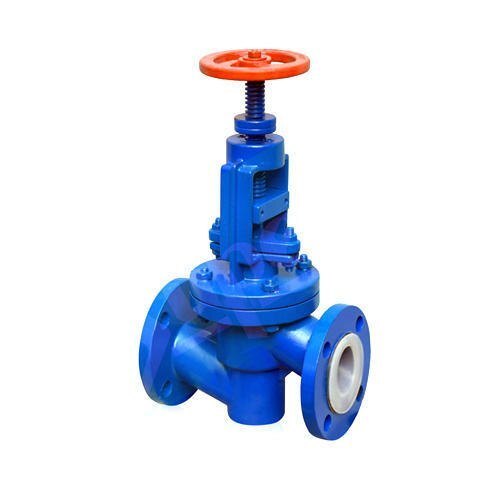

4. PTFE Lined Globe Valves

A globe valve is a linear motion valve that stops, starts, and regulates flow with extreme precision. Featuring a seat oriented parallel to the line of flow, it is usually used for cooling water systems and transporting fuel oil and turbine lube oil systems where tight, incremental flow throttling is a core operational requirement.

Core Advantages for Critical Fluid Handling

• Superior Chemical Defense: The high-purity PTFE lining acts as an absolute protective shield against highly reactive media, concentrated acids, caustics, and aggressive process solvents.

• Structural Mechanical Strength: Fabricated from heavy-wall Mild Steel (MS), the robust outer pressure casing absorbs pipeline piping stresses, thermal shifts, and high system pressures with ease.

• Minimized Maintenance Downtime: The non-stick surface finish of the internal fluoropolymer liner prevents aggressive fluids or biological slurries from scaling or building up inside the wetted path.

• Optimized Operational Lifespan: By entirely reducing the risk of internal corrosion and structural erosion, our control valves provide dependable industrial performance and an extended service life compared to standard unlined valves.

Frequently Asked Questions (FAQ)

Q: How are PTFE lined valves manufactured by your company in Kalol?

A: Our PTFE lined valves are produced in Kalol using high-grade Mild Steel (MS) for structural durability. Each valve body is precisely cast and machined, after which premium virgin PTFE is melt-molded directly into the internal cavities. This advanced coating process ensures uniform lining thickness and locks the fluoropolymer mechanically into anchor grooves to provide maximum chemical resistance and eliminate liner separation.

Q: When should PTFE lined control valves be used instead of standard stainless steel valves?

A: PTFE lined valves are highly recommended when handling aggressive chemicals, corrosive fluids, or high-purity processes (such as concentrated Hydrochloric or Sulfuric acids). They are especially suitable when standard stainless steel or alloy valves might degrade, pit, or corrode rapidly, ensuring long life, cost-efficiency, and absolute reliability under hazardous conditions.

Q: Where can these PTFE lined valves be safely installed within an industrial setup?

A: These valves are designed for installation in a variety of industrial environments, such as chemical processing plants, pharmaceutical batch complexes, water treatment facilities, and any place needing reliable fluid control with enhanced chemical resistance. Their standard sizing and DIN/ASME flange metrics ensure clean compatibility for both new installations and retrofitting existing pipelines.

Q: What is the process for exporting your PTFE lined valves from India?

A: As a reliable exporter, supplier, and trader, we follow all regulatory and international shipping standards. Our team ensures rigorous quality inspections, secure sea-worthy industrial packaging, prompt logistics coordination, and full compliance with customs documentation requirements to deliver quality valves safely to clients globally.

Are you optimizing an aggressive acid distribution manifold or installing a zero-leakage loop for an ultra-pure pharmaceutical line? Contact our Kalol sales and engineering office today to secure a factory-direct quote on our PTFE Lined Valves, or ask a single relevant question regarding your specific process chemistry parameters below to continue the conversation.
