FlowBiz Non-Lubricated Sleeved Plug Valves: High-Performance Cavity-Free Isolation

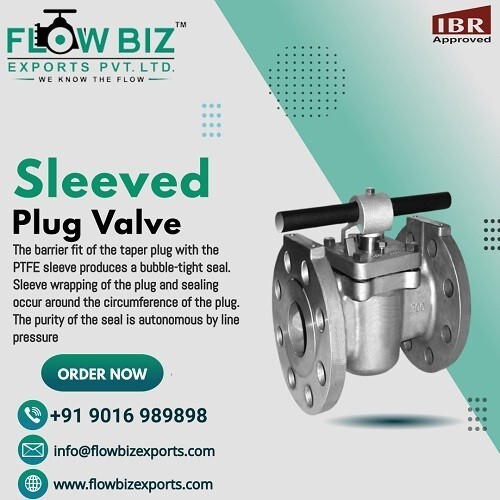

A sleeved plug valve is a specialized type of non-lubricated quarter-turn plug valve that incorporates a solid, stationary fluoropolymer sleeve (typically PTFE) encapsulated directly inside the valve body housing. This sleeve completely surrounds a tapered cylindrical plug.

In standard lubricated plug valves, mechanical grease must be injected regularly into the valve to prevent the metal plug from seizing against the metal body. A sleeved plug valve completely eliminates the need for manual lubrication. The high-lubricity PTFE sleeve acts as a continuous, self-lubricating structural friction barrier. As the plug rotates 90, it glides smoothly against the non-stick sleeve surface, providing rapid, low-torque operation while creating a continuous, bubble-tight seal along the entire perimeter of the fluid port.

Technical Specifications & Parameters

FlowBiz sleeved plug valves are engineered to meet strict international standards, providing clean, zero-leakage fluid isolation under medium-pressure conditions.

Parameter	Technical Specification Blueprint	Industrial Performance Advantage
Valve Profile	Quarter-Turn 90 Angle) Non-Lubricated Plug	Fast, straightforward isolation; eliminates downstream product contamination.
Body Construction	Heavy-Wall Premium Cast Iron	Excellent structural base strength and mechanical vibration absorption.
Sleeve Material	Premium High-Density PTFE / Teflon	Self-lubricating, chemically inert, and highly wear-resistant.
Surface Protection	Anti-Corrosive Industrial Silver Coating	Protects the exterior raw iron body from high humidity and surface rust.
Connection Configuration	Standard Multi-Bolt Flanged Profile	Distributes physical pipeline loads evenly and prevents joint leaks.
Actuation Adaptability	Manual Hand Lever / Actuator-Ready Yoke	Easily interfaces with automated pneumatic or electric actuators.
Fluid Handling Media	Water, Sludge, Chemical Slurries, and Acids	Excellent performance across both clean fluids and thick media streams.

Advanced Lift-Assisted Design Dynamics

A primary engineering challenge with standard quarter-turn valves is seat friction. Continuous metal-on-seat friction during cycling can cause premature wear and reduce the service life of internal components. FlowBiz addresses this directly through advanced internal geometry:

During the initial phase of the opening sequence, the internal stem mechanism is designed so that the plug moves up slightly within the tapered sleeve before rotating. This subtle vertical lift creates immediate, microscopic clearance between the sealing faces of the plug and the seat ring.

By eliminating sliding friction during the turning cycle, this lift-assisted movement achieves three critical process advantages:

• Drastically Minimizes Component Wear: Prevents surface scoring, extending the valve's field service life up to three times over conventional designs.

• Lowers Operational Torque: Allows facility engineers to specify smaller, more economical automated pneumatic or electric actuators.

• Prevents Plug Sticking: Eliminates the risk of the valve seizing or binding after sitting in a closed safety loop for extended periods.

Critical Application Sectors & Versatility

Because the PTFE sleeve completely fills the internal cavities of the valve body, there are no internal dead zones or pockets where stagnant fluid can accumulate or crystallize. This cavity-free design makes the FlowBiz sleeved plug valve an invaluable asset across a wide array of demanding industries:

• Mining, Sludge, and Slurry Controls: Efficiently regulates and cuts through thick mining sludge, abrasive mineral tailing lines, and highly concentrated slurries.

• Chemical and Fertilizer Manufacturing: Provides exceptional chemical resistance against aggressive acids, polymers, ammonia, and chemical processing blends.

• Municipal and Wastewater Treatment: Handles raw influent water, primary grit chambers, backwash grids, and sludge digestion loops.

• Oil, Gas, and Utility Networks: Safely isolates unrefined hydrocarbons, water-dosing loops, and industrial gas lines.

• Food and Beverage Processing: Prevents media stagnation and biological buildup, maintaining line cleanliness between batch runs.

Key Performance & Structural Advantages

1. Cavity-Free, Zero-Contamination Fluid Path

Unlike standard ball valves, which feature internal body pockets that trap media when the valve cycles, a sleeved plug valve features a solid, continuous envelope. Fluid cannot become trapped, stagnate, or ferment inside the valve body, protecting the purity of your batches and preventing internal corrosion.

2. High-Grade Cast Iron Strength with Silver Protection

Our cast iron bodies provide a rigid mechanical base that resists pipeline piping misalignment and structural sagging. To ensure maximum durability in damp pump houses or coastal processing facilities, each valve is protected by a specialized silver coating that shields the underlying metal from rust and atmospheric pitting.

3. Leak-Proof Flanged Connection Profile

The integrated flanged connection relies on a standard multi-bolt pattern to clamp the valve securely to matching pipeline spools. This structural design distributes pipeline bending stresses evenly, prevents joint deflection, and simplifies facility maintenance by allowing technicians to unbolt and service the valve cleanly without altering the surrounding pipe framework.

Reliable Global Manufacturer and Exporter from India

Operating as an integrated exporter, manufacturer, supplier, and trader, FlowBiz Exports Pvt. Ltd. delivers certified fluid control solutions worldwide. Every production lot undergoes rigorous quality checks, including mandatory hydrostatic shell testing to confirm material density and dual-direction pneumatic seat-leakage diagnostic testing to guarantee absolute zero-leakage performance. We manage all international shipping protocols, material traceability logging, and secure maritime export documentation directly from our production facilities in India, ensuring hassle-free delivery to your site.

Frequently Asked Questions (FAQs)

Q: Why is a sleeved plug valve preferred over a standard ball valve for handling crystalline chemicals or sticky wastewater?

A: When a standard ball valve opens or closes, its internal cavities fill with process fluid. If that fluid contains dissolved sugars, polymers, or crystalline minerals, the media dries out inside the body cavity, forming hard crystals that jam the valve and scratch the soft seats. A sleeved plug valve features a cavity-free design; the PTFE sleeve fills the entire body cavity. No media can enter or settle inside the valve housing, and the plug continuously wipes the sleeve clean during rotation, preventing clogs.

Q: What is the recommended step-by-step installation process for a flanged sleeved plug valve?

A: 1. Thoroughly clean the faces of both the valve flanges and the pipeline flanges to remove rust, scale, or grease.

2. Align the adjacent pipeline piping to ensure it sits parallel with the valve face, preventing alignment stresses.

3. Insert a compatible industrial gasket between the sealing faces.

4. Pass high-tensile fasteners through the bolt holes and tighten the nuts progressively in an alternating star-pattern sequence using a calibrated torque wrench to ensure uniform gasket compression and a leak-proof mechanical joint.

5. Manually cycle the lever before introducing process flow to verify smooth, unhindered operation.

Q: Can a manual sleeved plug valve be automated with an actuator at a later date?

A: Yes. The top-bonnet and yoke dimensions are engineered to accept standard international mounting configurations. If your facility processes upgrade from manual hand-lever operation to automated control grids, you can easily remove the handle and mount a pneumatic double-acting actuator or a digital electric motor to the valve stem without disconnecting the valve body from the pipeline.

Q: When should a project engineer choose a manual plug valve instead of an automated option?

A: Manual lever-operated plug valves are highly recommended for isolation points that are cycled primarily during planned maintenance turnarounds, safety checks, or system modifications. Choosing manual operation eliminates the cost, complexity, and maintenance requirements associated with pneumatic cylinders, positioners, and electrical wiring, making it a highly reliable and cost-effective solution for stable utility piping systems.

Q: How can international procurement teams request custom sizing or place bulk export orders?

A: You can contact our technical sales desk directly to discuss your project's specific bills of materials. Whether you require standard industrial sizes from inch up to 12 inches, specialized sleeve materials for extreme chemical matrices, or specific flange ratings, our engineering team will compile a transparent price quotation and coordinate production to align with your facility's installation schedule.
