FlowBiz Premium Sleeved Plug Valves: Advanced Cavity-Free Process Isolation

Managing volatile media, industrial water systems, and corrosive fluids requires an inline isolation asset that prevents internal scaling and eliminates product degradation. FlowBiz Exports Pvt. Ltd. fulfills this engineering necessity with our high-performance Sleeved Plug Valves (Non-Lubricated Plug Valves).

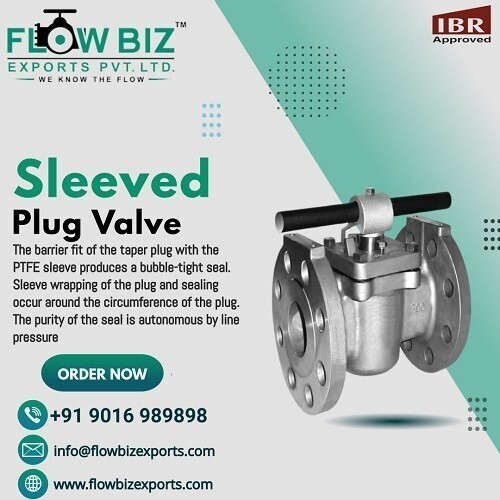

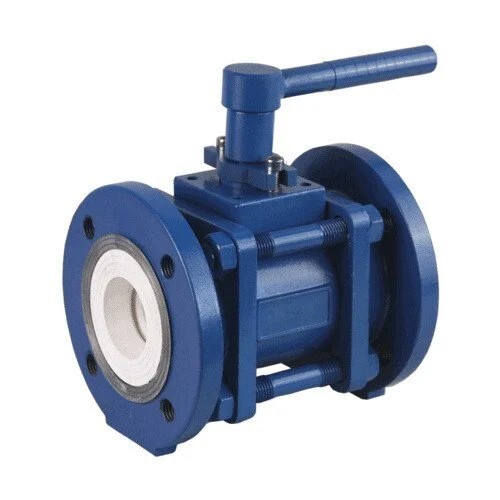

A sleeved plug valve controls flow via a tapered metallic plug that rotates inside a stationary, high-density fluoropolymer sleeve (typically PTFE). Turning the manual lever exactly 90 aligns the plug's internal bored passage with the pipeline for instant, straight-through flow. Rotating it a quarter-turn back presses the solid face of the plug against the sleeve, creating a bubble-tight seal. Because the plug is fully enclosed by the sleeve, this architecture provides a cavity-free design. It eliminates internal dead zones where process fluids can pool, settle, or solidify, ensuring smooth operation over a long service life.

Technical Specifications & Manufacturing Baseline

FlowBiz sleeved plug valves are engineered, machined, and validated from premium carbon steel to conform to strict international industrial safety and containment benchmarks.

Key Performance & Structural Advantages

1. True Cavity-Free Design

Unlike standard ball valves that feature hollow internal pockets surrounding the ball, a sleeved plug valve features no internal body cavities. The PTFE sleeve completely fills the space between the valve body and the plug. This design prevents sediment, grit, or process chemicals from trapping inside the valve body, eliminating scale buildup, jamming, and product contamination.

2. Maintenance-Free, Non-Lubricated Operation

Lubricated plug valves require continuous maintenance through manual grease injections to keep the plug turning. FlowBiz sleeved plug valves harness the self-lubricating properties of high-grade PTFE. The plug slides cleanly against the smooth sleeve liner, ensuring consistent operational torque and tight sealing capabilities without routine lubrication cycles.

3. Fully Adjustable, Bi-Directional Stem Sealing

Our valves feature a fully adjustable inline and external sealing system. If wear occurs after years of continuous cycling, the top-adjusting bolts can be tightened to drive the plug down into the tapered sleeve. This action instantly restores a bubble-tight seal around the stem and across the ports, reducing maintenance costs and preventing external leakage.

4. Low-Emission Safety Stem Packing

Designed to comply with rigorous modern emissions standards, our stem seal matrix prevents toxic vapors or fluids from weeping into the ambient environment. This protective design shields operators and keeps your facility's utility rooms clean and safe.

Comprehensive Pan-India Sourcing and Logistics Matrix

Operating as a premier manufacturer, exporter, supplier, and trader, FlowBiz Exports Pvt. Ltd. supports industrial engineering project timelines through our agile logistics corridors across India and global export markets. We manage prompt shipments directly to major hubs, including:

• Maharashtra: Pune, Thane, Mumbai, Nashik, Aurangabad, Satara, Sangli, Nagpur, Kolhapur

• Gujarat: Gandhidham, Ahmedabad, Vapi, Valsad, Surat, Kutch, Ankleshwar, Bharuch

• Pan-India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all major industrial zones.

Every single valve lot undergoes strict quality testing at our in-house facilityincluding high-pressure hydrostatic shell validation and pneumatic seat diagnosticsto guarantee excellent performance before field dispatch.

Frequently Asked Questions (FAQs)

Q: Why is a sleeved plug valve preferred over a standard ball valve for water systems carrying suspended solids?

A: Standard ball valves feature hollow internal cavities surrounding the ball. When handling fluids with suspended solids or grit, particulates settle into these dead-zone cavities and compress over time, trapping media, jamming the valve, and tearing up the soft seats. A sleeved plug valve has no internal body cavity; the solid plug continuously sweeps against the internal seating surface, physically wiping particulates away during rotation to prevent clogs or scale accumulation.

Q: What is the recommended step-by-step process for installing a flanged sleeved plug valve?

A: 1. Thoroughly clean the faces of both the valve flanges and the pipeline flanges to remove dirt, scale, or grease.

2. Align the pipeline piping to ensure it sits parallel with the valve face, preventing alignment stresses.

3. Insert a compatible industrial gasket between the sealing faces.

4. Pass high-tensile fasteners through the bolt holes and tighten the nuts progressively in an alternating star-pattern sequence using a torque wrench to ensure uniform gasket compression.

5. Manually cycle the lever to confirm smooth rotation before introducing process flow.

Q: How does the flange-type connection profile enhance field operations?

A: Integrated flanged ends allow the valve to bolt directly onto matching pipe spools. This design distributes physical pipeline bending stresses evenly across the multi-bolt perimeter. This limits the risk of joint distortion and gives technicians a clean way to isolate, unbolt, and maintain downstream assets with minimal facility downtime.

Q: When should an industrial facility consider specifying carbon steel plug valves over cast iron?

A: Cast iron is highly cost-effective for low-pressure water utility loops. However, carbon steel (ASTM A216 WCB) should be specified for high-velocity water distribution lines, high mechanical piping loads, high pressures, or applications that experience sudden thermal spikes. Carbon steel possesses superior tensile strength and impact resistance, protecting your pipeline from accidental pressure shocks.

Q: What is the streamlined process for requesting a technical quotation or ordering bulk allocations from Pune?

A: Engineering teams and project managers can contact our sales and project desk directly with your specific project criteriaincluding nominal sizes ( to 16 inches), fluid velocity, temperature limits, and application parameters. Our technical team will guide you through the product selection matrix, compile a transparent price quotation, and coordinate production to align with your facility's installation timeline.
