Industrial PTFE-Lined Plug Valves: Advanced Chemical Isolation and Material Standards

In high-integrity fluid handling, process lines often transport highly aggressive chemicals, abrasive slurries, and toxic gases. Media such as hot concentrated acids, strong alkalis, chlorinated solvents, and reactive reagents can quickly degrade standard unlined valves. This degradation causes severe pitting, structural thinning, and eventual pressure boundary failure, resulting in hazardous fugitive emissions and expensive plant shutdowns.

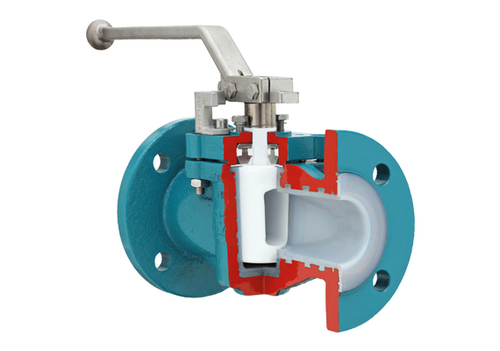

An industrial PTFE-Lined Plug Valve offers a heavy-duty, severe-service solution. Utilizing a quarter-turn tapered plug that rotates inside a fully encapsulated cavity, the design replaces high-wear mechanical seals with a solid, non-reactive barrier. By completely molding a thick layer of premium PTFE (Polytetrafluoroethylene) over all wetted internal surfaces and the plug itself, the underlying metal casting is isolated from the process stream. This configuration provides the mechanical strength of an external cast shell along with the complete chemical inertness of a fluoropolymer matrix.

                      Quarter-Turn Lined Plug Design


     [ Fluid Input ]     | PTFE-Lined Plug |     [ Fluid Output ]
     (Acids/Slurries)        | Rotates 0 to 90 |       (Bubble-Tight Shutoff)

                                        (Full Cavity Enclosure)

                           [ Molded PTFE Body Liner ]

FlowBiz Exports is an elite global fluid-handling brand and a leading PTFE Lined Plug Valve Manufacturer in Rajkot, Gujarat, India. We precision-engineer top-grade, high-integrity lined plug valves designed to deliver bubble-tight isolation, robust cavity sealing, and maintenance-free service across demanding domestic and international processing networks.

Technical Specifications & Configuration Matrix

FlowBiz PTFE-lined plug valves are cast, machined, and tested to meet strict international design and pressure containment codes, ensuring seamless integration into global industrial grids.

Core Engineering Data

Critical Engineering Features & Safety Benefits

1. Superior Chemical Resistance & Low Friction

The thick, molded PTFE lining forms an impenetrable physical barrier that completely isolates aggressive chemicals from the primary metal housing. Because virgin PTFE features a non-reactive molecular structure, it prevents internal corrosion, pitting, and media contamination. Additionally, its inherent low-friction properties allow the plug-shaped disc to rotate smoothly within the body, reducing operating torque and preventing system wear.

2. High-Temperature Performance up to 200C

While standard plastic linings can warp or soften under severe temperature variations, our high-density PTFE lining combined with an SS 304 stainless steel core is engineered to maintain structural stability across steep thermal gradients. This high resilience enables process plants to run volatile, high-temperature reactions up to 200C without risking linear distortion, mechanical failure, or vacuum collapse, ensuring long-term operational durability.

3. Full-Cavity Sealing & True Tight Shut-Off

Unlike ball or butterfly valves that rely on localized perimeter seats, a lined plug valve utilizes a large surface area interface between the plug face and the body liner. This full-cavity compression seal achieves a dependable tight shut-off across both upstream and downstream paths. This robust configuration provides dependable leakproof isolation for hazardous, corrosive, or high-purity processing media.

Strategic System & Industrial Applications

Our standard-compliant, high-temperature lined plug valves are installed across demanding processing sectors to manage aggressive media:

• Chemical Processing & Synthesis Facilities: Regulating the flow of raw chemical feeds, aggressive industrial acids, caustics, and highly reactive fluids.

• Pharmaceutical & Food Processing Operations: Managing pure process runs and clean lines without risking metal leaching or batch contamination.

• Water Treatment & Desalination Infrastructure: Positioned along aggressive chemical dosing paths, neutralizing loops, and filtration backwash headers.

• Petroleum Refineries & Power Plants: Controlling utility lines, sour water networks, and non-compressible hydrocarbon or chemical slurry loops.

• Nuclear Power Facilities: Meeting strict material safety guidelines to ensure reliable, high-purity fluid isolation in critical auxiliary loops.

Pan-India Supply Capabilities & Distribution Footprint

Operating advanced precision-machining fabrication facilities from our primary production hub in Rajkot, Gujarat, FlowBiz manages an expansive logistics, trade, and nationwide export network to supply valves across major industrial zones in India. We support diverse process industries with on-time delivery, personalized technical support, and comprehensive after-sales field care to enhance process reliability and minimize downtime.

Frequently Asked Questions (FAQ)

Q: How do PTFE-lined plug valves enhance safety and reliability in process industries?

A: Standard unlined metallic valves degrade rapidly when exposed to aggressive media, which can cause high-purity batches to oxidize and ruin the process. A PTFE-Lined Plug Valve is recommended when handling highly corrosive liquids, gases, acids, alkalis, or abrasive slurries. The internal fluoropolymer liner completely protects the structural metal frame from chemical attack, ensuring long-term pipeline safety and reducing maintenance costs.

Q: What media portfolios can be successfully managed by these plug valves?

A: Thanks to the combination of a premium PTFE lining and an SS 304 stainless steel core, these valves are highly versatile. They handle water, chemical feeds, industrial solvents, aggressive mineral acids, caustics, and abrasive slurries commonly found in process industries. The robust design prevents corrosion and chemical attacks, ensuring reliable, long-term performance and high process safety.

Q: When should a design engineer select a customized port size instead of a standard valve profile?

A: Customized port sizes are highly recommended when standard commercial dimensions do not align with your existing pipeline footprint or when specific, precise flow rates are crucial for your application. Tailoring the port sizing to match your unique process system requirements helps optimize system flow dynamics, prevents line turbulence, and ensures seamless valve integration during plant retrofits.

Q: What is the detailed ordering workflow for requesting a tailored valve layout from Rajkot?

A: Our engineering team custom-tailors each valve configuration to match your exact pipeline specifications:

1. Technical Specifications Gathering: Sourcing teams provide their operational metricsincluding required port size, chemical media traits, maximum operating temperatures, and preferred connection interfaces (such as flanged, threaded, or socket weld).

2. Precision Engineering Review: The FlowBiz technical team reviews your operational parameters to select the optimal body metallurgy, body finish color (silver or blue), and configuration before manufacturing.

3. Quality Validation & Dispatch: Completed valves undergo thorough pressure and spark testing to ensure leakproof performance before being packed and cleared for nationwide delivery.
