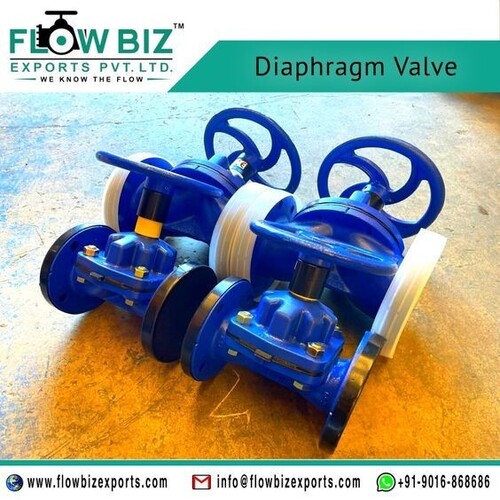

PTFE-Lined Diaphragm Valves: Hermetic Chemical Isolation and Engineering Standards

In high-purity chemical processing, semiconductor fabrication, and harsh industrial fluid transmission, managing the flow of aggressive, toxic, or highly viscous media presents unique engineering challenges. Highly corrosive liquidssuch as concentrated mineral acids, strong alkalis, and reactive slurriesrapidly degrade standard metal-seated valves. This degradation causes severe pitting, uniform corrosion, and leakage across the stem packing, risking fugitive atmospheric emissions and batch cross-contamination.

An industrial PTFE-Lined Diaphragm Valve offers an advanced, severe-service isolation and throttling solution. Unlike conventional valves that rely on dynamic stem packing to contain process fluids, a diaphragm valve utilizes a flexible, multi-layer elastomer and fluoropolymer membrane secured against a central weir. By completely encapsulating the internal body cavity with a heavy layer of premium PTFE (Polytetrafluoroethylene), the process fluid is entirely isolated from the metal bonnet assembly and moving components, ensuring a completely leak-proof and hermetic boundary.

                      Weir-Style Lined Diaphragm Isolation



                         Manual Handwheel Actuator

                                       (Linear Compressional Stem)


                           Flexible PTFE/Elastomer
                            Diaphragm Membrane

                                       (Hermetic Cavity Seal)
         [ Fluid Inflow ]    [ Bubble-Tight Out ]
         (Acids/Slurries)       PTFE-Lined        (Zero Contamination)
                                Body Weir


FlowBiz is an elite global fluid-handling brand and the premier PTFE Lined Diaphragm Valve Manufacturer in India. Operating advanced production centers in Gandhidham, Gujarat, we precision-engineer high-performance, weir-style lined diaphragm valves designed to deliver bubble-tight isolation, zero fugitive emissions, and low maintenance overhead across demanding global utility networks.

Technical Specifications & Compliance Parameters

FlowBiz PTFE-lined diaphragm valves are cast, lined, and verified to satisfy strict international pressure containment guidelines and industrial quality parameters.

Core Product Configuration Matrix

Critical Engineering Features & Safety Benefits

1. Dynamic Hermetic Sealing & Zero Contamination

The primary advantage of the PTFE-lined diaphragm valve is its glandless construction. The flexible diaphragm membrane serves a dual purpose: it acts as the inline dynamic moving seat and forms a static gasket seal around the outer perimeter of the body cavity. This design completely isolates the valves internal bonnet components, stem threads, and compressor from the process medium. This eliminates the need for stem packing sleeves and prevents fugitive emissions, fluid cross-contamination, and internal mechanism clogging.

2. High-Density PTFE Corrosion Resistance

The thick fluoropolymer lining forms an impenetrable physical barrier that completely isolates aggressive chemicals from the underlying structural metal housing. Because virgin PTFE features a non-reactive molecular structure, it prevents internal corrosion and resists the permeation of aggressive fluids. This advanced design allows the valve body to handle volatile chemical lines, demineralized water, and abrasive slurries up to 200C while maintaining its structural safety margins.

3. Streamlined, Low-Turbulence Flow Path

The interior weir geometry provides smooth, gently sloped internal walls covered with non-stick PTFE. This streamlined flow track minimizes line turbulence, prevents fluid shearing, and drastically reduces pressure drop (P) metrics across the valve run. Additionally, the smooth surface prevents sticky chemical media, particulate scale, or viscous slurries from accumulating inside the cavity, making it an ideal choice for clean-in-place (CIP) processing lines.

                       Strategic Fluid Routing



                   Severe Chemical Utility Deployments




 [ Corrosive Acid Loops ]   [ Demineralized Water ]    [ Chemical Slurry Lines ]
 (Prevents Metal Leaching)  (Zero-Contamination Clean) (Smooth, Non-Clog Paths)

Strategic System & Industrial Applications

Our high-temperature, standard-compliant lined diaphragm valves provide dependable manual isolation across critical continuous-process sectors:

• Chemical Processing & Reagent Synthesis: Safely managing raw acid feeds, caustics, pickling fluids, and highly reactive chemical lines.

• Water Treatment & Desalination Infrastructure: Positioned along aggressive chemical dosing paths, resin regeneration circuits, and demineralized water pipelines.

• Petroleum Refineries & Petrochemical Units: Regulating the flow of sour water networks, aggressive chemical wash lines, and non-compressible fluid streams up to 200C.

• Pharmaceutical & Clean-Room Manufacturing: Providing an unlined alternative for pure liquid batches where dynamic packing fragments or metal leaching must be prevented.

• Nuclear Power Facilities: Meeting strict material safety guidelines to ensure durable, manual verification and isolation of corrosive cooling and chemical circuits.

Pan-India Supply Capabilities & Distribution Footprint

Operating precision-machining production centers from our flagship hub in Gandhidham, Gujarat, FlowBiz manages an expansive domestic shipping, technical support, and comprehensive marine export network to supply valves across major industrial corridors and chemical manufacturing zones in India:

• Gujarat Logistics: Gandhidham, Kutch, Ahmedabad, Vapi, Valsad, Surat, Ankleshwar, Bharuch.

• Maharashtra Corridors: Thane, Mumbai, Nashik, Pune, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Central & Southern India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global trade loops.

Frequently Asked Questions (FAQ)

Q: When should an engineer choose a PTFE-lined diaphragm valve over a lined ball or plug valve?

A: The choice is driven by your system's fluid traits and containment guidelines:

• PTFE-Lined Diaphragm Valve: Features a glandless, packless design that completely isolates stem threads from the process medium. It is the preferred choice for handling crystallization-prone fluids, abrasive chemical slurries, or ultra-pure chemical processes where preventing dead pockets, media stagnation, and batch cross-contamination is a priority.

• Lined Ball/Plug Valves: Rely on rotary dynamic seals around the stem and plug perimeter. They are better suited for clear, high-velocity liquid transfers or high-pressure loops requiring standard quarter-turn actuation.

Q: What is the recommended field routine for inspecting and maintaining a manual diaphragm valve?

A: While the interior PTFE liner minimizes overall wear and maintenance frequency, setting a scheduled servicing routine is essential for long-term operational reliability:

1. Visual Checks: Periodically inspect the perimeter interface between the body and the bonnet to confirm there is no dynamic leakage.

2. Line Depressurization: Before opening the valve body for servicing, completely isolate the target pipeline run, vent all internal pressure, and drain any remaining chemical fluids safely.

3. Membrane Inspection: Loosen the bonnet bolts, lift off the bonnet assembly, and inspect the PTFE/elastomer diaphragm face for signs of physical tearing, cracking, or chemical swelling.

4. Fastener Torquing: When replacing a worn diaphragm, tighten the bonnet bolts in a cross-pattern sequence using a torque wrench. This uniform compression prevents localized stress concentrations on the fluoropolymer lining and ensures a leak-proof perimeter seal.

Q: How can an engineering team order a customized port size or custom specifications?

A: Sourcing and project engineering teams can establish a customized production profile to ensure a seamless drop-in fit with their pipeline infrastructure. Simply contact the FlowBiz technical team with your operational requirementsincluding required nominal port diameters, pipeline flange ratings, expected flow velocities, and detailed chemical media profiles. Our engineering division custom-configures the underlying body casting metallurgy, face dimensions, and diaphragm backing materials before manufacturing.

Q: What are the primary benefits of using manual handwheel operation for these valves?

A: Utilizing manual handwheel operation provides three primary process advantages:

• Precise Linear Adjustments: The multi-turn handwheel screw allows for highly accurate linear adjustments, enabling operators to use the valve for precise throttling and flow velocity modulation.

• Simplified Footprint: Manual operation requires no electrical wiring runs, signal conduits, or plant air supply lines, simplifying the tool footprint and cutting automation costs.

• Inherent Intrinsic Safety: Because it operates mechanically without electrical components, a manual valve is inherently safe for installation in explosion-prone zones, hazardous chemical skids, or remote offshore facilities.
